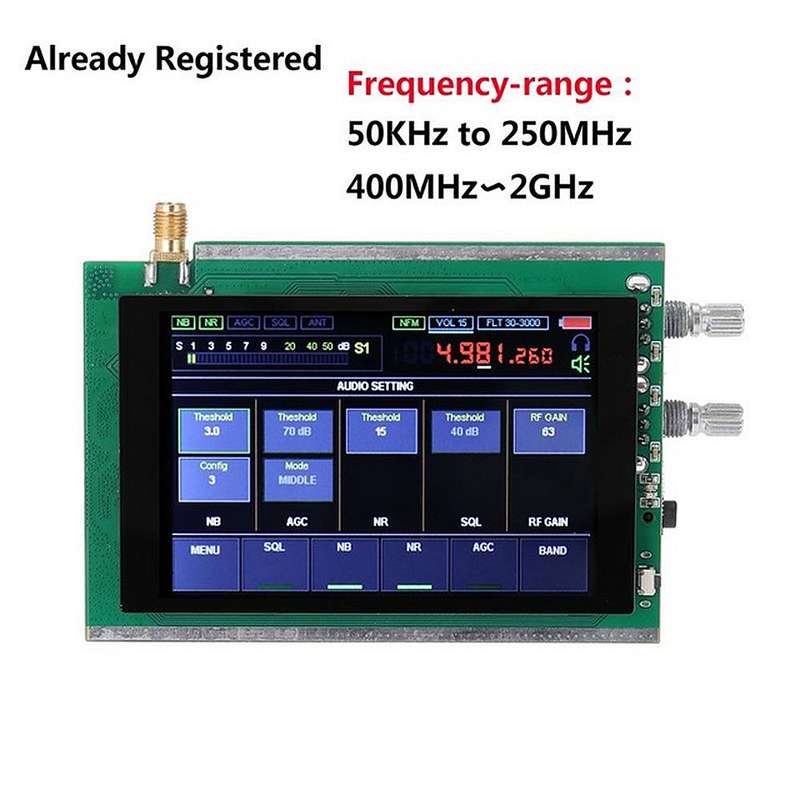

Registered Version 50KHz~250MHz 400MHz2GHz Malachite SDR Radio Malahit Transceiver DSP SDR HAM Re

Features:
- Frequency-range: 50KHz to 250MHz, 400MHz2GHz can up to 2GHz because it had been registered. - With 3.5 inch touching LCD screen. - The radio is built on the principle of SDR - the function is determined by the loaded software. - All types of analog-modulation: AM, SSB, NFM, WFM. - Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, noise blanker, AGC, equalizer. - Use the fully functional chip msi001. - The powerful stm32h743 with clock frequency of 480MHz is applied. - 2 encoders with buttons and touching screen. - 300mA when listening to headphones. - In order to improve HF reception on the telescope antenna, an additional board with a source follower is developed. The board will be built into the standard receiver design. - Connecting to the computer via USB, you can transfer cat, IQ and audio. - 160KHz span, expandable. - Sensitivity - 0.3 v = 10dB at S / w up to 250MHz, no measurement was carried out due to lack of measuring equipment. - Dynamic blocking range is about 85dB due to the characteristics of msi001 chip used. - Backlight control, SMA antenna socket.
Specifications:

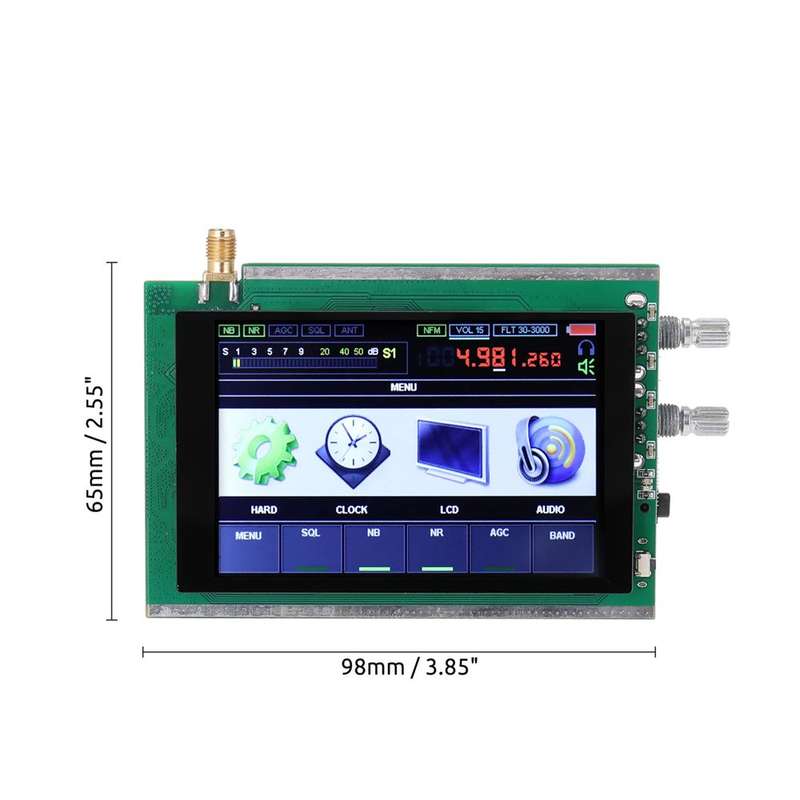

Main material: PCB Color: green+black Frequency-range: 50KHz~250MHz, 400MHz2GHz Screen: 3.5 inch touching LCD screen Item size: 120 * 88 * 39mm / 4.7 * 3.5 * 1.5in Package size: 125 * 90 * 42mm / 4.9 * 3.5 * 1.7in Package weight: 160g / 5.6ounce
Package Incldued:
1 x Registered Version 50KHz~250MHz 400MHz2GHz Malachite SDR Radio Malahit Transceiver
