Relay Contactor 25A | Input 230VAC | Output Single 230VAC or 3 Phase 400VAC

Increase the current load of any of our smart products which include a relay (dry contact) to 25A. Suitable for water pumps (single or three phase) and any requiring a higher load than the OEM unit offers.

Available options:

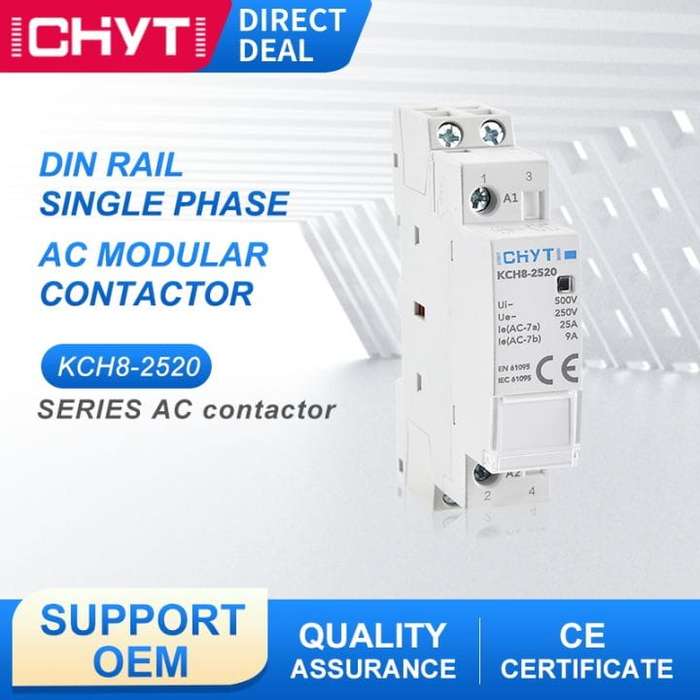

• Single Phase: Input - 230VAC / Output - 230VAC Single Phase, 2x Isolator 25A, NO (Normally Open)

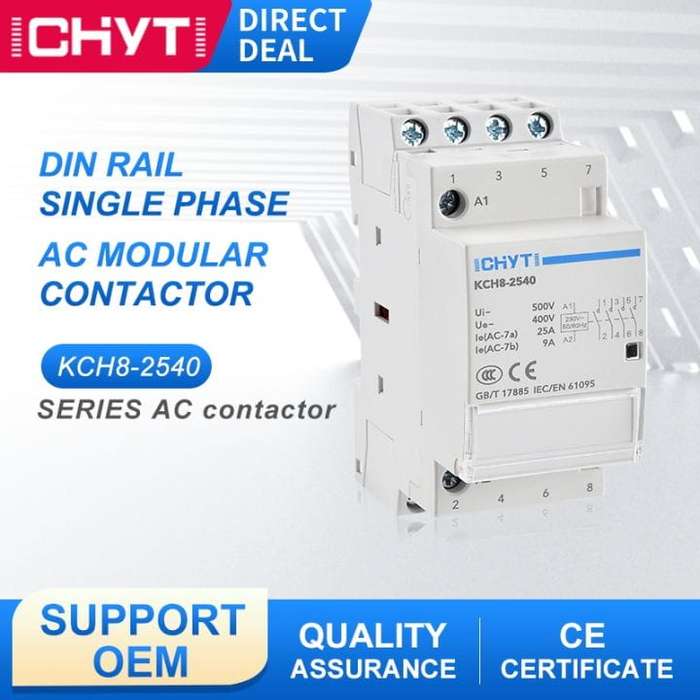

• Three Phase: Input - 230VAC / Output - 400VAC Three Phase, 4x Isolator 25A, NO (Normally Open)

Simply connect the output from any of our smart devices to inputs of the contactor (A & A2). The top connections are Inputs for the 25A max load while the contacts at the bottom are the outputs. The contactors are also isolators meaning the single-phase unit. When 230VAC is applied to the contactor the outputs will close.Specifications Input Working Voltage: 230VACMaximum Output Current: 25ANumber of Output Contacts: 2 x for 1 phase 230VAC / 4 x for 3 phase 400VACDIN Rail MountingWhat's in the Box?

• 1x 25A relay Contactor
