Relay Contactor 25A | Input 230VAC | Output Single 230VAC or 3 Phase 400VAC
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 2 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Customer ratings:
Product code
3604240
Bob Shop ID
612305315
Increase the current load of any of our smart products which include a relay (dry contact) to 25A. Suitable for water pumps (single or three phase) and any requiring a higher load than the OEM unit offers.

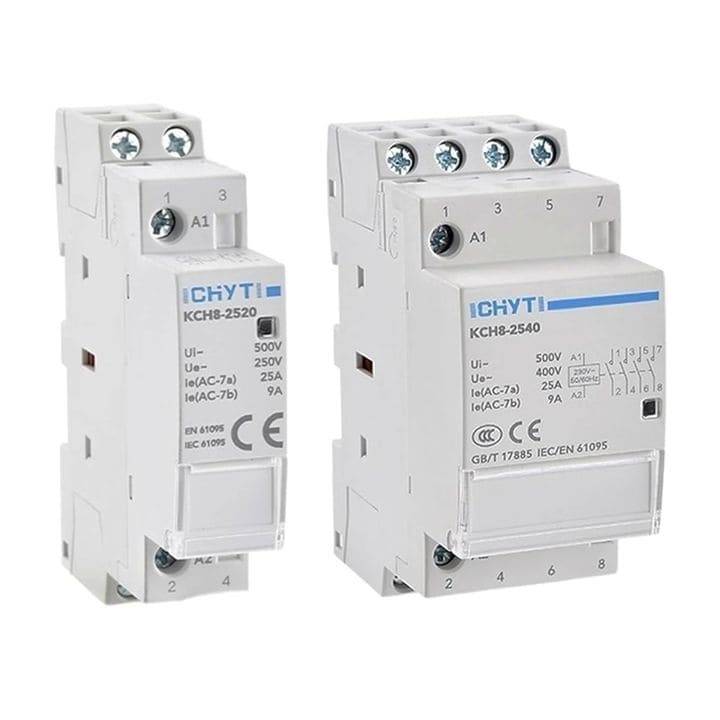

Available options:

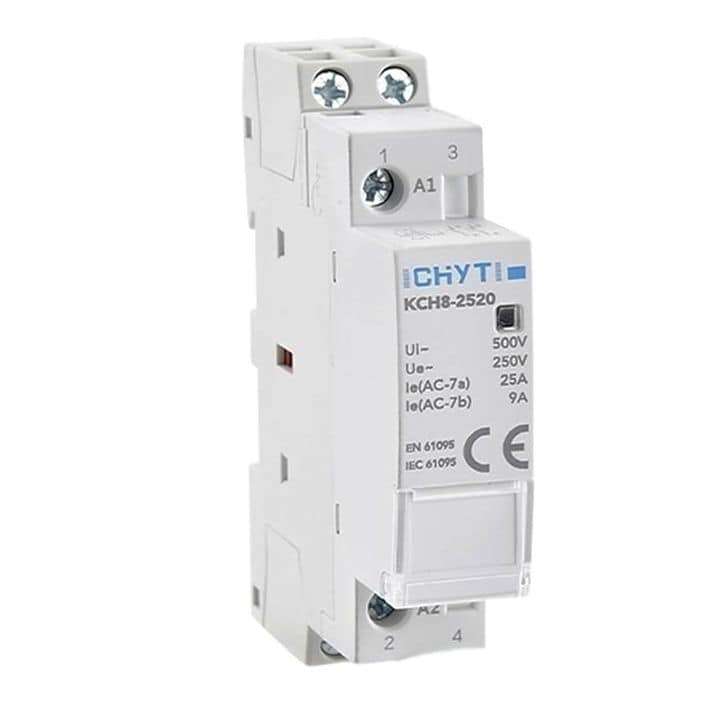

- Single Phase: Input - 230VAC / Output - 230VAC Single Phase, 2x Isolator 25A, NO (Normally Open)

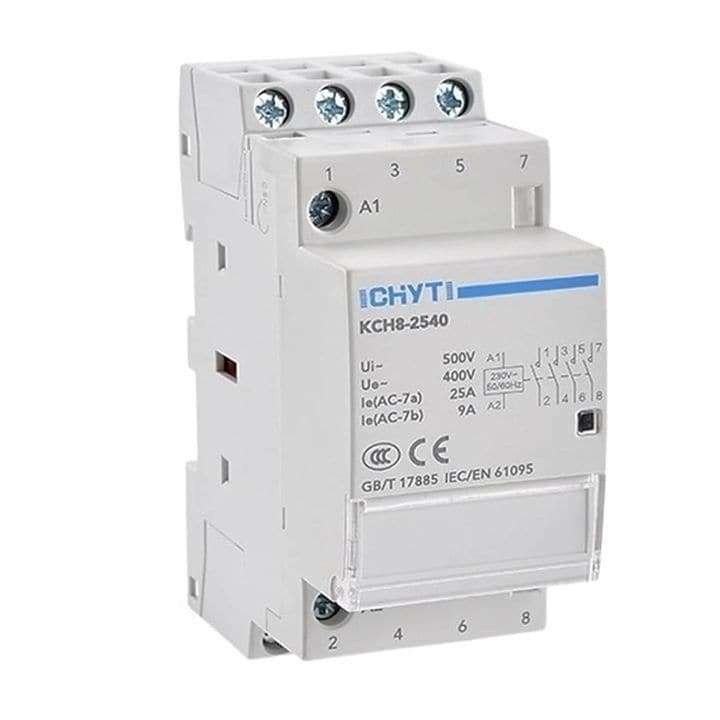

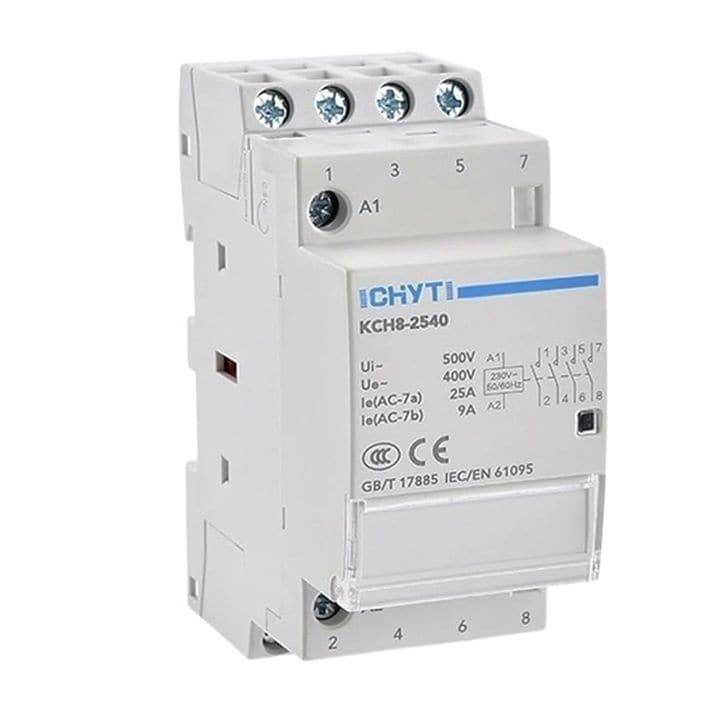

- Three Phase: Input - 230VAC / Output - 400VAC Three Phase, 4x Isolator 25A, NO (Normally Open)
Simply connect the output from any of our smart devices to the inputs of the contactor (A & A2). The top connections are Inputs for the 25A max load while the contacts at the bottom are the outputs. The contactors are also isolators meaning the single-phase unit. When 230VAC is applied to the contactor the outputs will close.
Specifications
Input Working Voltage: 230VAC
Maximum Output Current: 25A
Number of Output Contacts: 2 x for 1 phase 230VAC / 4 x for 3 phase 400VAC
DIN Rail Mounting
What is in the Box?
- 1x 25A relay Contactor
