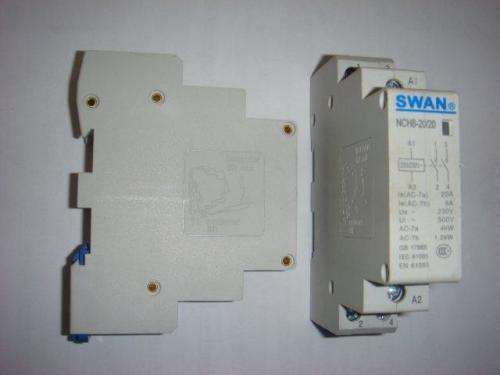

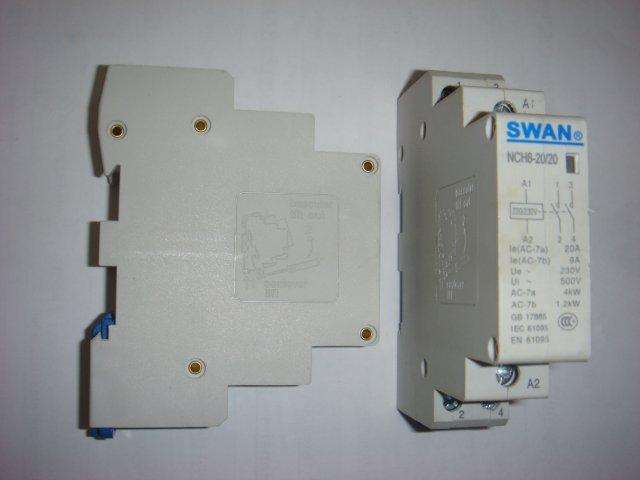

Relay to use with MTD2 or MTD 8 (to control your geyser)

Application

The modular contactor is suitable for use in power distribution boards controlling lights, water heaters, air conditioners etc.  The main function is to switch AC1 loads frequently at 50/60Hz. The 2 pole unit is only an 18mm module and it's compact design allows for installation in distribution boards

Main Technical data

Model JVC-20

Pole 2

Utilization category AC1, AC7

Ui (v) 500

Ue (v~) 230

Rated (A) 20

Coil voltage 230

Interval time(s) 10

Controlled power (kW) 4

This listing is for the relay ONLY at R200ea

Use this relay with 24 Hour Analogue Industrial Timer MTD2 or Digital Industrial Timer MTD8 to control your geyser

see my other listings for:

• MTD2 @ R145ea, or
• MTD8 @ R185ea

Combined postage for MTD2 or MTD8 timers + relay = R25

The picture for this relay will be loaded later

Relay can be clipped into the DB board (next to the MTD2 or MTD8 timers)

Up to 6 pcs can be posted at the 1kg rates given below

Buy 6pcs and get FREE postage!
