BUILT FOR ROUGH SEA'S & CAN WITHSTAND STORMY WAVES.
Main Functions and Characteristics
NB: Delivery within Cape Town R50. Elsewhere in South Africa by insured parcel delivery R250,00
1. The hull of the boat is made of high quality engineering plastics. The hull
is handsome and strong by injection molding.
2. Adopting the structure of catamaran makes bait boat can sail smoothly,
which has strong anti-wave property and large payload. It is fit for
dropping and releasing hooks when fishing on sea.
3. It can release two hooks at a time. The two bait cabins can be used for
casting baits singly or together.
4. Hermetic rubber strips are fixed on each hatch cover of the hull, which
makes it keep an excellent waterproof property.
5. Power section adopts double 540 motors and gear group deceleration.
Comparing with the motor direct driving propeller, it has highly enhanced
efficiency. Equipping with two storage batteries,it prolongs sailing
distance.
6. Equipped with directing light,it is convenient for operation at night.
7. Stepless speed change operation of motors realizes the actions of sailing
forward and backward,turning left and right and spot turning.
8. Using ISM wave band 433MHz proportion remote control equipment
makes the boat to equip a strong anti-interference ability and much
farther remote control distance. Each boat has a unique ID code which
makes it possible for several boats being used in the same water area
simultaneously.
9. Use dot matrix LCD that can show the landform of water bottom.
Main Technical Parameters
Boat Dimension: 800mm×570mm×280mm
Boat Weight: 12.5kg (include battery)
Remote Control Dimension: 185mm×190mm×55mm
Remote Control Power Supply: AA battery ×4
Remote Control Monitor: FSTN 128×64 pixel 59mm×36mm
Hull type: Double hulls; Double propellers
Power System: Double 540hp motors. Gear decelerate machine
Dynamic Power Supply: 6v/10Ah hermetic and rechargeable battery ×2
Continued Working Time: 2.5hrs
Speed: 1.2m/sec
Max bait capacity: 2.5kgX2
Sonar Frequency: 200 KHz
Sonar Beam Angle: 20ã
Ultrasonic detecting water depth: 0.6~32m
Detecting water depth resolution: 0.1m
Low power alarm function: Yes
Display function underwater: Yes
Part magnifier function underwater: Yes
Water temperature detecting rage: 0~50ã
Unit conversion: meter/ft; centigrade/Fahrenheit
Remote control frequency: 433MHz
Remote control channels: 6
Operation Range: Over 500m

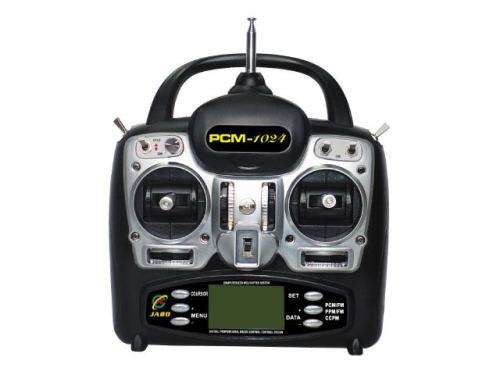

Remote Controller

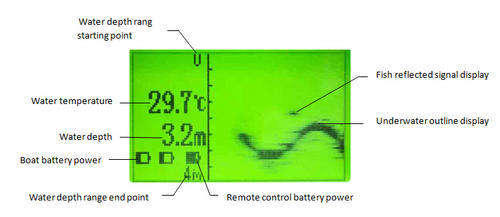

1. Adopting 128*64 LCD dot matrix displayer,it can show the contour of
water bottom.
2. Water detection range is from 1 meter to 32 meters,and resolution ratio
is 0.1 meter.
3. Sonar detection frequency:200KHz
4. Detection range of water temperature is from zero to 50m
5. User can define measurement unit, meter or foot, Celsius degree or
Fahrenheit degree.
6. Part enlargement function of water bottom is convenient for observing
details.
7. Electric quantity display of boat dynamic battery and warning function of
lower electricity.
8. The remote controller use 4 AA batteries.
9. The remote control distance is 500 meters.
10. 16bit detection ID
11. User can choose 6 channels.
12. Remote control radio frequency is 433MHz.
13. Radio frequency power:15dbw / Receiving sensitivity:-110dbm
14. Modulation mode:FSK
