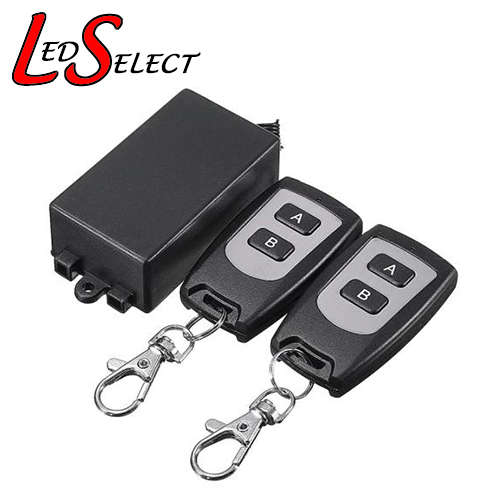

Remote Control Relay Switch 1 channel AC 220V & 2 Remote **IN STOCK**

Remote Control Relay Switch 1 channel & 2 Remote:

Specifications:

Input Voltage: 220V
Relay Output Voltage + Current: 250V AC 10A (30V DC 10A)
Working Frequency: 315MHZ
Receiver Sensitivity: -105Db
Working Temperature: -10 - +60 Degree
Output Way: Jog .Inter-lock .Self -lock
Code Type: Learning code
Circuit Board Dimension: 54 x 31 x 18mm (L x W x H)
Shell Dimension: 65 38 22mm(L x W x H)

Introduction:

Replace RF garage door remotes or other electrical controllers with this code learning programmable universal remote control

Uses:

Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sun roofs, etc

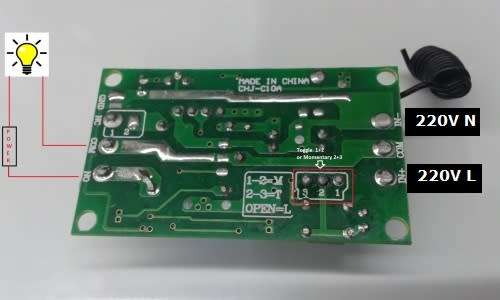

Working/Output Way:

Jog: Press one button is working /ON. Loosen your finger on the same button is stop/OFF. One channel switch (receiver) need one buttons remote control (transmitter)
Self -lock: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch (receiver) need one buttons remote control (transmitter)
Inter-lock: Press one button is working/ON, press another button is stop/OFF. One channel switch (receiver) need 2 buttons remote control (transmitter)
