Remote Control Relay Switch 1 channel DC 12V & 1 Remote **IN STOCK**

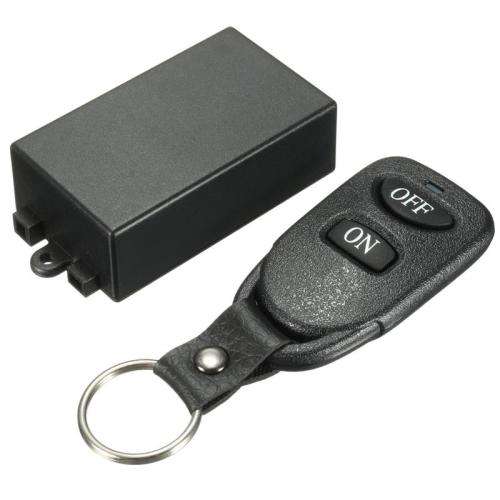

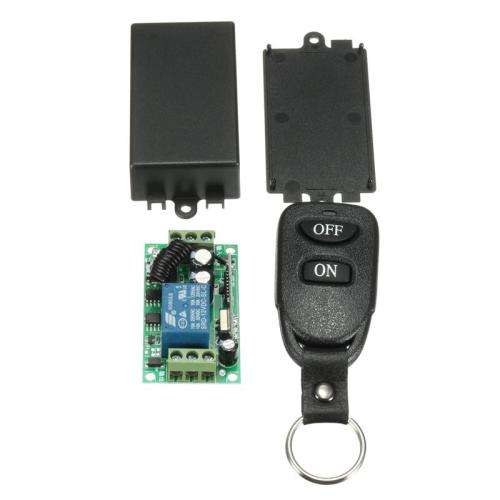

Remote Control Relay Switch 1 channel DC 12V & 1 Remote:

Introduction:

Replace RF garage door remotes or other electrical controllers with this code learning programmable universal remote control.

Uses:

Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sun roofs, etc

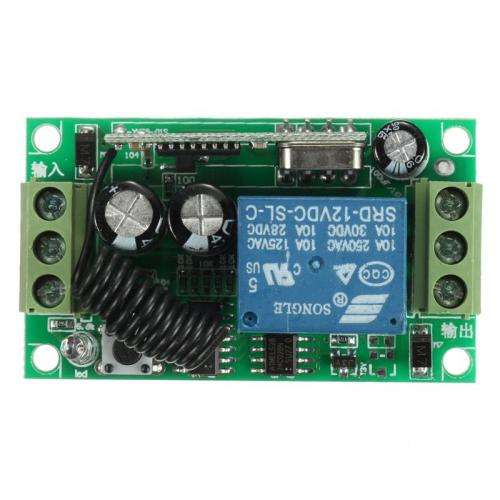

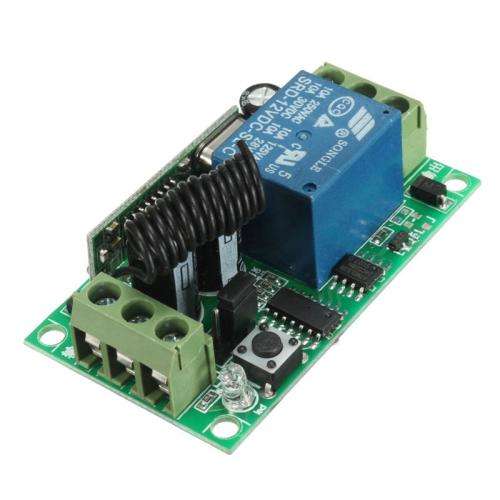

Receiver Specifications:

Channels: 1
Working Voltage: 12V DC
Dual Mode: Momentary/toggle
Power Consumption: <10mA
Output Current: <10A
Sensitivity: ≥-95dBm
Frequency: 315MHz
Dimension: 65 x 38 x 22mm

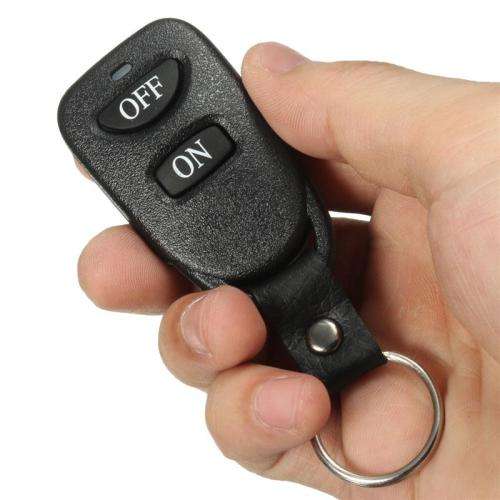

Remote Control Specifications:

Voltage: 6V DC
Frequency: 315MHz
Range: 50-100 meters (Open Space)
Current: < 15mA
Shock Resistance: 4.7
Size: 62 x 34 x 10mm
Bottom: ON/OFF

Learning Method:

1.After power on, the indicator light is always on. Then, you press the learning button for 2 or 3 seconds, and the indicator light will power off.
2.Release the learning button, and press the any key of remote control.
3. After the indicator light flashes 5 times, it shows that you have successfully set the code.

Remove Method:

Press the learning button about 8 seconds, the indicator light returns to being powered on showing the learning code has been removed.

Functions:

Mode 1: Set Jumper on pins 2+3 = Press on/off switch once to turn on connected appliance and again to switch it off.

Mode 2: Set Jumper on pins 1+2 = Keep in the on/off switch to turn on connected appliance and let go of switch to turn it off.
