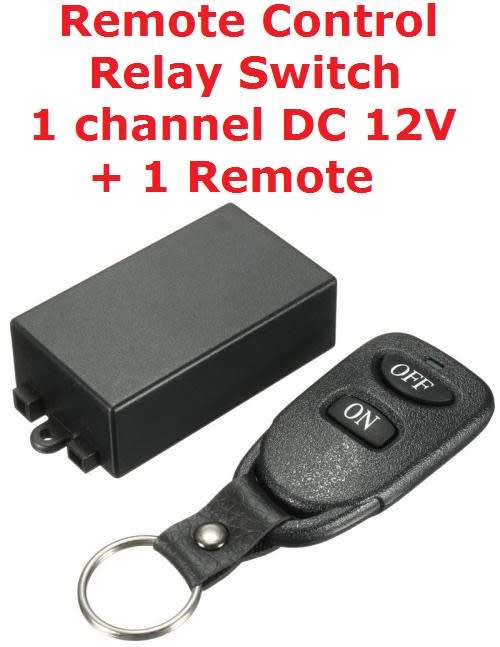

Remote Control Relay Switch 1 channel DC 12V & 1 Remote:
Introduction:
Replace RF garage door remotes or other electrical controllers with this code learning programmable universal remote control
Uses:
Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sun roofs, etc
Receiver Specifications:
Channels: 1
Working Voltage: 12V DC
Dual Mode: Momentary/toggle
Power Consumption: <10mA
Output Current: <10A
Sensitivity: ≥-95dBm
Frequency: 315MHz
Dimension: 65 x 38 x 22mm
Remote Control Specifications:
Voltage: 6V DC
Frequency: 315MHz
Range: 50-100 meters (Open Space)
Current: < 15mA
Shock Resistance: 4.7
Size: 62 x 34 x 10mm
Bottom: ON/OFF
Learning Method:
1.After power on, the indicator light is always on. Then, you press the learning button for 2 or 3 seconds, and the indicator light will power off
2.Release the learning button, and press the any key of remote control
3. After the indicator light flashes 5 times, it shows that you have successfully set the code
Remove Method:
Press the learning button about 8 seconds, the indicator light returns to being powered on showing the learning code has been removed
Functions:
Mode 1: Set Jumper on pins 2+3 = Press on/off switch once to turn on connected appliance and again to switch it off
Mode 2: Set Jumper on pins 1+2 = Keep in the on/off switch to turn on connected appliance and let go of switch to turn it off
