NB! Very important to read this before you buy!
Because of the high turnover of this product, please use the Q&A to make sure this product is still available before you buy.
Please note this is a self-build kit. It consists of full instructions and all the electronic components to build this remote control. You'll need to solder the components together. Cell phone not included.
Turn equipment ON and OFF from a random place via a cellular phone, that you specially reserved to use with this kit.
Applications: Single relay output turns on the lights or the heating, opens your gate, controls animal feeders, make believe you are at home, activate a car alarm, etc.
It requires a cellular phone to receive all its activating incoming calls. It can not receive phone calls directly. Ring detection is used in the circuit to avoid phone charges. No need to open or modify your cellular or connect it with other devices. The set is light activated. When the phone rings the remote device pick up the light of the phone and the circuit is activated. Compatible with most cellular phones.
Specifications: Dual operation mode: toggle ON/OFF or ON with auto turn-off timer settings: 0.5s, 2s, 30s, 1 min, 5 min, 15 min, 30 min and 1 hour. Single relay output: COM, NO/NC 3A Power supply: 12Vdc / 100mA
Dimensions: 101 x 42 x 23mm

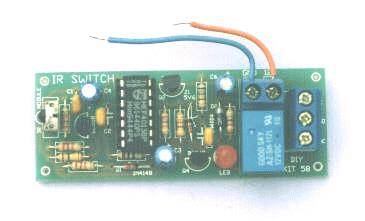

This picture is of a unit already assembled.
