Remote controlled 4 x power switch - include 2 remote controllers
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

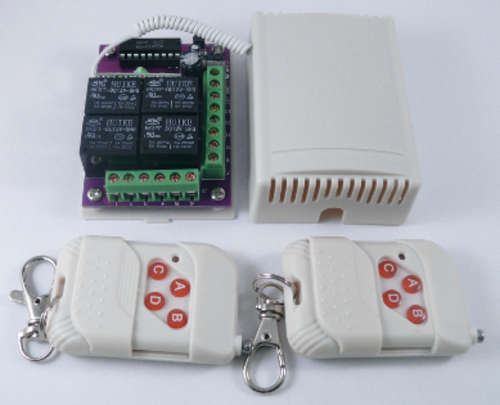

This unit contains 4 relays (handle big loads 250V 10A) and comes with 2 remote controllers to switch lights, gates, appliances etc. on or off remotly. If you want to switch things on or off remotly (up to 100m away) this unit will do the job.
The application is endless and are currently used on motor gates, outside and indoor lights, electric fences, motors, water irrigation and hundreds of other applications.
2 Modes:
Self lock - If you press remote button A , the receiver relay goes on and stay on. Press button A again the receiver relay goes off and stay off, the same for relay B/C/D.
Non lock mode -Press the remote button A, the receiver relay goes on and stays on untill you release button A. Once you release button A the relay goes off, the same for relay B/C/D.
1.Working current : 8mA
2.Working voltage : DC12V
3.Operating Frequency: 266-433MHZ
4.Receiver sensitivity : -95db
5. Relay maximum rating 250V 10A
6. Both N/O and N/C are available on wire terminal blocks.
