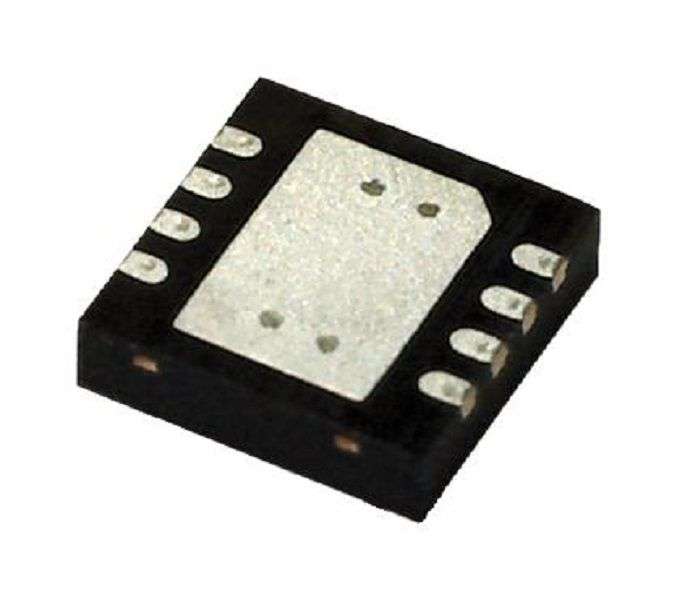

Renesas (AT45DB161E-MHF-T) Flash Memory, DataFlash, Serial NOR, 16Mbit

Flash Memory, DataFlash, Serial NOR, 16Mbit, 4096 Pages x 528Byte, SPI, UDFN-8Product OverviewThe Adesto® AT45DB161E is a 2.3V or 2.5V minimum, serial-interface sequentialaccess Flash memory ideally suited for a wide variety of digital voice, image,program code, and data storage applications. The AT45DB161E also supports theRapidS serial interface for applications requiring very high speed operation.Its 17,301,504 bits of memory are organized as 4,096 pages of 512 bytes or 528bytes each. In addition to the main memory, the AT45DB161E also contains twoSRAM buffers of 512/528 bytes each. The buffers allow receiving of data while apage in the main memory is being reprogrammed. Interleaving between both bufferscan dramatically increase a system's ability to write a continuous data stream.In addition, the SRAM buffers can be used as additional system scratch padmemory, and E2 PROM emulation (bit or byte alterability) can be easily handledwith a self-contained three step read-modify-write operationSerial Peripheral Interface (SPI) compatibleContinuous read capability through entire arrayUser configurable page sizeTwo fully independent SRAM data buffers (512/528 bytes)Flexible programming optionsFlexible erase optionsProgram and Erase Suspend/ResumeAdvanced hardware and software data protection features128byte, One-Time Programmable (OTP) Security RegisterHardware and software controlled reset optionsProduct InformationFlash Memory Type: Serial NORMemory Size: 16MbitFlash Memory Configuration: 4096 Pages x 528ByteIC Interface Type: SPIMemory Case Style: UDFNNo. of Pins: 8PinsClock Frequency: 85MHzAccess Time: -Supply Voltage Min: 2.3VSupply Voltage Max: 3.6VOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: 2.3V-3.6V Serial NOR DataFlash MemoriesMSL: MSL 1 - Unlimited
