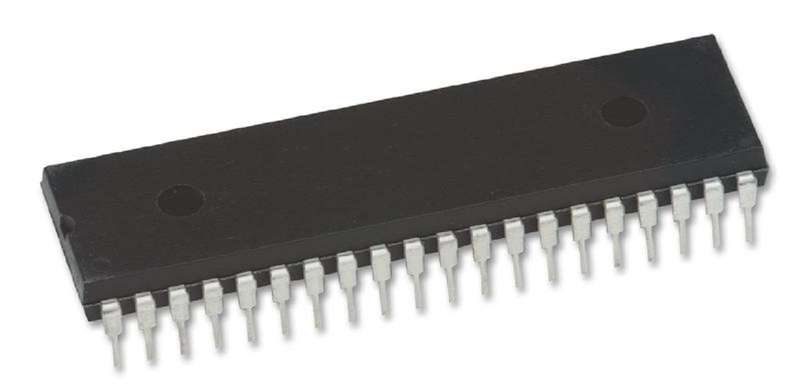

Renesas (ICM7211AMIPLZ) Display Driver, LCD 4 Digit, 7 Segments

Product OverviewThe ICM7211AMIPLZ is a 4-digit LCD Display Driver. The ICM7211AM device is anon-multiplexed four-digit seven-segment CMOS LCD display decoder-driver. Thisdevice is configured to drive conventional LCD displays by providing a completeRC oscillator, divider chain, backplane driver and 28 segment outputs. It alsohas a microprocessor compatible input configuration, which provides data inputlatches and Digit Address latches under control of high-speed Chip Selectinputs. These devices simplify the task of implementing a cost-effectivealphanumeric seven-segment display for microprocessor systems, without requiringextensive ROM or CPU time for decoding and display updating. The ICM7211AMprovides the "Code B" output code, i.e., 0-9, dash, E, H, L, P, blank, but willcorrectly decode true BCD to seven-segment decimal outputs. Provides data anddigit address latches controlled chip select inputs to provide a direct highspeed processor interface.Four digit non-multiplexed 7 segment LCD display outputs with backplane driverComplete on-board RC oscillator to generate backplane frequencyDecodes binary to code B (0-9, Dash, E, H, L, P, blank)Product InformationNo. of Digits: 4No. of Segments: 7Driver Case Style: DIPNo. of Pins: 40PinsSupply Voltage Min: 3VSupply Voltage Max: 6VInterface Type: Non MultiplexedOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -MSL: -
