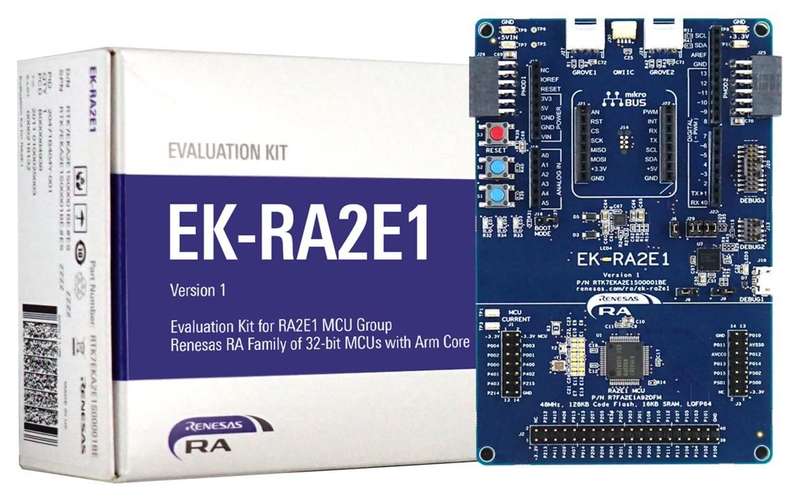

Renesas (RTK7EKA2E1S00001BE) Eval Kit, RA2E1, 32bit ARM Cortex-M23 MCU

Product InformationSilicon Manufacturer: RenesasNo. of Bits: 32bitSilicon Family Name: -Core Architecture: ARMCore Sub-Architecture: Cortex-M23Silicon Core Number: RA2E1Kit Contents: Evaluation Kit RA2E1Product Range: RA Family, RA2 Series, RA2E1 Group MicrocontrollersProduct OverviewEvaluation kit for RA2E1 microcontroller group enables users to seamlesslyevaluate the features of the RA2E1 MCU group and develop embedded systemsapplications using Flexible Software Package (FSP) and e2 studio IDE. The userscan utilize rich on-board features along with their choice of popular ecosystemsadd-ons to bring their big ideas to life. It features two 5V input sources suchas USB (debug) and external power supply (using surface mount clamp test pointsand power input vias). The board has three user LEDs (red, blue, green), powerLED (white) indicating availability of regulated power, debug LED (yellow)indicating the debug connection, two user buttons and one reset button.R7FA2E1A92DFM MCU (referred to as RA MCU) with 48MHz, Arm® Cortex®-M23 coreNative pin access through 1 x 40-pin and 2 x 14-pin male headersMCU current measurement points for precision current consumption measurementMultiple clock sources3 debug modes (debug on-board (SWD), debug in (ETM, SWD, and JTAG), debug out(SWD))2 Seeed Grove® system (I2C/analogue) connectors, SparkFun® Qwiic® connector2 Digilent Pmod (SPI and UART) connectors, Arduino (Uno R3) connectorMikroElektronika mikroBUS connectorMCU boot configuration jumperBoard dimension is 80 mm (width) x 120 mm (length)
