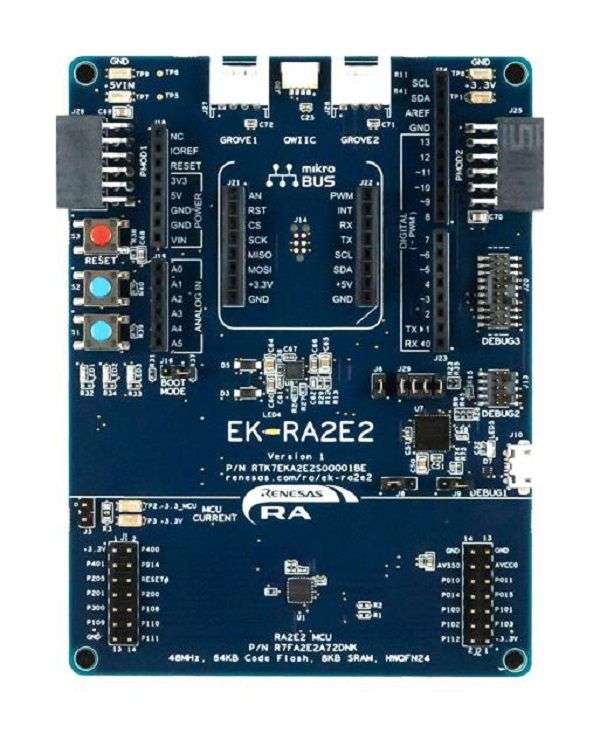

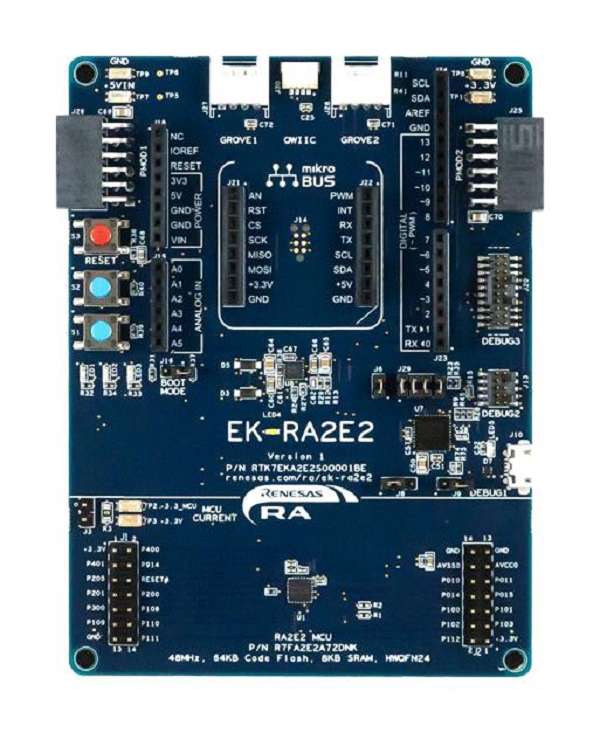

Renesas (RTK7EKA2E2S00001BE) Evaluation Kit For RA2E2 MCU Group

Product OverviewEvaluation kit for RA2E2 MCU group. The EK-RA2E2 evaluation kit enables users toeffortlessly evaluate the features of the RA2E2 MCU group and develop embeddedsystems applications using Renesas' Flexible Software Package (FSP) and e2studio IDE. Utilize rich on-board features along with users choice of popularecosystem add-ons to bring big ideas to life. The EK-RA2E2 kit meets EMC/EMIstandards and UL 94V-0 safety standards. Supports five most popular ecosystemexpansions are MikroElektronika mikroBUS connector, SparkFun® Qwiic® connector,two SeeedGrove® system (I2C and analogue) connectors, two Digilent Pmod (SPIand UART) connectors and Arduino (Uno R3) connector.R7FA2E2A72DNK MCU (referred to as RA MCU) with 48MHz, Arm® Cortex®-M23 coreMultiple 5V input sources (USB (debug), external power supply)Debug on-board (SWD), debug in (ETM, SWD and JTAG), debug out (SWD)Three user LEDs (red, blue, green), power LED (white) indicating availability ofregulated powerDebug LED (yellow) indicating the debug connectionTwo user buttons and one reset buttonMCU boot configurationBoard dimension is 80mm (width) x 107mm (length)
