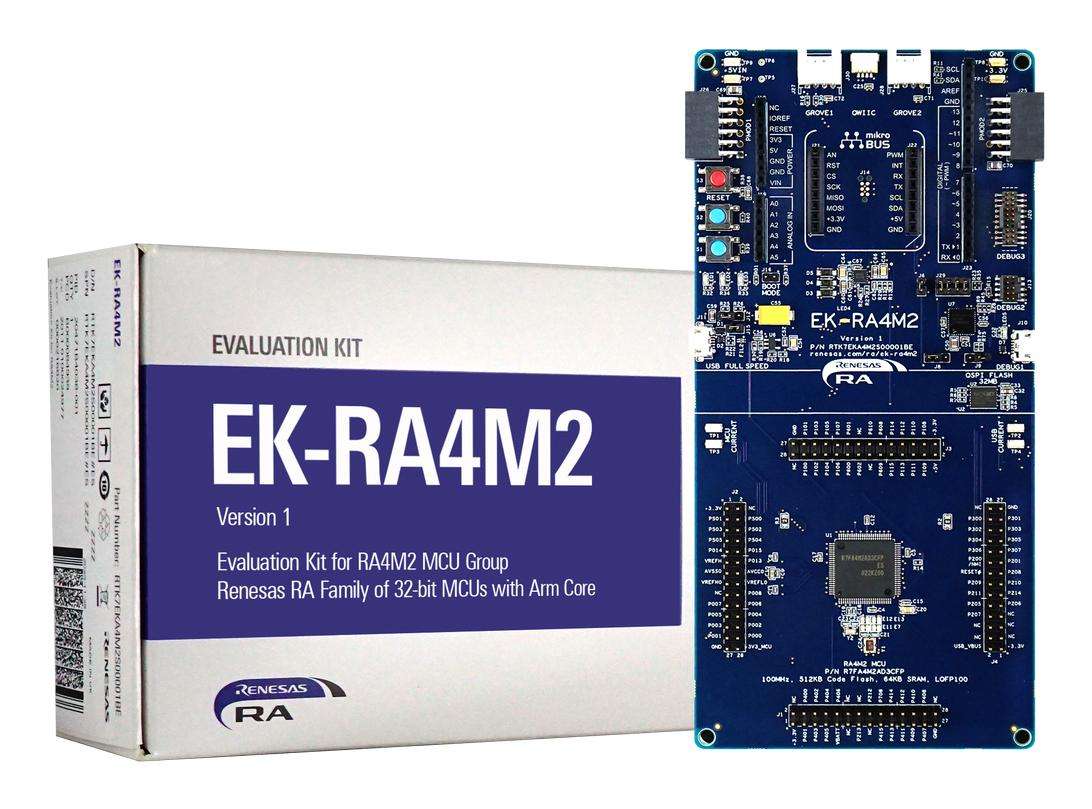

Renesas (RTK7EKA4M2S00001BE) Evaluation Kit, 32bit ARM Cortex-M33 MCU

Product InformationSilicon Manufacturer: RenesasNo. of Bits: 32bitSilicon Family Name: -Core Architecture: ARMCore Sub-Architecture: Cortex-M33Silicon Core Number: RA4M2Kit Contents: Evaluation Kit RA4M2Product Range: RA Family, RA4 Series, RA4M2 Group MicrocontrollersProduct OverviewEvaluation kit for RA4M2 microcontroller group enables users to seamlesslyevaluate the features of the RA4M2 MCU group and develop embedded systemsapplications using Flexible Software Package (FSP) and e2 studio IDE. The userscan utilize rich on-board features along with their choice of popular ecosystemsadd-ons to bring their big ideas to life. It features three 5 V input sourcessuch as USB (debug, full speed) and external power supply (using surface mountclamp test points and power input vias). The board has three user LEDs (red,blue, green), power LED (white) indicating availability of regulated power,debug LED (yellow) indicating the debug connection, two user buttons and onereset button.R7FA4M2AD3CFP MCU (referred to as RA MCU) with 100 MHz, Arm® Cortex®-M33 coreNative pin access through 4 x 28-pin male headersMCU current measurement points for precision current consumption measurementUSB full speed host and device (micro AB connector)3 debug modes (debug on-board (SWD), debug in (ETM, SWD, and JTAG), debug out(SWD))2 Seeed Grove® system (I2C/analogue) connectors, SparkFun® Qwiic® connector2 Digilent Pmod (SPI and UART) connectors, Arduino (Uno R3) connectorMikroElektronika mikroBUS connectorMCU boot configuration jumperEK-RA4M2 board dimension is 80 mm (width) x 170 mm (length)
