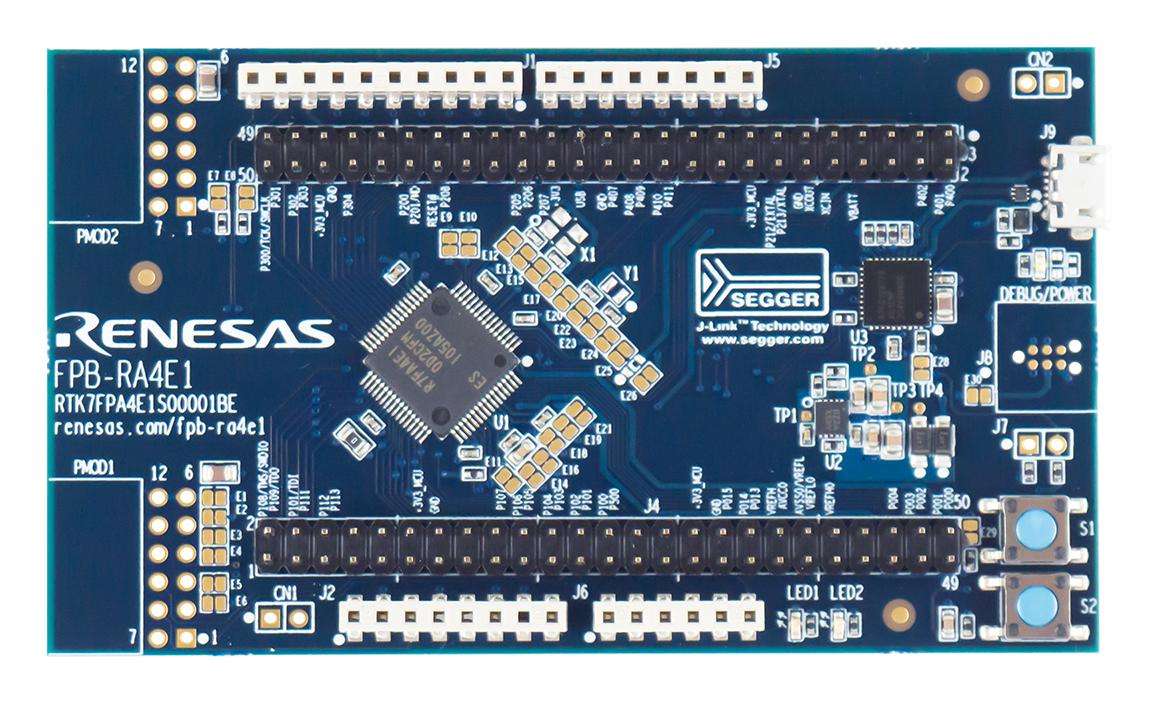

Renesas (RTK7FPA4E1S00001BE) Evaluation Board, 32bit ARM Cortex-M33 MCU

Product Information:Silicon Manufacturer: RenesasNo. of Bits: 32bitSilicon Family Name: RACore Architecture: ARMCore Sub-Architecture: Cortex-M33Silicon Core Number: R7FA4E10D2CFMKit Contents: Eval Board R7FA4E10D2CFM, Printed Quick Start GuideProduct Range: -Product OverviewRA4E1 fast prototyping board comes equipped with a R7FA4E10D2CFM microcontrollerand is an evaluation board specialized for prototype development for a varietyof applications. It has a built-in SEGGER J-Link emulator circuit so users canwrite/debug programs without additional tools. In addition, with Arduino Uno andPmod interfaces included standard and through-hole access to all pins of themicrocontroller and so on, it has high expandability. Sample software isavailable to demonstrate the functionality of the RA4E1 MCU and for connectingbetween the RA4E1 fast prototyping board and various wireless modules or varioussensor modules. The FPB-RA4E1 fast prototyping board provides an entry point forevaluation, prototyping and development with the RA4E1 MCU. Moreover, since thisboard incorporates an emulator circuit, users can use it for designing your ownapplications without needing to make further investments in tools.Equipped with an RA4E1 32bit microcontroller (64-pin, ROM: 512KB, RAM: 128KB)No additional tools required for program debugging/writing with built-in SEGGERJ-Link emulatorThrough-holes with access to all of the pins of the microcontrollerArduino Uno and Pmod interfaces come standardSupport for various RA4E1 software and toolsBoard size is 55mm × 95mm and thickness is 1.6mmPower supply voltage of 3.3V to 5.5V, MCU operation voltage range from 1.6V to5.5VReset switch x 1, user switch x 1Power indicator: green x 1*1, user: green x 2, debug/power: orange x 1Two Digilent Pmod (SPI, UART) connectors (not fitted), Arduino (Uno R3)connectors
