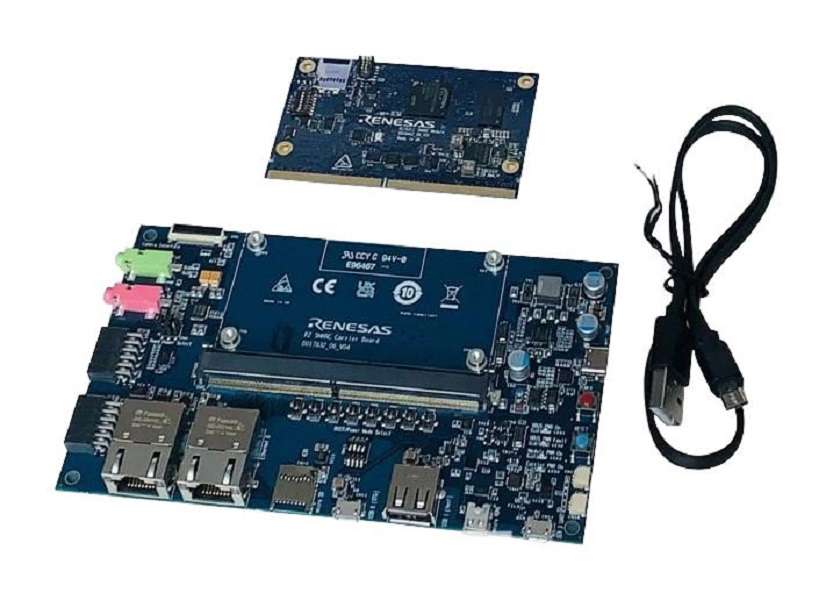

Renesas (RTK9744C22S01000BE) Evaluation Board,32 / 64bit, ARM, Cortex-A55

Product InformationSilicon Manufacturer: RenesasNo. of Bits: 32 / 64bitSilicon Family Name: RZCore Architecture: ARMCore Sub-Architecture: Cortex-A55, Cortex-M33Silicon Core Number: R9A07G044C22GBGKit Contents: Module Board (SOM) R9A07G044C22GBG and Carrier BoardProduct Range: -Product OverviewEvaluation board kit is ideal for evaluating RZ/G2LC. It consists of a moduleboard (SOM) and a carrier board. The carrier board can be commonly used withRZ/G2L, RZ/G2UL and RZ/V2L modules (SOM) prepared according to the SMARC v2.1standard. This allows to experience seamless and flexible evaluation betweenthese devices.Cortex-A55 dual, Cortex-M33, non-secureModule board function ( 1GB DDR4 SDRAM, 512Mb QSPI flash memory, 64GB eMMCmemory)The microSD card slot is implemented and used as an eSD for boot5-output clock oscillator "5P35023" implemented and PMIC power supply"RAA215300" implementedFFC/FPC connector is mounted as standard for connection to serial interface forcamera moduleMicro-HDMI connector via DSI/HDMI conversion MOD mounted as std for connectionto serial interfaceMicro-AB receptacle, A receptacle are respectively mounted as std for connectionto USB interfaceRJ45 connector is mounted as standard for software development and evaluationusing EthernetCAN connector is implemented for connection to CAN-Bus interfaceMicroSD card slot and 2 sockets for PMOD are implemented as an interface forRZ/G2L peripheral funts
