Renesas (RYZ012A100FZ00#BD0) Bluetooth Module, BLE 5.0, 2 Mbps, -93 dbm

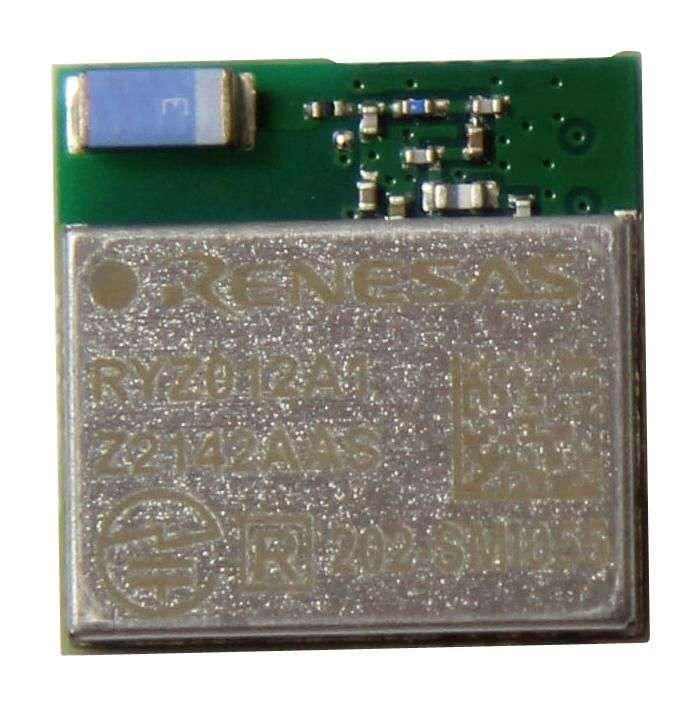

Bluetooth Module, BLE 5.0, 2 Mbps, -93 dbm, 1.8 V to 3.6 V Supply, -40 °C to 85°CProduct OverviewRYZ012A100FZ00#BD0 is a RYZ012A module with internal antenna. RYZ012 is a highlyintegrated multi-standard wireless communication module that provides aqualified solution for BLE 5 Bluetooth® 5 Low Energy (LE) and several IEEE802.15.4 based communication standards. The integrated processor runs thenetwork stack. The network stacks are executed inside the module, so there is noneed for external stack operation.Bluetooth LE/802.15.4/2.4-GHz RF transceiver embeddedBluetooth 5 compliant, 1Mbps, 2Mbps, long range 125Kbps and 500kbpsIEEE802.15.4 compliant, 250kbps2.4GHz proprietary 1Mbps/2Mbps/250kbps/500kbps mode with adaptive frequencyhopping feature supportTx output power: up to +10dBmSingle-pin antenna interfaceRSSI monitoring with ±1dB resolutionAuto acknowledgment, retransmission and flow controlProduct InformationBluetooth Version: Bluetooth LE 5.0Supply Voltage Min: 1.8VSupply Voltage Max: 3.6VSignal Range Max: 0.2mData Rate: 2MbpsBluetooth Class: -Receive Sensitivity: -93dBmOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: RYZ012 Series
