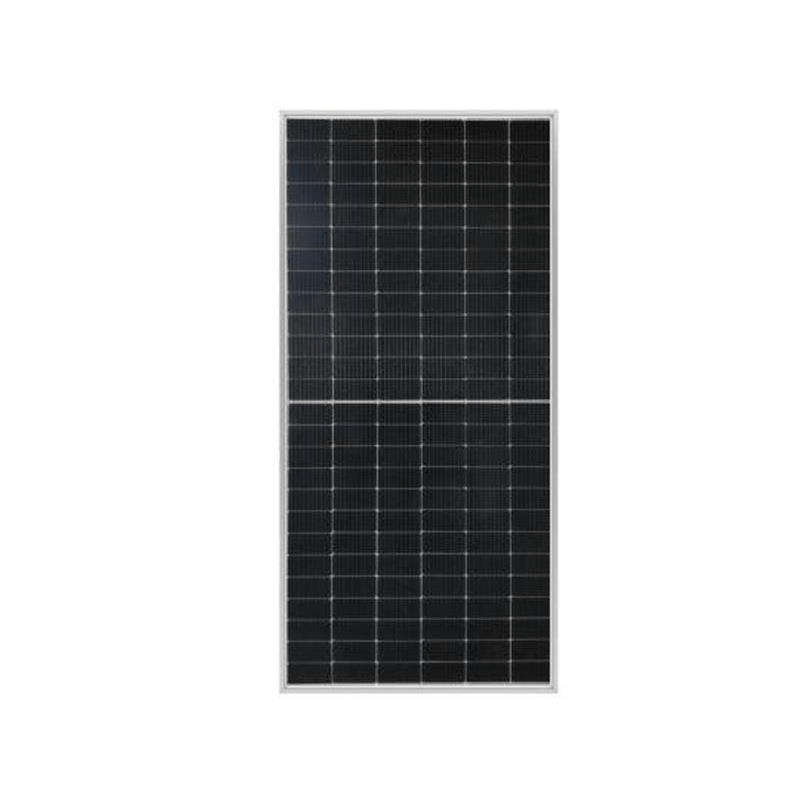

RenewSys 545W PV Modules Monocrystalline Solar Panel SOL-P-R-545
Features and Specifications
Powerful Performance:
Boasting a 545W capacity, the Renewsys SOL-P-R-545 delivers robust power generation for various applications, ensuring maximum energy efficiency.
Top-Quality Components:
Crafted with precision, this module features high-quality PV cells, encapsulants, and backsheets, guaranteeing longevity and superior functionality.
Versatile Application:
Ideal for utility, rooftop, and various solar installations, the SOL-P-R-545 adapts seamlessly to diverse solar projects, offering flexibility and adaptability.
Reliable Design:
With Renewsys' commitment to quality, this module ensures reliability in solar energy production, making it a dependable choice for your renewable energy needs.
Tips for Using the Product
Optimal Placement:
Install the module in an area with maximum sunlight exposure to enhance energy production.
Professional Installation:
Consider professional installation for precise setup and adherence to safety standards.
Monitor Performance:
Regularly check energy production levels to ensure the system operates at peak efficiency.
Maintenance Checks:
Periodically inspect the module for any signs of wear or damage, ensuring longevity.
Elevate your green energy journey with the Renewsys SOL-P-R-545.
Experience unparalleled performance, top-notch quality, and versatility in solar energy solutions.
Technical Specification
Rated power (Pmax), Wp: 545
Max. power voltage (Vmp), V: 41.98
Max. power current (Imp), A: 12.99
Open circuit voltage (Voc), V: 49.97
Short circuit current (Isc), A: 13.74
Module efficiency (%): 20.99
- DESERV SGalactic 144, Test uncertainty for Pmax ± 3%
Pmax (W): 405.61
Max. power voltage (Vmp), V: 38.39
Max. power current (Imp), A: 10.57
Open circuit voltage (Voc), V: 46.46
Short circuit current (Isc), A: 11.22
- NOCT (Wp) at 45 ± 2 0C -800 W/m2
No. of cells: 144
Cable: No. 12 AWG, 4mm2, (300mm Standard)
PV Connectors: MC4 Compatible
Frame: Anodized Aluminum Alloy
Junction box: IP68 Split junction box with 3 bypass diodes
Glass: 3.2mm Thick low iron tempered
Module dimension (mm): 2284 x 1137 ( ± 2)
Module thickness (mm): 35
Approximate weight (kg): 28.7
