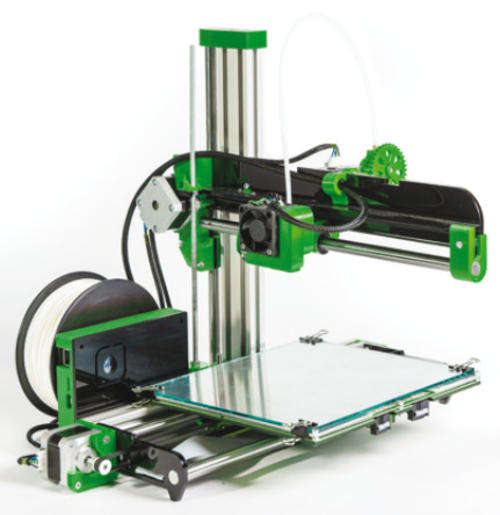

REPRAPPRO ORMEROD , 3D PRINTER

The RepRapPro Ormerod is one of the most versatile 3D printers available. Its primary design goal is to offer a printer which is easy to expand in functionality, fast to replicate, and fast to assemble and to commission. This new model builds on the already established designs and technical advances which have undergone brisk development and heavy testing since the RepRap Project‘s inception in 2004.
The Ormerod uses a process known a fused filament fabrication, which it employs to build 3-dimensional objects in a range of plastics and in a variety of colours. This process enables the user to create almost any shape which can be modelled on a computer, including some which could not be produced by traditional manufacturing techniques at all.
The RepRapPro Ormerod is a monochrome 3D printer configured to work with one type of plastic at a time. However, RepRapPro Ormerod is fundamentally designed to work with three deposition heads and an upgrade kit will be available soon for this machine to allow it to print multiple materials and colours.

Full open-source self-replicating RepRap
New 32-bit Arduino-compatible Duet electronics enable control via a web-browser
Wiring loom for simple plug-in connection – no soldering
IR probing for self-aligned printing – no bed adjustment required
Build volume: 200x200x200mm
Overall size: 500x460x410mm
Weight: 6 Kg
Printing materials: ABS, PLA, 1.75mm diameter thermoplastic.
Build surface: PCB-heated bed to reduce complexity of assembly and to ensure parts do not warp.
Computer interfaces: USB and Ethernet
X-carriage: Three Z-adjustable deposition head mounts; one head supplied
Motion: Linear ball bearings on X, Y and Z axes.
Pre-soldered electronics with built-in microSD card slot for standalone printing.
Enhancements to the printed parts to improve the ease of assembly of the X and Y axes
