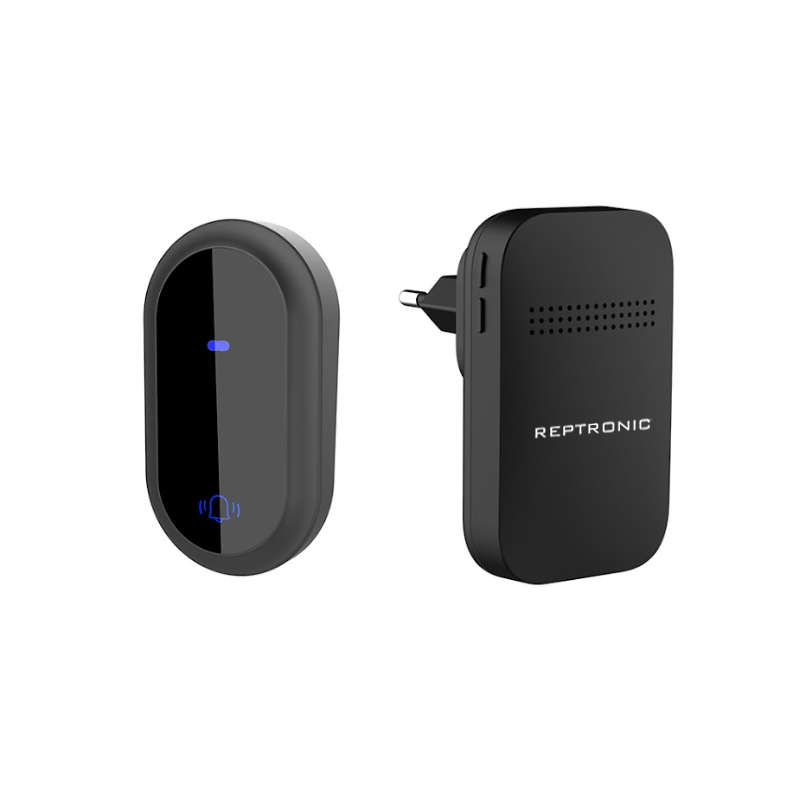

Reptronic DIY black wireless doorbell: RPTDB44 - 1R1B
Product Overview:
The Reptronic RPTDB44 is a modern, wireless doorbell system that blends simplicity with performance. Designed for quick DIY installation and optimal durability, this unit requires no batteries, making it maintenance-free. With IP68 water resistance protection, it is built to endure outdoor conditions.
What is IP68 rated?
IP68 is better suited for outdoor use, It can handle rain, splashes, and even light hose-downs, but should not be submerged or exposed to high-pressure water jets. Ideal for mounting on a gatepost, wall, or fence where it may be rained on directly, even without much shelter. If you're looking for robust water resistance, IP68 is a solid mid-tier choice.
Key Features:
- Battery-Free Operation: Transmitter generates power when pressed. No need for battery replacement.
- Water resistance Design: Transmitter is IP68-rated, offering protection even when submerged. Perfect for outdoor gates or fences.
- Long-Range Reception: Effective transmission distance of up to 150m in open, interference-free areas.
- Multiple Pairing Support: One transmitter can pair with up to 5 receivers.
- Customizable Alerts:
- 38 melodic chimes to choose from
- 4 adjustable volume levels (0-105dB)
- LED indicator with optional always-on setting
- Low standby power consumption (0.25W), press-powered transmitter
Installation & Operation
Pairing Instructions
- Plug in the receiver.
- Press the volume button on the receiver for 3 seconds until the LED flashes and a "Bi" sound is heard.
- Within 3 seconds, press the transmitter. The receiver will chime and flash to confirm successful pairing.
Clear Pairing
- Press and hold the volume button for 8 seconds until a "Bi" sound indicates all pairings have been cleared.
Music Selection
- With the receiver powered on, press the "Previous" or "Next" button to cycle through 38 melodies.
Volume Adjustment
- Press the volume button to select from four sound levels.
LED Light Control
- Press and hold the "Previous Music" button for 3 seconds to turn the LED indicator on or off.
Transmitter Installation
- Clean and dry the desired surface.
- Peel off the adhesive backing.
- Mount the transmitter on a wall, gatepost, or door frame.
Specifications:
Component
Transmitter
Size (L x W x H)
63 x 63 x 20 mm
Weight
32g
Power Supply
Press Power Generation
Component
Receiver
Size (L x W x H)
30 x 30 x 22 mm
Weight
78g
Power Supply
100-240V, 50/60Hz
Usage Notes
- Avoid placing transmitter or receiver near metal structures or electronic interference sources.
- Ideal for homes, offices, gates, or apartment buildings.
Why Choose Reptronic?
Combining premium durability, user-friendly features, and a sleek aesthetic, the RPTDB44 is the ultimate wireless doorbell for homes and businesses.
What's in the box
- 1 x Push Button (Transmitter)
- 1 x Plug-in Receiver
- 1 x Adhesive Tape
- 2 x Screws
- 1 x User Manual
