*Please use a balancer when connecting 2 batteries in series: https://www.geewiz.co.za/hubble-battery-balancer/185924-lithium-24v-battery-balancer-equaliser-suitable-for-all-battery-types-24v.html
*Please note that the battery monitoring app for this battery is only supported on Android and iPhone:
Android: https://play.google.com/store/apps/details?id=com.jiabaida.little_elephant&hl=en&gl=US&pli=1
Apple: https://apps.apple.com/us/app/xiaoxiang-bms/id1375405426
If possible, please set voltages to: Bulk - 14.1V, Float - 13.7V, Cut Off - 11.5V.
Failing to set the above, will VOID the warranty as the history is recorded in the BMS
- MAX 2 x batteries in series for 24V
- MAX 4 x batteries in parallel in 12V system only
Please note:
Delivery will take 1-2 days extra to any area outside of Gauteng
An additional charge of R295 shipping applies owing to the weight of the REVOV 12.8V Lithium-ion Battery - 100Ah | 1.280kWh
Collection from our Johannesburg office will be at no additional charge

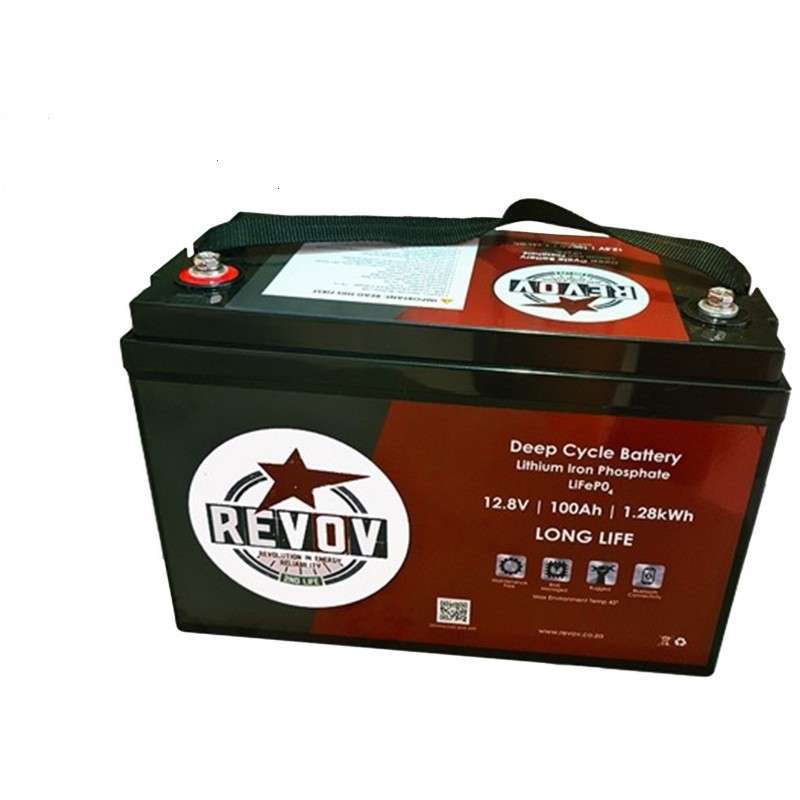

The 12.8V 100 Ah battery is (LiFePO4) chemistry and has an integrated battery management system making it the perfect portable power solution.
Lithium Iron Phosphate battery technology has greater energy density and lifecycle, it is a stable chemistry that maintains a high thermal runaway, resulting in a long life at low costs.
Application
- Camping Equipment companies
- 4x4 enthusiasts
- 24V Backup Systems
Specifications
- Nominal Capacity: 100Ah
- Nominal Energy: 1280Wh
- Nominal Voltage: 12.8V
- End of Discharge Voltage: 11.5V
- Standard Charge Voltage: 14.1±0.2V
- Float Charge Voltage: 13.7V
- Standard Charge Current: 20A
- Recommended Continuous Current: 70A ( Confirmed by Revov Technical Department )
- Max Discharge Current: 100A ( Confirmed by Revov Technical Department )
- BMS peak Current: 110A, 0.5Sec ( Confirmed by Revov Technical Department )
- Internal Resistance: <20mΩ
- Weight: Approx. 9kg, ±5%
- Ex-factory Capacity SOC: Approx. 50% SOC
- Discharge Temperature: -20°C — 60°C
- Charge Temperature (must be reduced at 0°C — 5°C): 0°C — 45°C
- Recommended Storage Environment: 15 — 45°C @ 75% SOC
- Cycle Storage: @ 50% 56C within 6 months
Electrical Characteristics & Test Condition
- Nominal Capacity: <100Ah
- Internal Impedance: <40mΩ
- Short Circuit Protection under and over Voltage Protection: Auto Cutoff Load when Short Circuit
