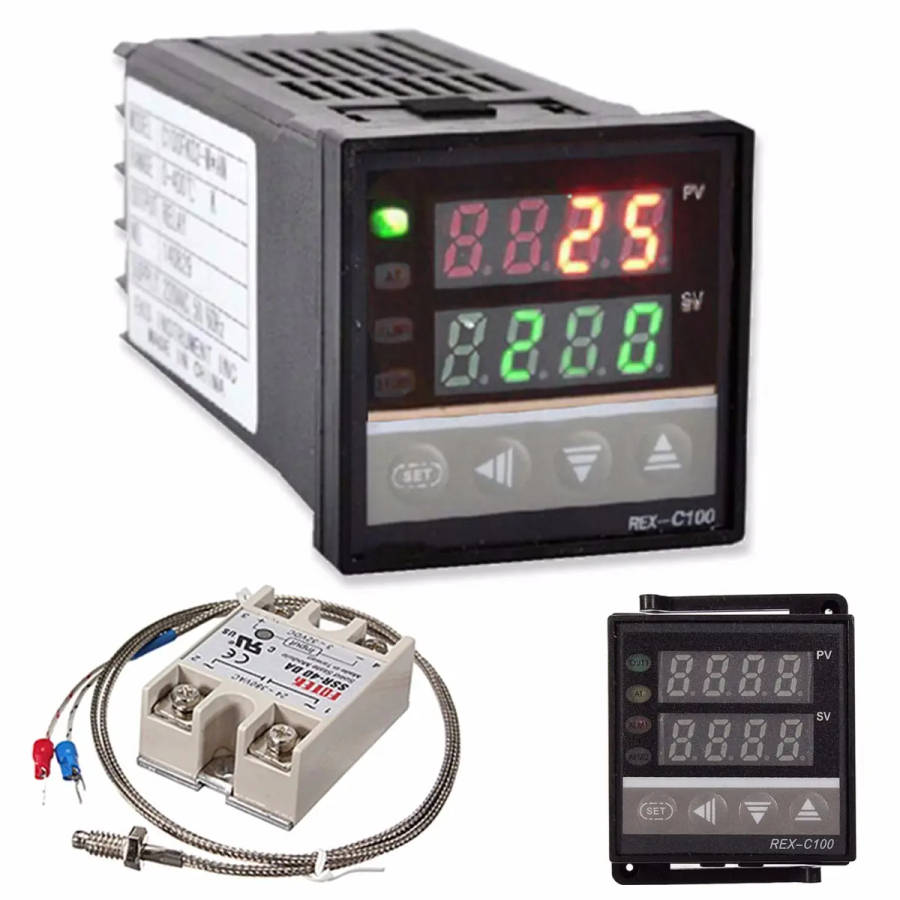

REX-C100 220V Digital PID Temperature Controller Kit

Features :

REX-C100 Temperature Controller Kit
Measuring accuracy : ±0.5%FS
Cold-end compensation tolerance : ±2 can be modified by software in 0~50
Resolution : 14 bit
Sampling cycle : 0.5 Sec

Power : AC 220V 50/60HZ


Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by : LED
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output : contact capacity 250V AC 3A (resistive load)
Alarm function output : 2 way
Proportional band (P) : 0~full range (ON/OFF control when set to 0)
Detective temperature range : 0 to 400
Insulation resistance : >50M ohm(500V DC)
Insulation resistance : 1500V AC/min
Insulation resistance : Power Consumption < 10 VA
Service environment : 0~50
Environment with no corrosive gas 30~85% RH

K Thermocouple Probe Cable

Length : 1M
Sensor diameter : 4.5mm
Temperature rang : 0-400
Internal Insulation : Fiberglass
External Shielding : Insulated Shielding

Max.40A SSR

Output Voltage Range : Standard Type
Output Current : 40A
Input Voltage : DC 3-32V
Output Voltage : 24-380V AC

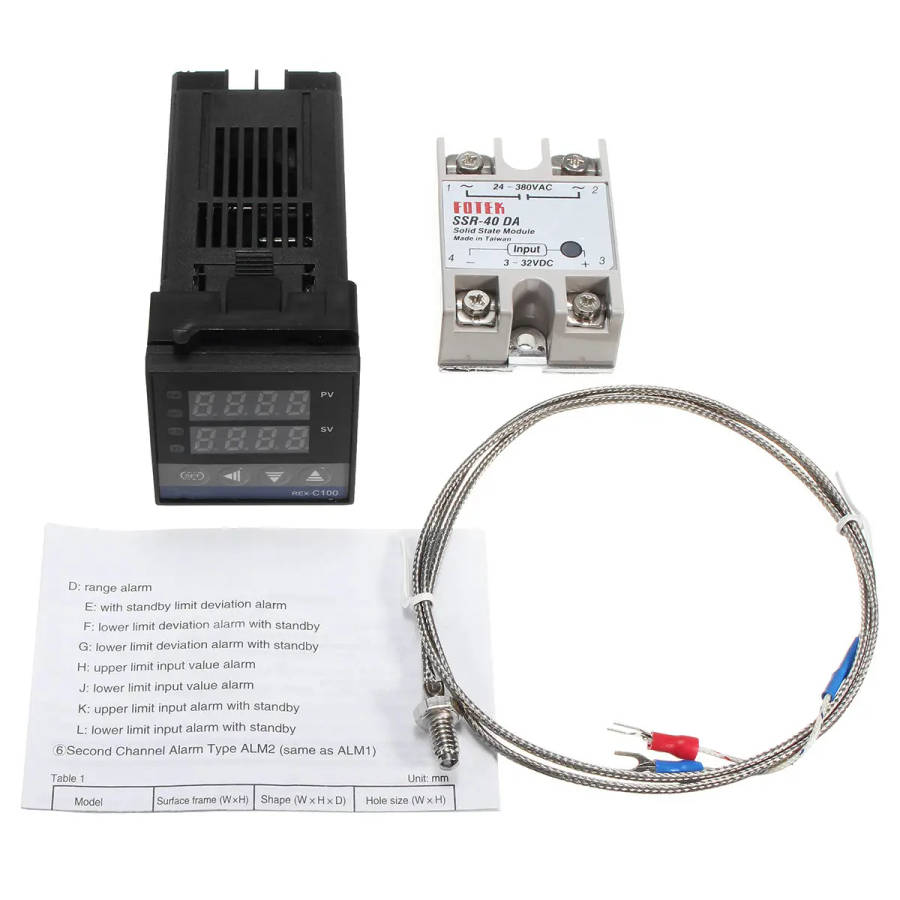

Package included :

1 x PID Temperature Controller
1 x K Type Probe Sensor
1 x Max.40A SSR

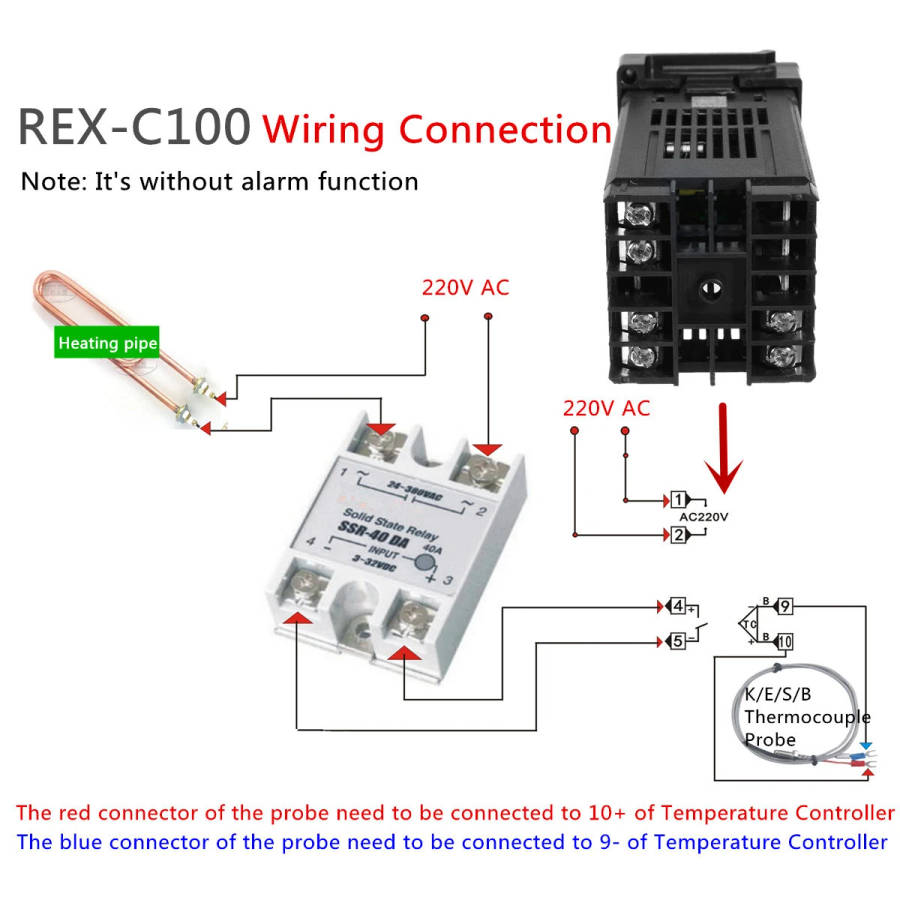

Here is a link of English manual download, share by customer : nd_n (Mail name), at 2014-6-10th, Millions of thanks to him :)
http://www.rkcinst.co.jp/english/pdf_manual/imnzc22e1.pdf
