Name: REX-C100 220V Digital PID Temperature Controller Kit
SKU: 914678
Price: 510.00 ZAR
Availability: SoldOut

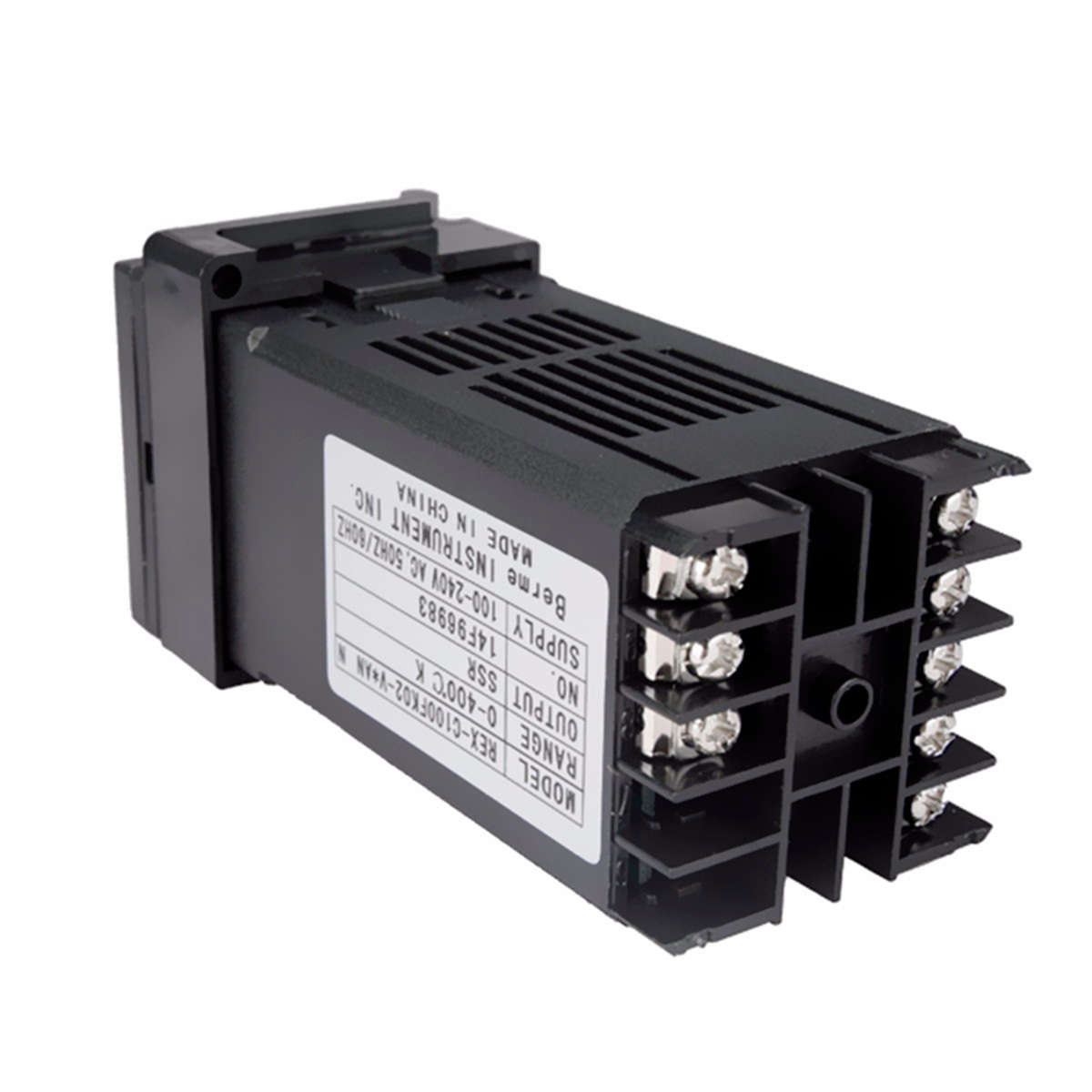

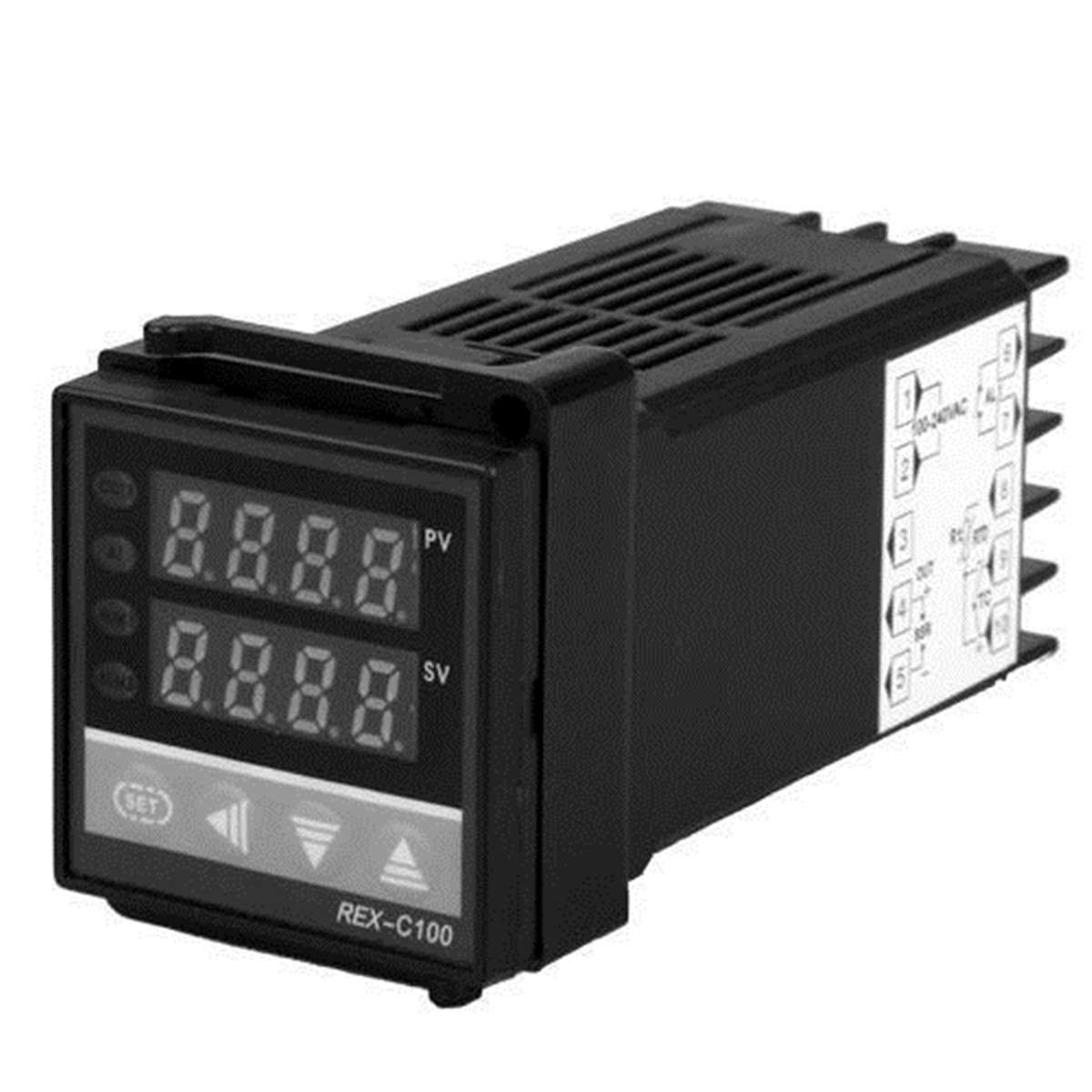

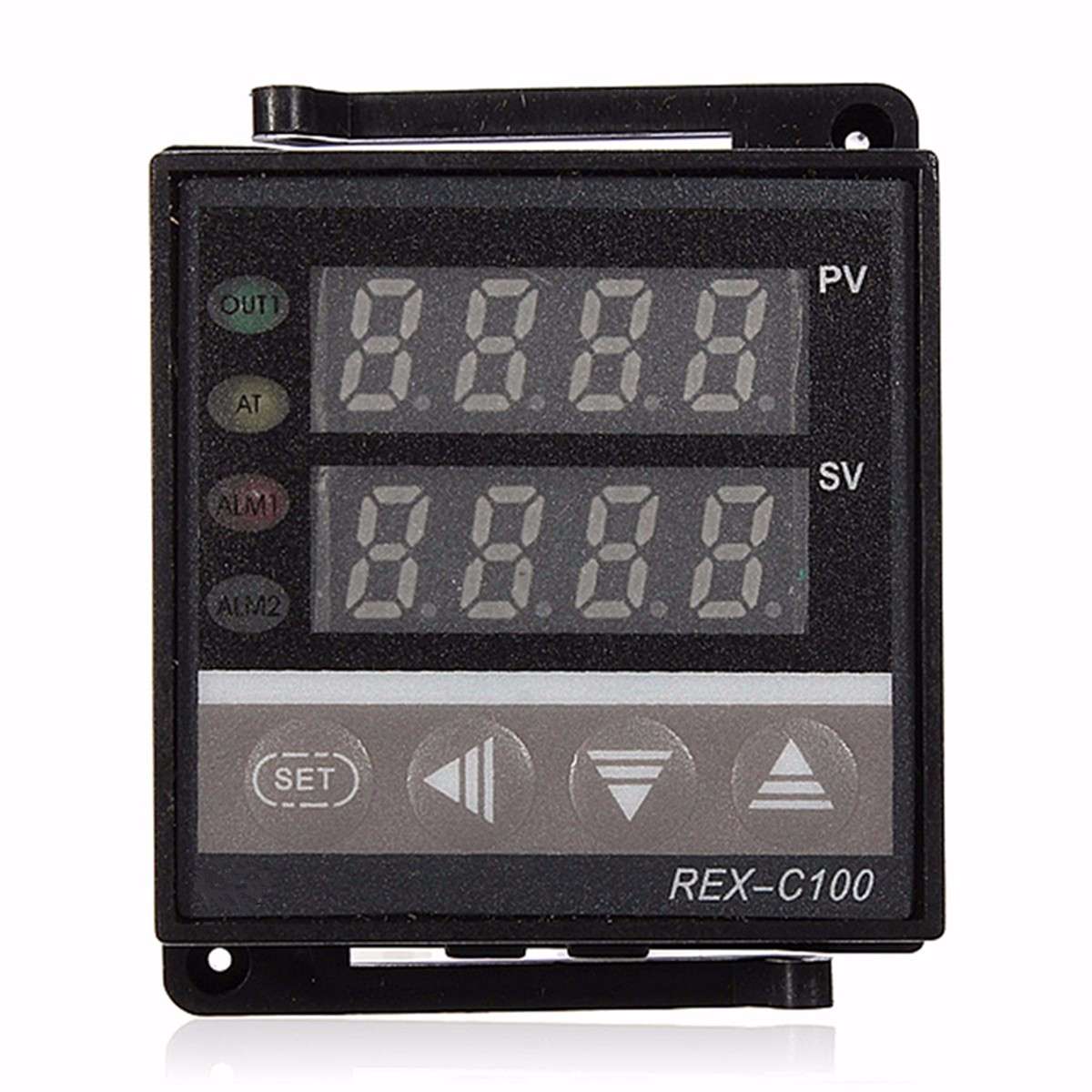

REX-C100 220V Digital PID Temperature Controller Kit

New

10 were available

R510.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Gearify(Blacklisted)

96.19 % Positive ratings

Buyer protection

How you're covered

Returns

Warranty Type: Dealer Standard Dealer Warranty

Money-Back Guarantee: 7 Days: 7 Days Money Back Guarantee

Get it now, pay later

Condition

New

Location

International

Product code

914678

Bob Shop ID

485291149

Product

REX-C100 220V Digital PID Temperature Controller Kit

Important Information

Certain products consists of different variations and options as indicated at the end of the product title. If you require more information on a product or have any pre-sale questions, please feel free to inquire.

Product images shown are for illustration purposes only and will only include the product(s) as per the description, title and option(s) as indicated.

Please confirm stock availability before purchasing.

Features :

REX-C100 Temperature Controller Kit
Measuring accuracy: ±0.5%FS
Cold-end compensation tolerance: ±2℃ can be modified by software in 0~50℃
Resolution: 14 bit
Sampling cycle: 0.5 Sec

Power: AC 220V 50/60HZ
You can also find the controller kit in (110V-240V SKU188430)

Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by: LED
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output: contact capacity 250V AC 3A (resistive load)
Alarm function output: 2 way
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Detective temperature range : 0 to 400℃
Insulation resistance: >50M ohm(500V DC)
Insulation resistance: 1500V AC/min
Insulation resistance: Power Consumption < 10 VA
Service environment: 0~50℃
Environment with no corrosive gas 30~85% RH

K Thermocouple Probe Cable

Length: 1M
Sensor diameter: 4.5mm
Temperature rang: 0-400℃
Internal Insulation: Fiberglass
External Shielding: Insulated Shielding

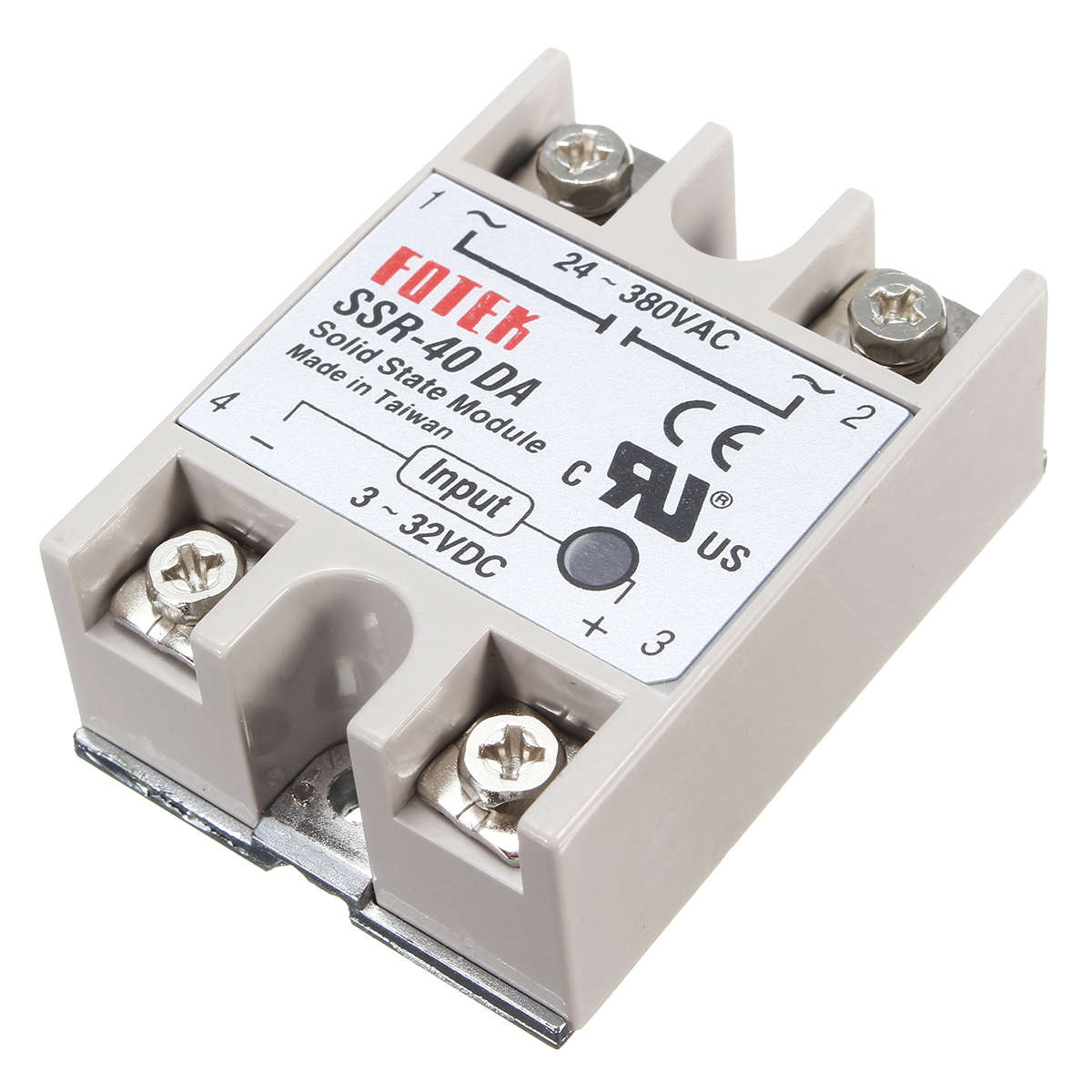

Max.40A SSR

Output Voltage Range: Standard Type
Output Current: 40A
Input Voltage: DC 3-32V
Output Voltage: 24-380V AC

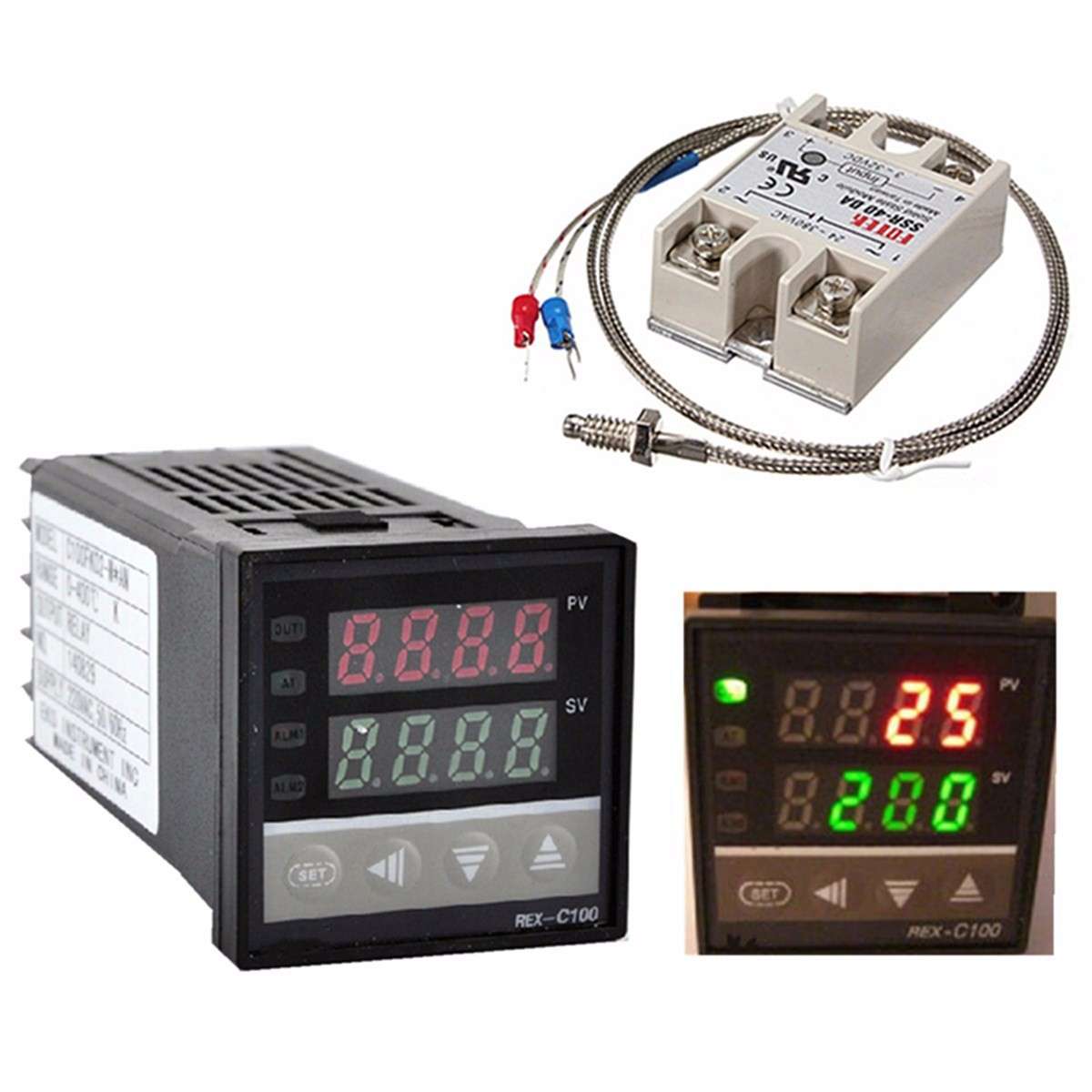

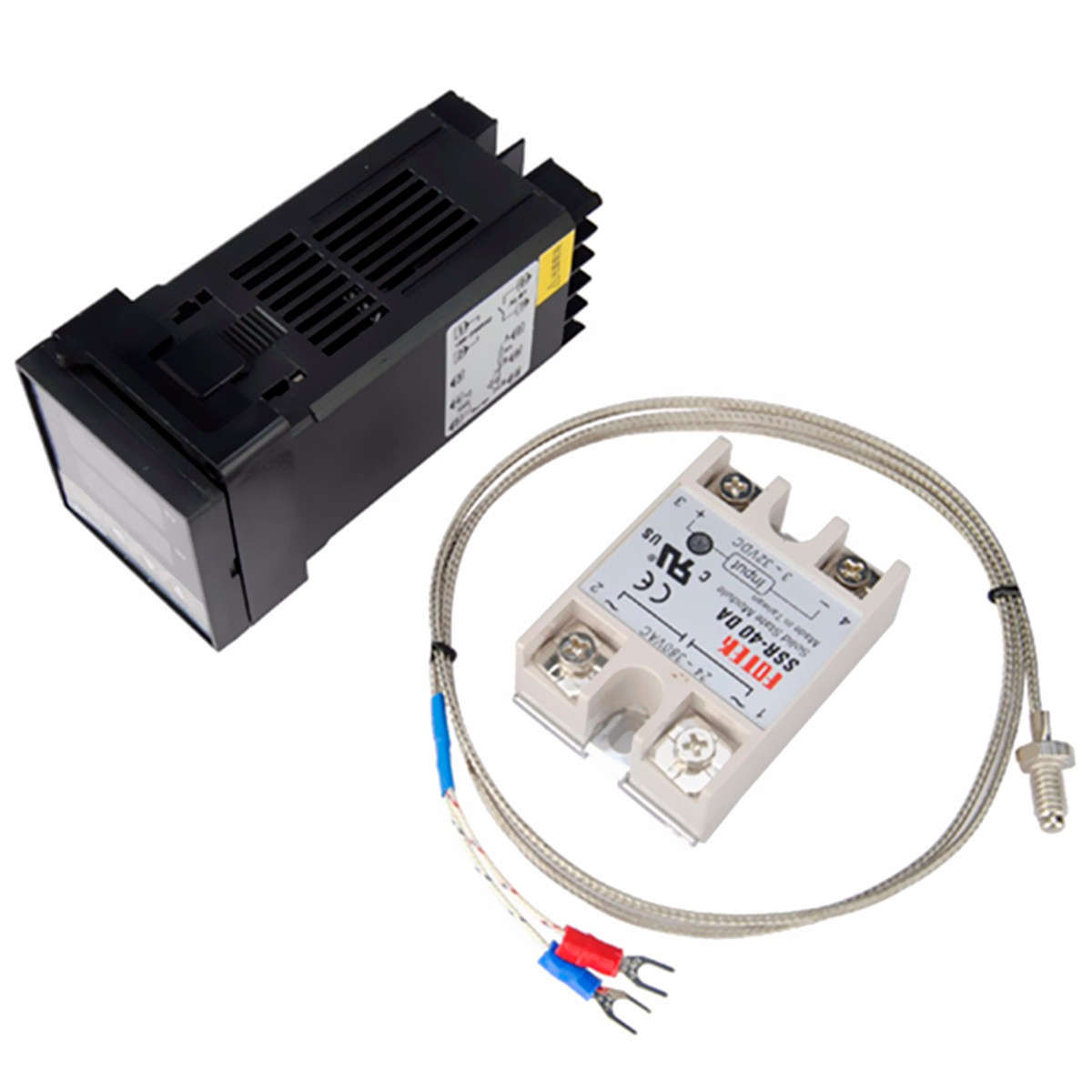

Package included :

1 x PID Temperature Controller
1 x K Type Probe Sensor
1 x Max.40A SSR

Here is a link of English manual download, share by customer : nd_n (Mail name), at 2014-6-10th, Millions of thanks to him :)
https://www.rkcinst.co.jp/english/pdf_manual/imnzc22e1.pdf
