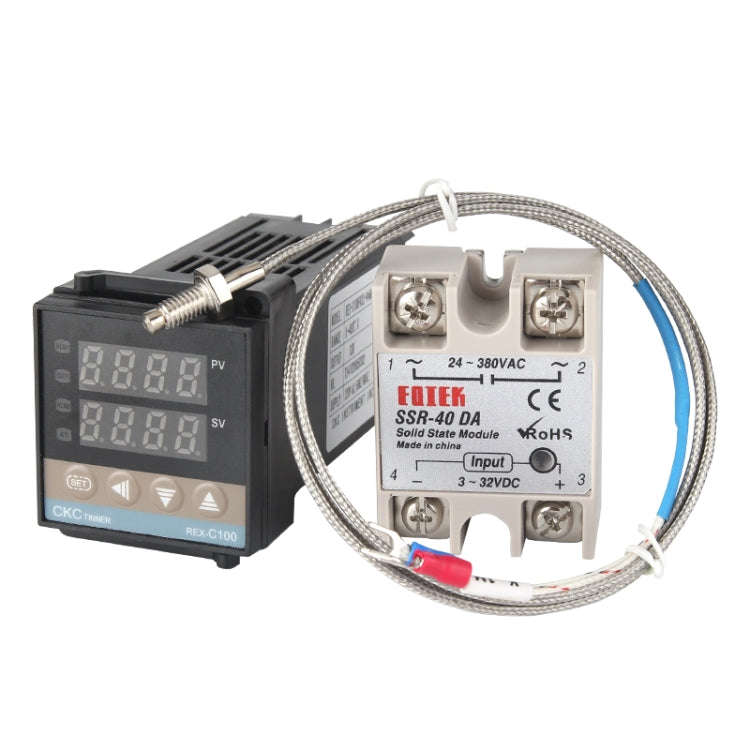

REX-C100 Thermostat + Thermocouple + SSR-100 DA Solid State Module Intelligent Temperature Contro...
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
HCB5465
Bob Shop ID
607119179

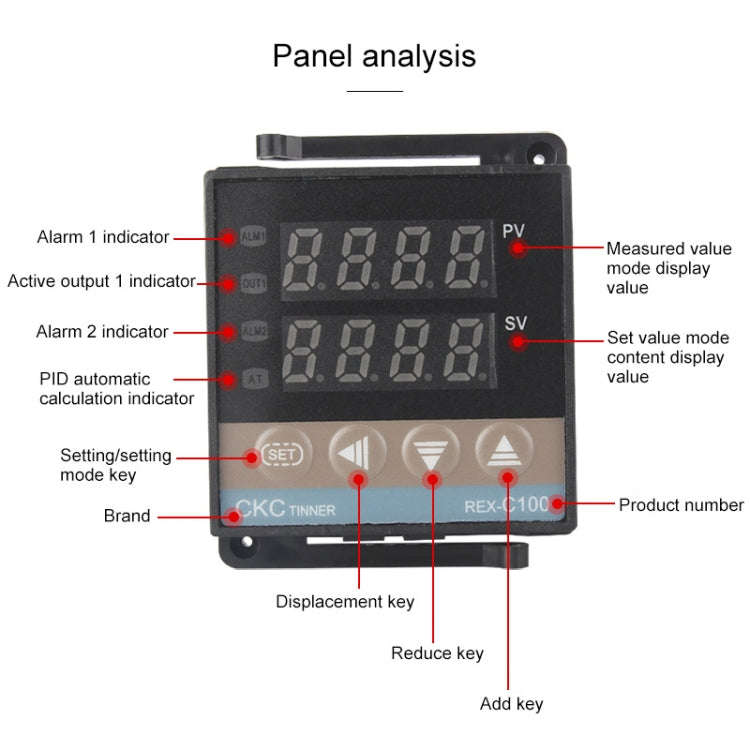

Thermostat parameters:
1. Voltage: 220V

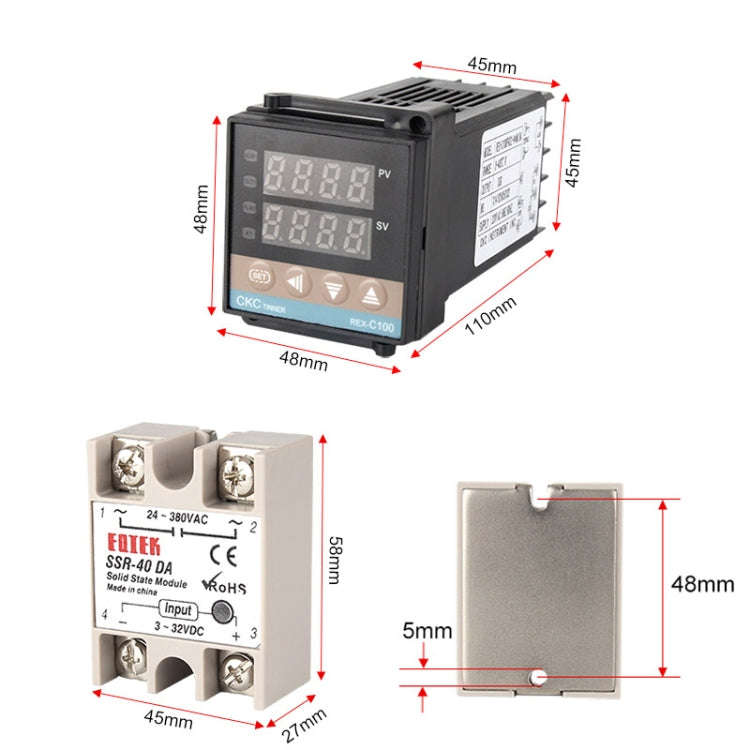

2. Opening size: 45x45mm
3. Control method: PID control
4. Input method: K/EPT100 (optional)
5. Output mode: SSR solid state relay
6. Product size: 48x48x110mm

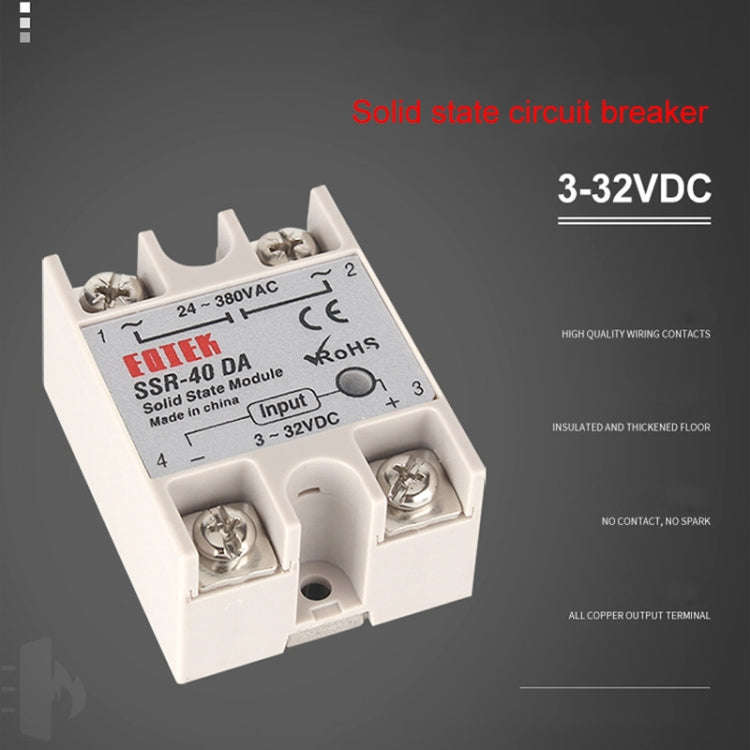

Solid state module parameters:
1. Control method: DC control AC
2. Input voltage: 3-32V DC
3. Ambient temperature: -30 degrees Celsius to +70 degrees Celsius
4. Working frequency: 50-60Hz
5. Control current: 3-35mADC
6. Product size: 45x27x58mm
7. Product weight: 81g

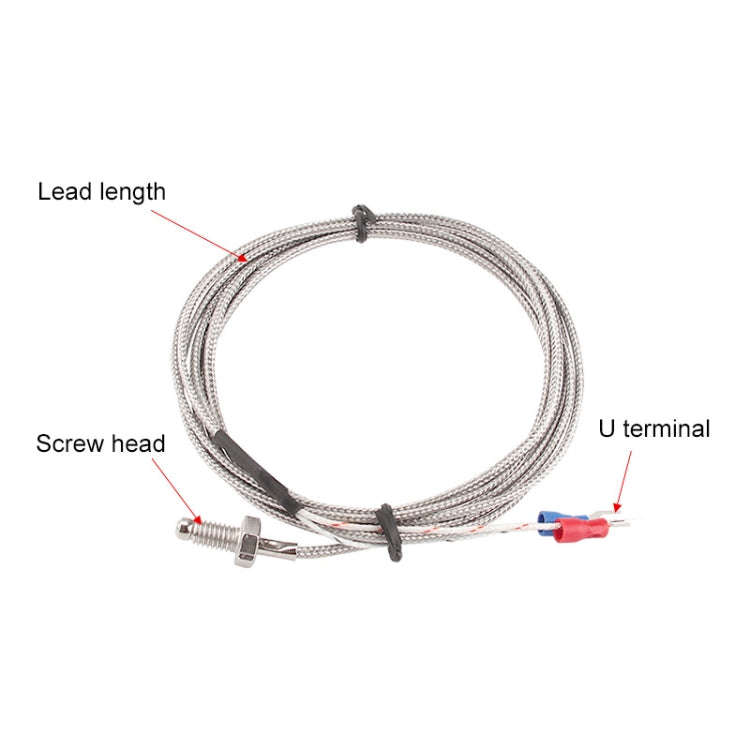

Screw type thermocouple parameters:
1. Model: K type
2. Screw specification: M6 inch
3. Lead length: 1 meter
4. Measuring range: 0-400 degrees Celsius
5. Wiring terminal: U-shaped terminal
6. Product weight: 16g
1. Voltage: 220V
2. Opening size: 45x45mm
3. Control method: PID control
4. Input method: K/EPT100 (optional)
5. Output mode: SSR solid state relay
6. Product size: 48x48x110mm
Solid state module parameters:
1. Control method: DC control AC
2. Input voltage: 3-32V DC
3. Ambient temperature: -30 degrees Celsius to +70 degrees Celsius
4. Working frequency: 50-60Hz
5. Control current: 3-35mADC
6. Product size: 45x27x58mm
7. Product weight: 81g
Screw type thermocouple parameters:
1. Model: K type
2. Screw specification: M6 inch
3. Lead length: 1 meter
4. Measuring range: 0-400 degrees Celsius
5. Wiring terminal: U-shaped terminal
6. Product weight: 16g
