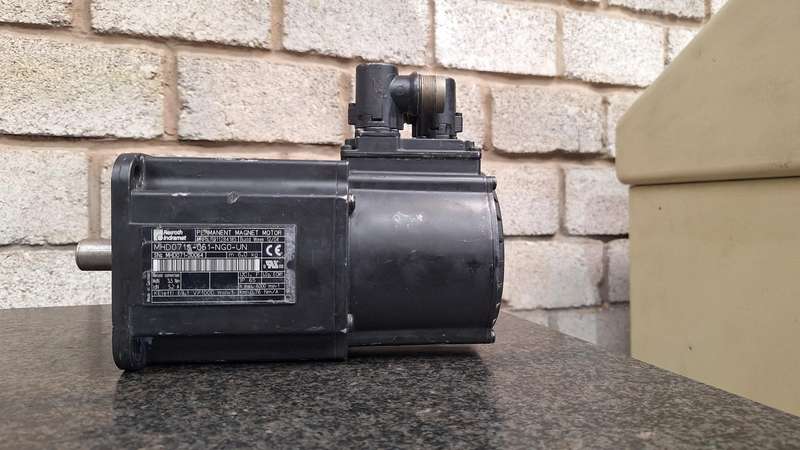

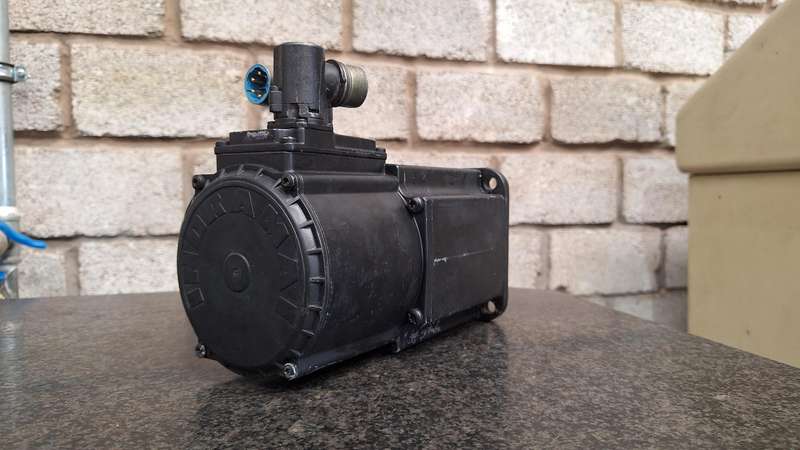

Rexroth Indramat Permanent Magnet Servo Motor MHD071A-061-NG0-UN Tested & Working

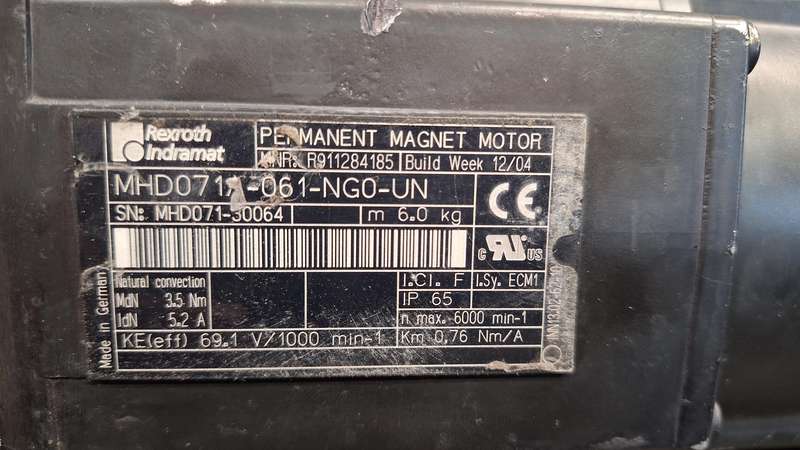

Manufacturer - Rexroth Indramat (Bosch Rexroth)

Model Number - MHD071A-061-NG0-UN

Serial Number - MHD071-50064

Part Number - R911284185

Build Week  - 12 / 2004

Cooling Method - Natural Convection

Motor Length - A (short)

Weight - 6.0 kg

Rated Torque (MdN) - 3.5 Nm

Rated Current (IdN) - 5.2 A

Max Speed (n max) - 6000 min¹ (RPM)

Protection Class - IP65 (dust-tight & water jet protected)

Insulation Class - F

Voltage Constant(KEeff) - 69.1 V/1000 RPM

Torque Constant (Km) - 0.76 Nm/A

Feedback System - Resolver (UN)

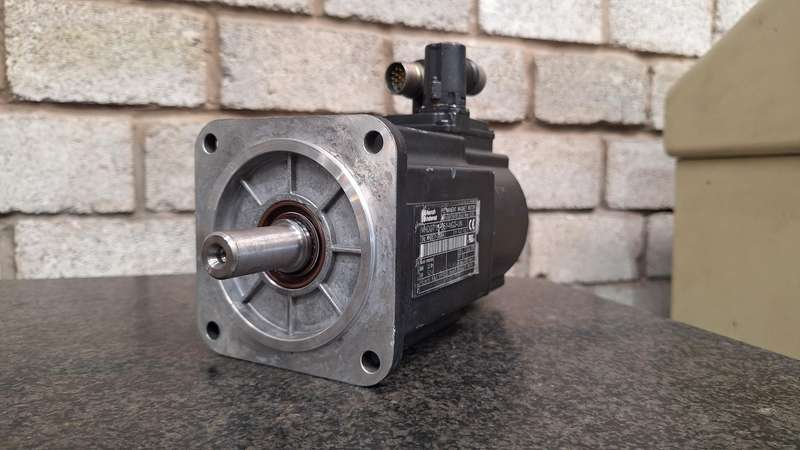

Shaft Type - Keyed with shaft sealing ring (NG0)

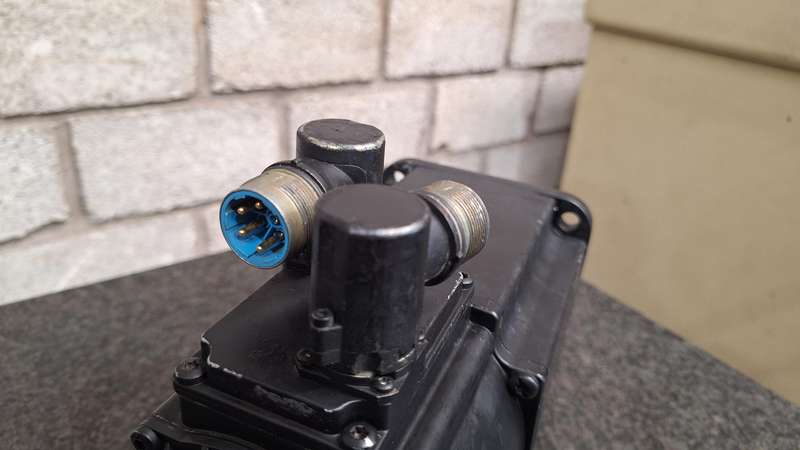

Connection Type - Straight connectors

Made in - Germany

All sales are final, no refunds will be given, 7-day replacement guarantee . Tested and working. 4 units available.
