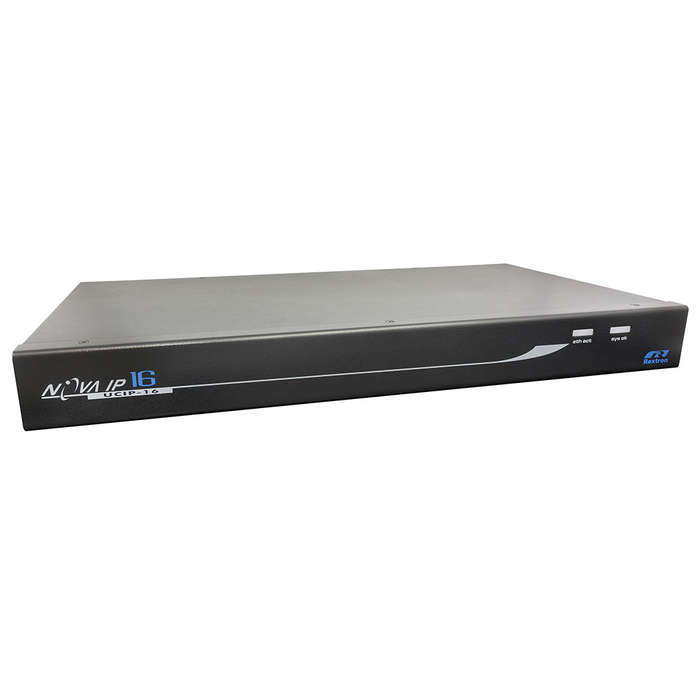

Rextron 16-Port KVM With IP

• USB console for keyboard and mouse control
• RoHs compliant
• 16 bits color depth supports up 65,536 colors
• Unique OSD feature to guide the user
  finishing the initial setup step-by-step very
  easily
• Different user accounts may have different
  preferences
• Firmware online upgradeable 24/7
• Custom certificate upload
• Flexible access sharing modes
• VNC screen encryption
• Internal firewall
  Supports industry-standard networking and
  management protocols such as TCP/IP and
  SNMP
• Offers secure management options including
  SSL encryption, SSH tunneling, and RADIUS
  authentication
• Platform independent: can be managed using
  any Java-enabled web browser
• One remote management point for multiple
  computers

Max Supported Video ModeL 1600 x 1200 @ 85Hz

Connectors:
LAN RJ-45 x 1
Serial Supervisor (RJ-14) x 1
DB9 RS-232 Male (DTE) x 1
DC In x 1

Computer Connectors:
HDB15 Female (Grey) x 16
Interface : USB + PS/2
Cable Type : CBM-xxxUH, CBM-xxxH

Console Connectors:
USB Type A x 1
USB Type A x 1
HDB15 (Female) x 1

Power Consumption (Max.): 12V DC, 1.2A

What's in the box
User Manual x 1
CD with User's Manual x 1
Power Adapter Set x 1
AC Cord for Power Adapter x 1
KVM Cable 1.8M x 12
KVM Cable 3.0M x 4
DB9 RS-232 null modem serial cable x 1
Rack Mount kit of Standard 19" 1U x1
Screw Package x 1
Foot Pad Set x 1
