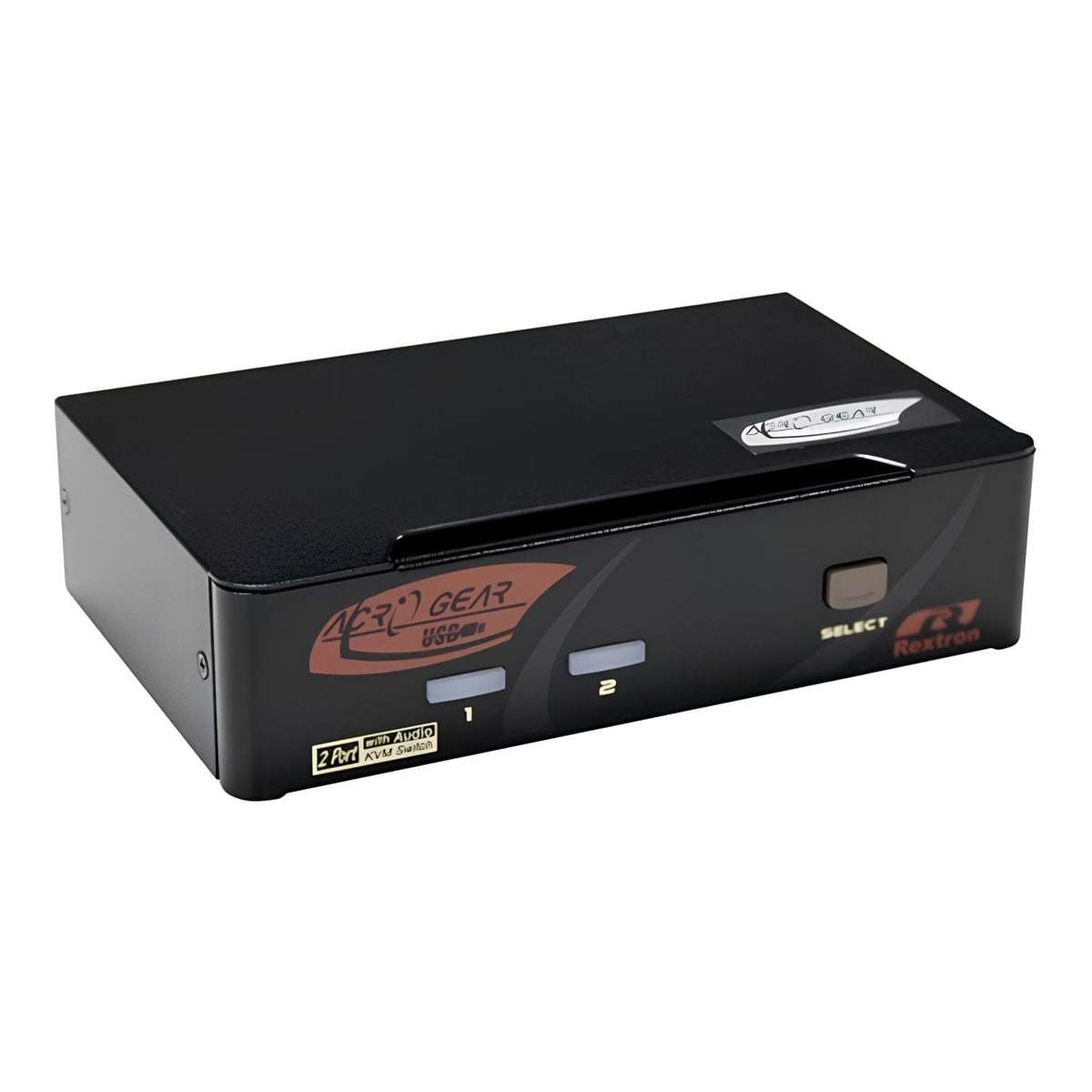

Rextron 2-port HDMI KVM Switch with USB 2.0 and Two-way Audio MAAG-112
Key Features
- 2 computers share 4 different USB peripherals ( KB + MS + USB 2.0 Devices)
- Supports hot plug and un-plug detection and link status-failure detection
- HDCP compliant and Blu-ray ready
- Supports existing VESA and Consumer Electronics Association (CEA) standards
- Screw-free design, the streamlined form factor for new all digital desktop monitors
- Complete interoperability
- Support Audio (Speaker + Mic); through HDMI Type A Female if CPU's audio sent with video over HDMI port
2 Ports HDMI KVM Switch with USB 2.0, Two-way audio, HDCP, MAAG-112
MAAG-112 is a simple-to-use 2 Ports HDMI KVM Switch with USB 2.0, Two-way audio, EDID, HDCP supported, which allows users to share one set of keyboard, mouse, monitor and two-way audio between 2 HDMI computers. Simply press one button or apply the hotkey to select your desired HDMI source.
MAAG-112 2 Ports HDMI KVM Switch supports two-way 3.5mm stereo analog audio, SPEAKER and MIC, as well as USB 2.0 ports to meet most requirements. And there is a buzzer sound effect built-in for operation confirmation. The 2 Ports HDMI KVM Switch is a pure Plug & Play hardware design, no software or driver required.
HDMI KVM Switch with USB 2.0 supports Two-way audio function which is essential to keep the two-way voice communication open in real-time PC gaming situation.
Rextron KVM switch with USB Hub supports keyboard-mouse operation as well as USB peripheral sharing without any software or driver installation. Dedicated USB 2.0 port design on the rear side of the KVM switch unit suitable for both long-term and temporary USB peripherals access allows users to attach or detach USB devices with ease.
Technical Specification
Product: Rextron 2-ports HDMI KVM Switch with USB 2.0, Two-way audio, HDCP, MAAG-112
Computer/Server Ports (input)
- 4x HDMI (Single Display x 4 PCs)
- 4x USB 2.0 Type B
- 2x Audio Jack in
- 2x Audio Jack out
Console Ports (output)
- 1x HDMI (Single Display)
- 2x USB 2.0 Type A (Rear)
- 2x USB HID Type A (Rear)
- 1x Audio Jack in
- 1x Audio Jack out
Video Resolution (Max.)
- 1920x1200-60Hz (4:4:4)
- 1920x1080-60Hz (4:4:4)
Push Buttons: 1x Port Selection
HDCP Compliance: HDCP 1.4
Control Methods: Hotkey / Push Button
LED Indicator (Power / Status)
- 2x Computer Ready (Green)
- 2x Computer Selected (Red)
- 1x Power
Automatic scan interval: 3, 8, 15, 30 seconds
Power Supply: DC 9~12V
Enclosure: Metal
H x W x D (mm): 40 x 160 x 100
Weight (g): 580
Warranty: 1-year Carry-in

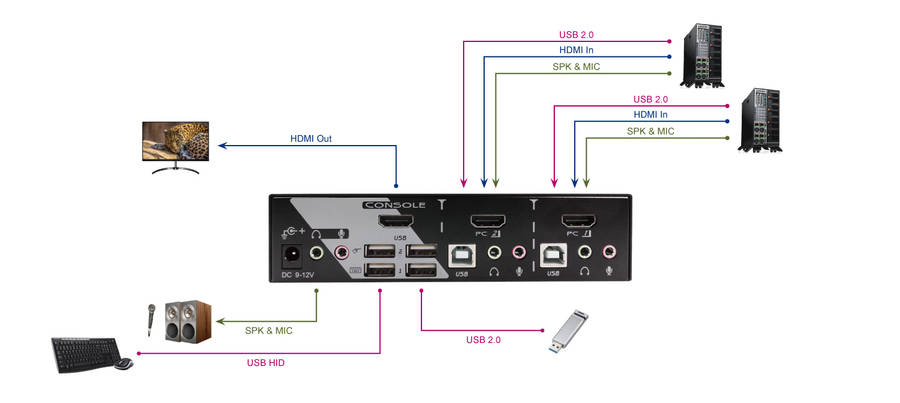

Connection
