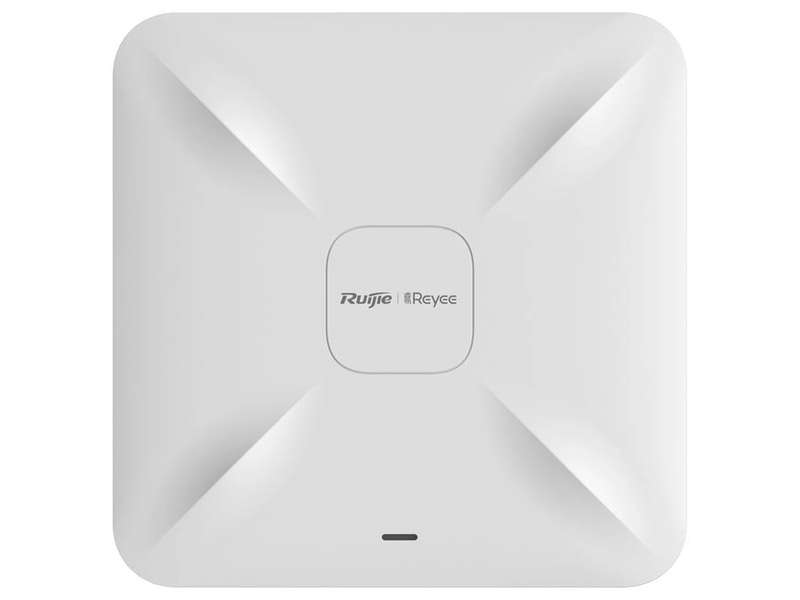

Reyee Dual Band AC Gigabit Wave 2 Ceiling Mount AP | RG-RAP2200 E

Reyee's RG-RAP2200G is an 802.11ac dual-band ceiling mount access point featuring MU-MIMO Wave 2 technology, dual Gigabit Ethernet ports, seamless roaming and speeds up of up to 1267Mbps. It supports Ruijie's smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Manufacturer Product Code RG-RAP2200(E)
Manufacturer Reyee
Type Approval
Specifications Antenna Gain: 2.4GHz: 2dBi; 5.8GHz: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps

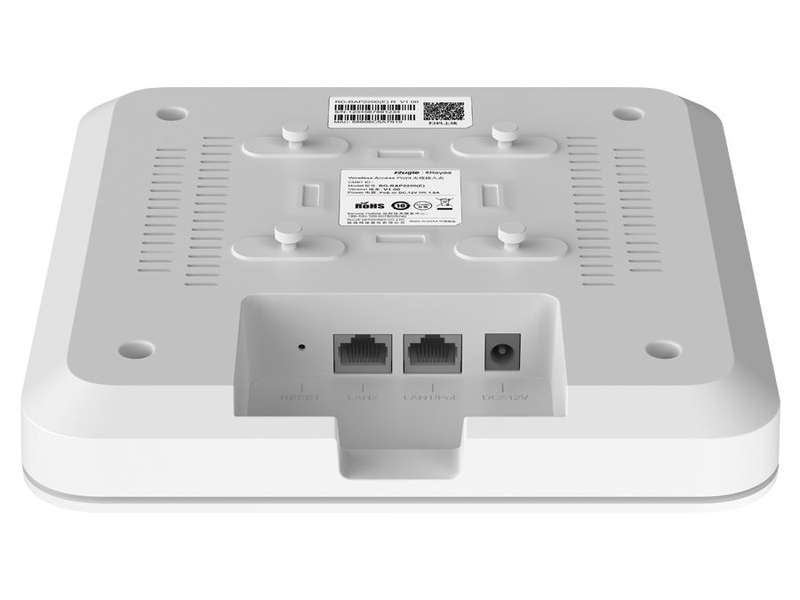

Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12.95W

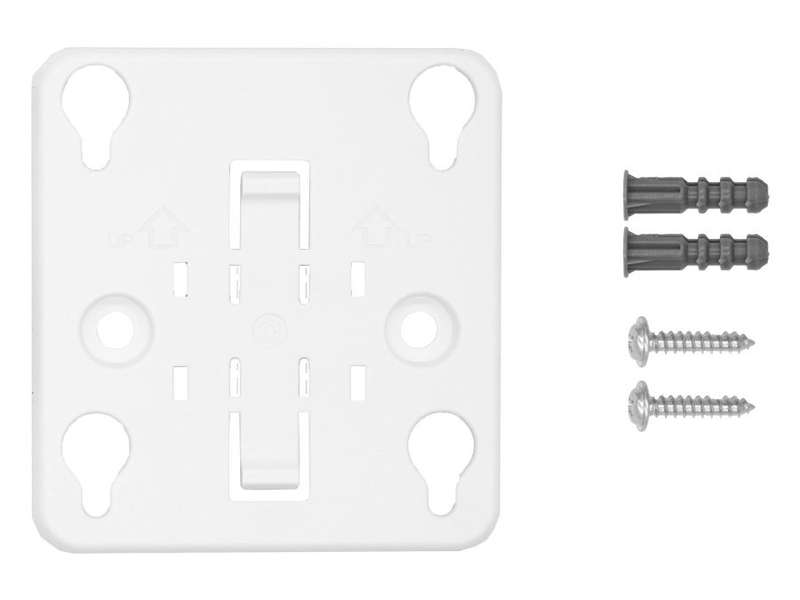

Mounting: Ceiling or Wall-Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3af/at
PoE Output: None
Power Input: 802.3af/at or 12V 1.5A Power Supply (not included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V (PoE) 12V (DC Input)
USB Ports: None

Dimensions: 194 x 194 x 35mm
Weight: 450g
