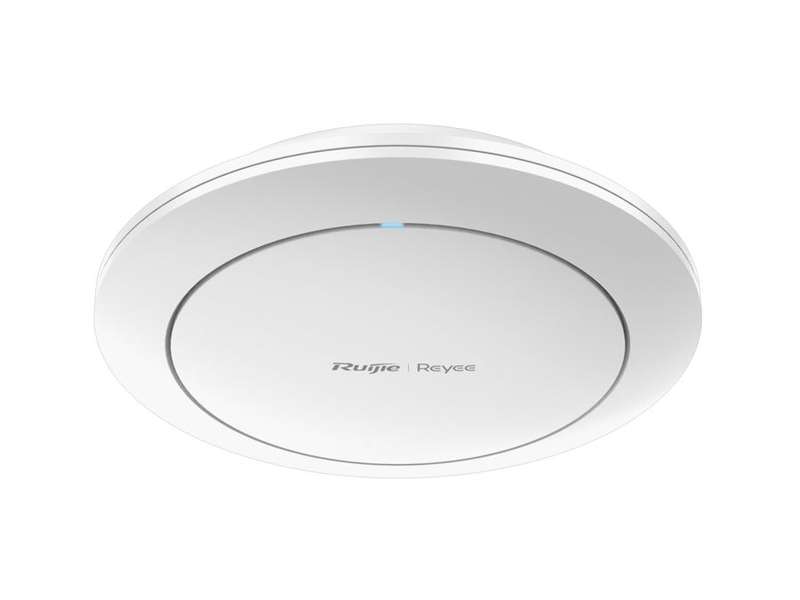

Reyee's RG-RAP2266GX is a WiFi 6 (802.11ax) dual-band ceiling mount access point featuring 1x Gigabit Ethernet port, seamless roaming and speeds of up to 3000Mbps. It supports Ruijie's smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.
*Note: This device requires an 802.3at PoE injector or 12V 2A Power Supply which are not included.
Specifications:
Antenna Gain: 2.4GHz: 3.5dBi; 5.8GHz: 5.15dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 2402Mbps

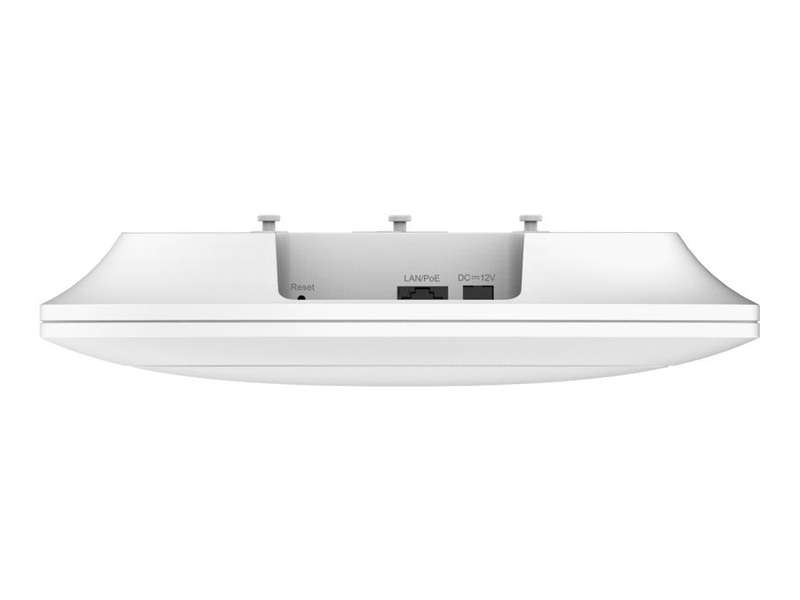

Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 18W

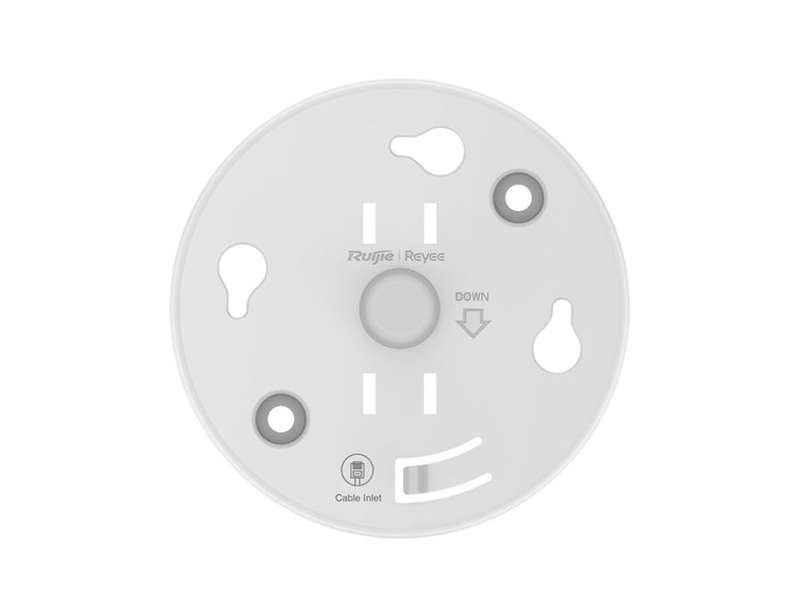

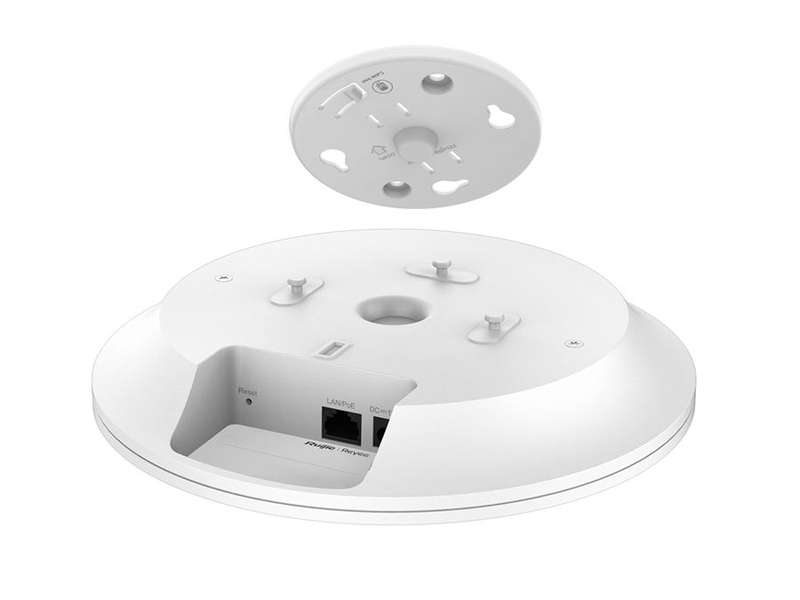

Mounting: Wall or Ceiling Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3at
PoE Output: None
Power Input: 802.3at or 12V 2A Power Supply (not included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V (PoE) 12V (DC Input)
USB Ports: None
Dimensions: 220 x 220 x 52.6 mm
Weight: 560g
