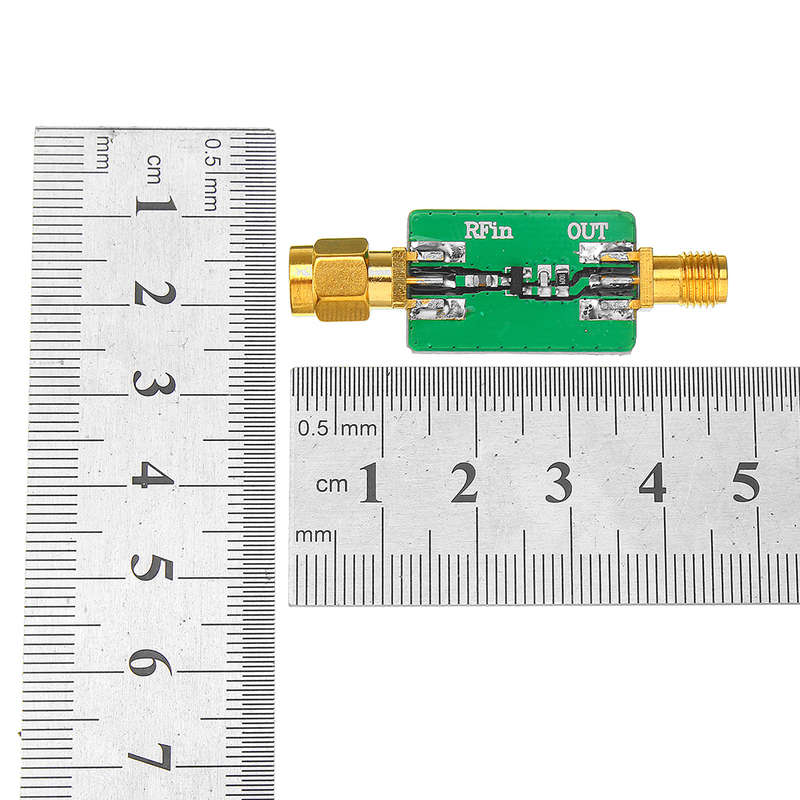

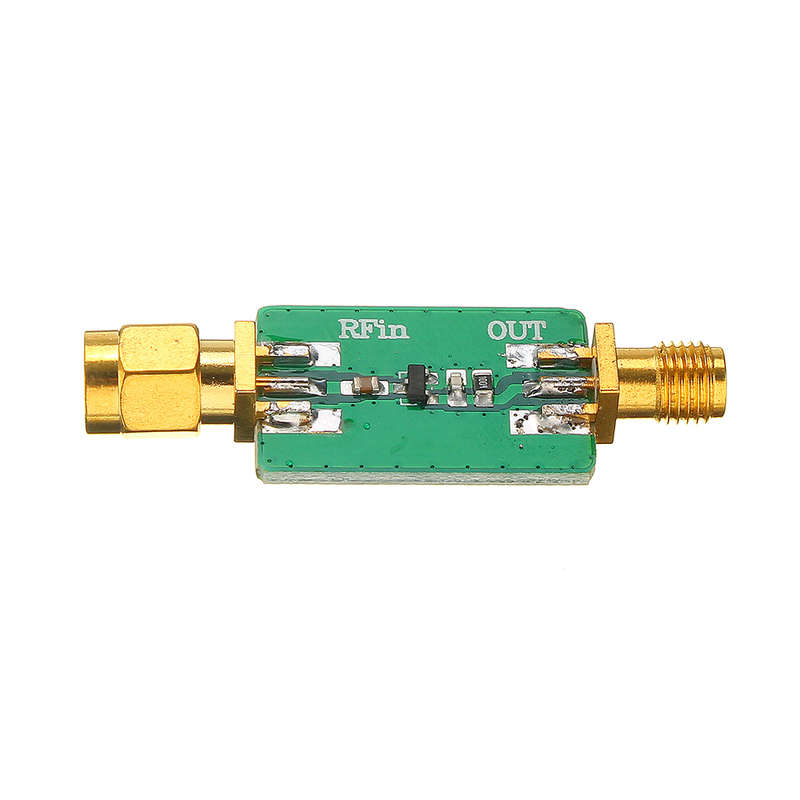

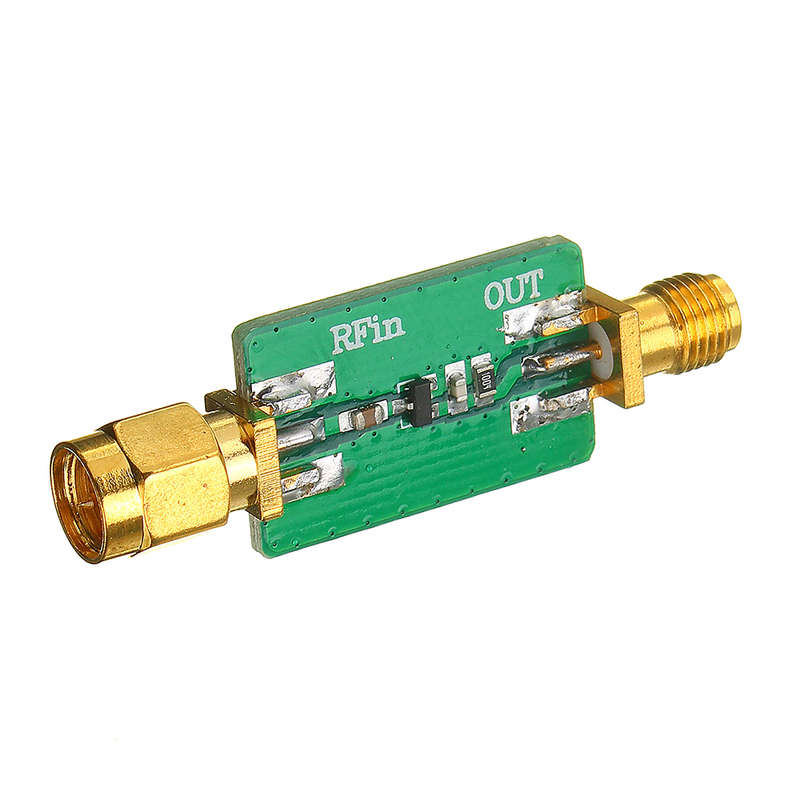

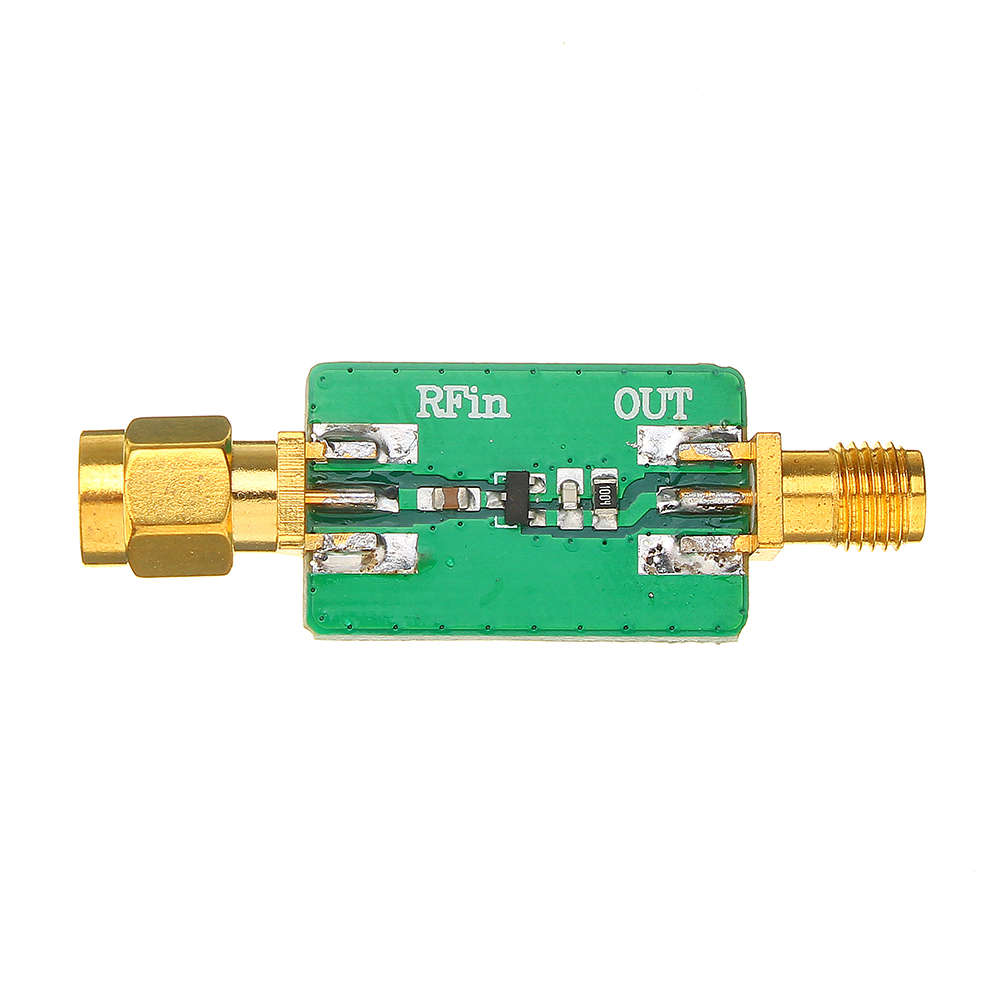

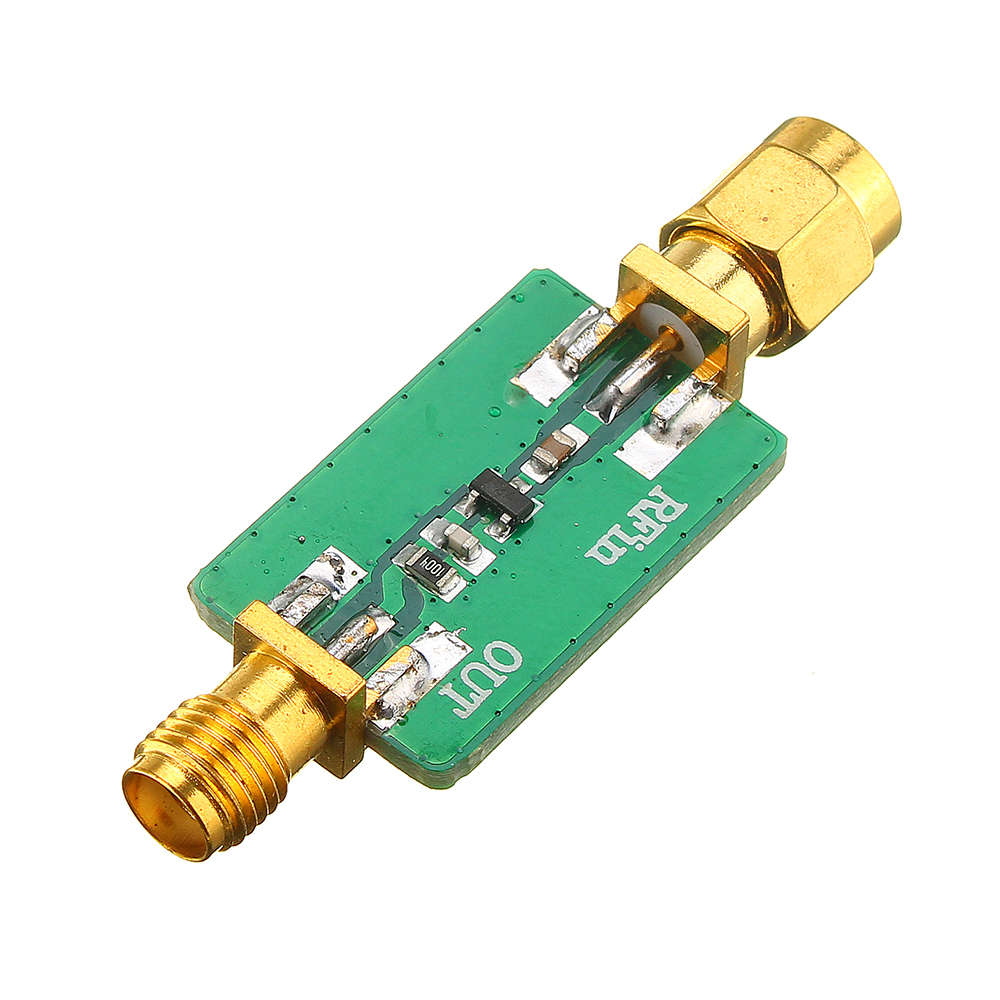

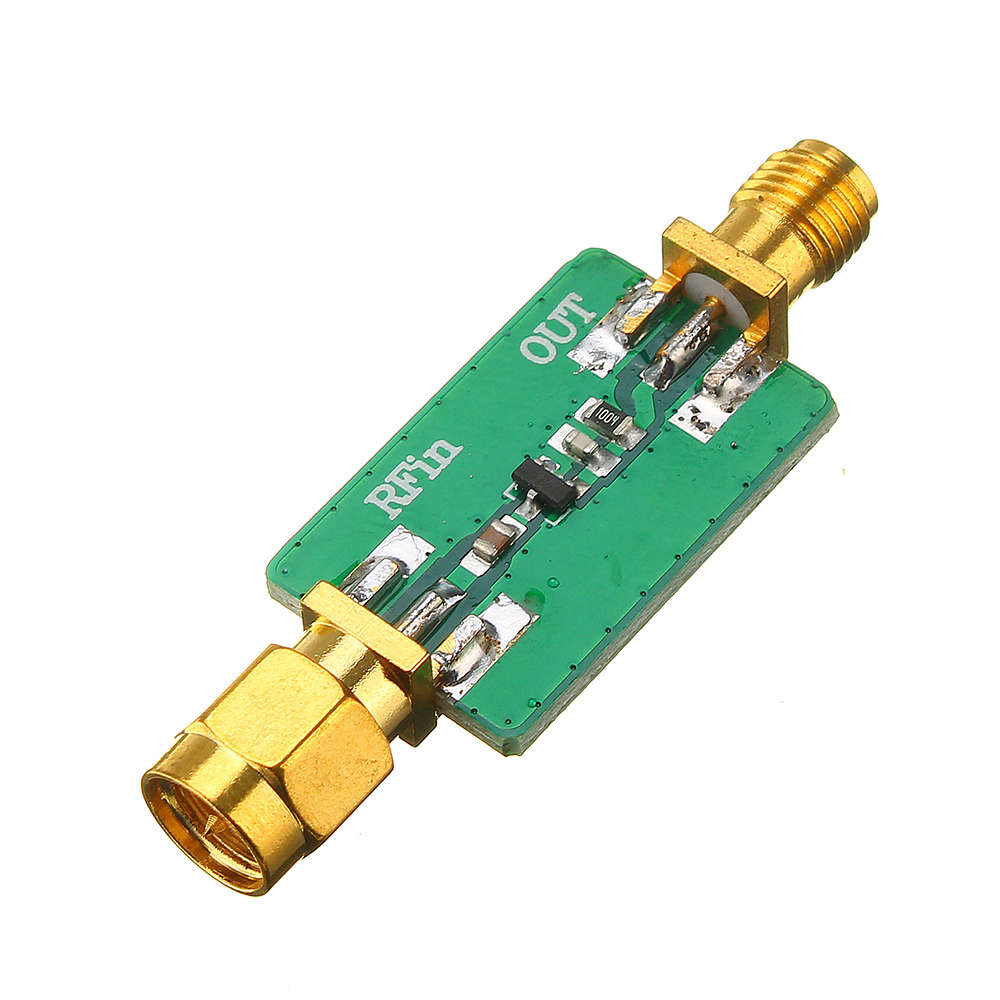

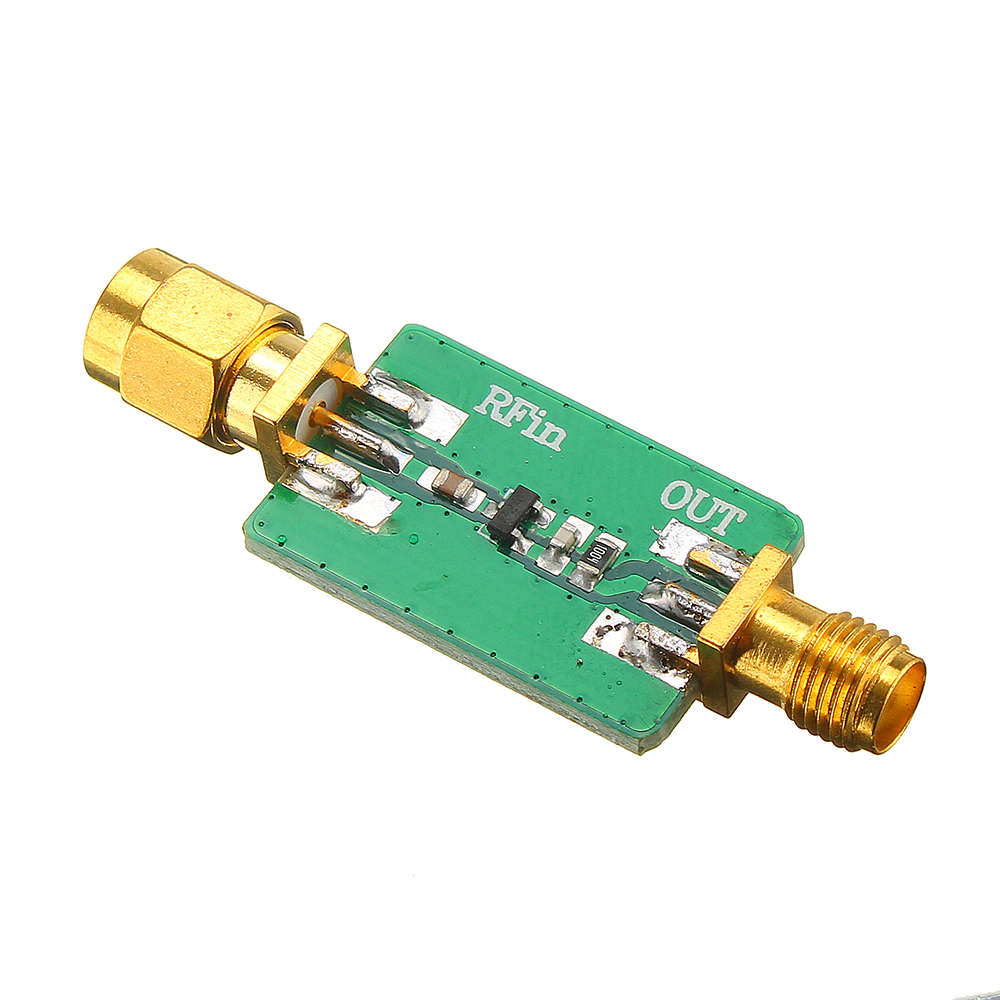

Name: RF AM FM Radio Frequency Envelope Detector Discharge Detector 0.1-3200MHz Module
SKU: EZI-1428848
Price: 270.00 ZAR
Availability: SoldOut

RF AM FM Radio Frequency Envelope Detector Discharge Detector 0.1-3200MHz Module

1 was available / new

Indicative market price: R389.00

R270.00

31% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Ezi-Imports807

99.15 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Product code

EZI-1428848

Bob Shop ID

441021687

Product Usage:

1. AM amplitude modulation signal detection

2. 10.7MHz amplitude modulation signal detection

3. FM discriminator output detection

4. Discharge signal, partial discharge signal detection

5. Pulse signal detection (such as wifi signal transmission and reception switching)

6. Wireless signal energy harvesting

7. Radio production (highly sensitive radio detection circuit in ore machine)

8. 2AP9, 1N60 improved replacement

Product advantages and features:

1. High sensitivity: -30dBm--40dBm (preferred for radio production)

2. Wide frequency range: not less than 3200MHz (discharge signal detection)

3. Corresponding speed: PS level, (pulse detection)

4. TR component power detection

Product specifications:

1. Maximum input: 20dBm (burned power) linear range <10dBm

2. Detection output: default is positive

3. Working frequency: 0.1--3200MHz

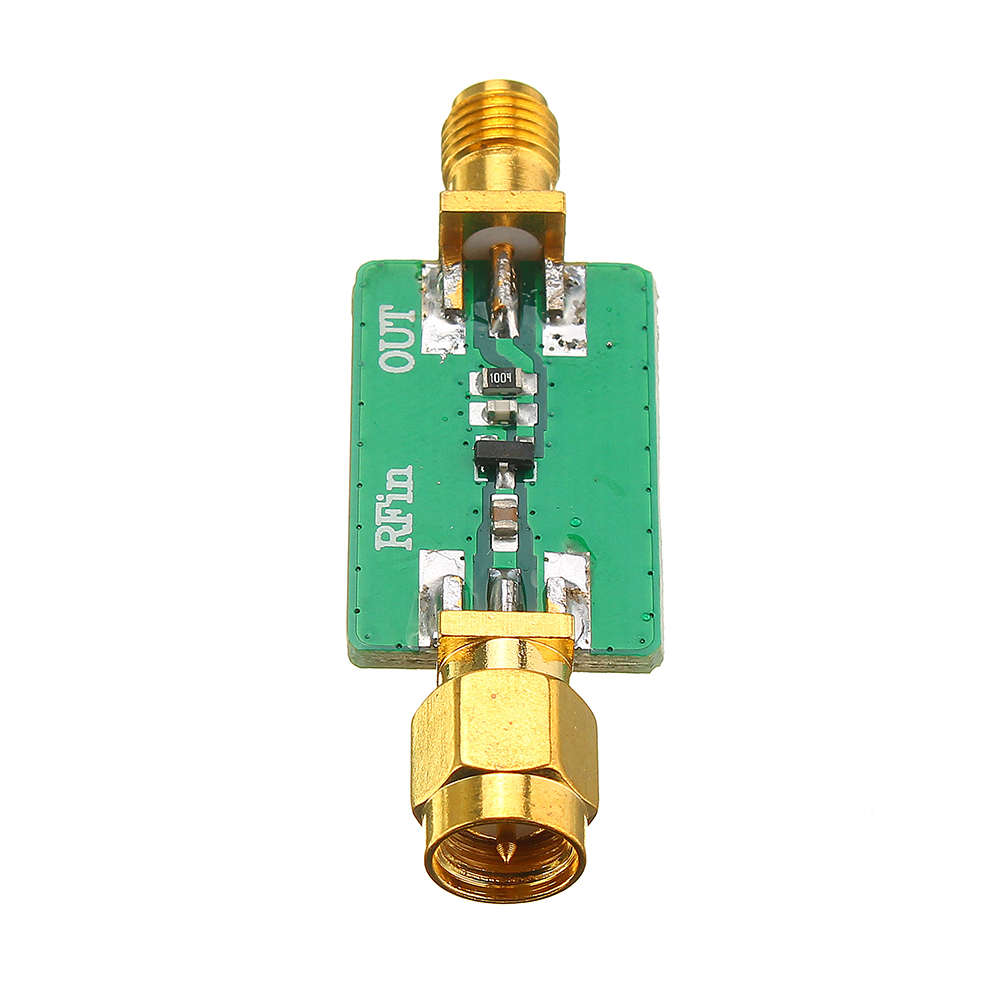

4. RC filtering: R = 10K, C = lnF, (two parallel components of the output port)

Tip: If you want to work at a lower frequency, you can increase the output capacitance. If you want fast response, you need to reduce the capacitance. This is a contradiction, you can configure it according to your needs.

Working principle:

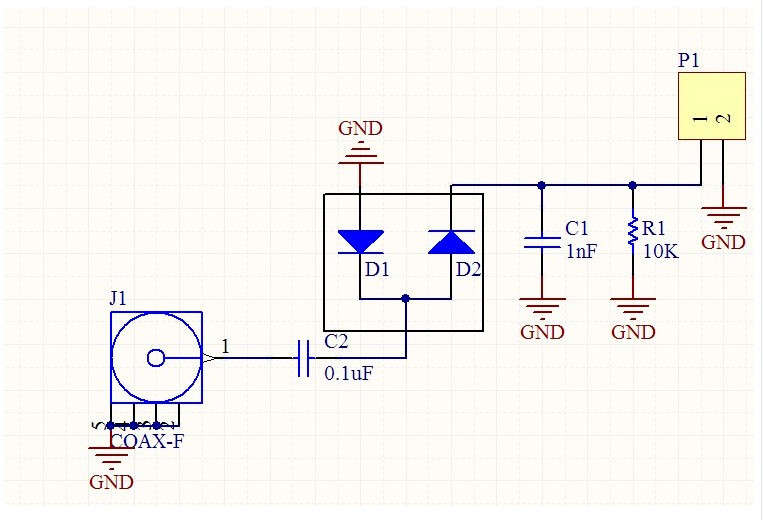

1. This product uses a double-voltage detector (consisting of two inverted microwave diodes), which is 6dB higher than the single-tube detector sensitivity, with high sensitivity (typical -30dBm, even up to -40dBm>, not ordinary 2AP9, 1N60 can match.

2. The detector adopts imported microwave diode design and has high operating frequency (not less than 3200MHz). It can be used for various high frequency and RF signal detection, such as: AM detection, 10.7MHz detection AM, discharge signal 300-1200MHz. Detection, WIFI2.4G amplifier signal detection switching circuit, radio energy collection in free space.

3. Envelope detection principle

Package includes:

1 x Module
