RF And Microwave DC Bias DC Feeder Module 10-6000MHz

20 available / new

R464.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3465

93.39 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641131670

Use:

1. RF power supply of active antenna
2. The output of the broadband amplifier is straight
3 communication data injected through the RF side

Working parameters:

1. Frequency range: 10 - 6000MHz
2. Insertion loss: 0.3dB@512MHz 0.45dB@1575MHz
3. Maximum voltage: 50V
4. Maximum current: 500mA
5. RF connector: SMA-K (outer screw bore)
6. System impedance: 50 ohms

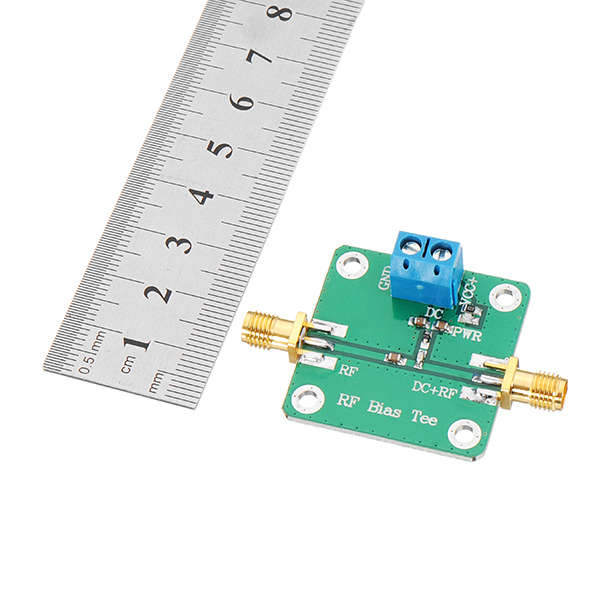

7. Dimensions: 33mmx33mm without connector

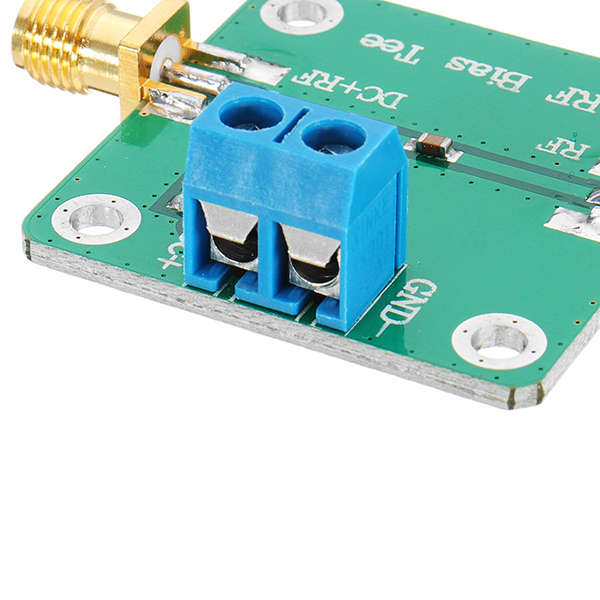

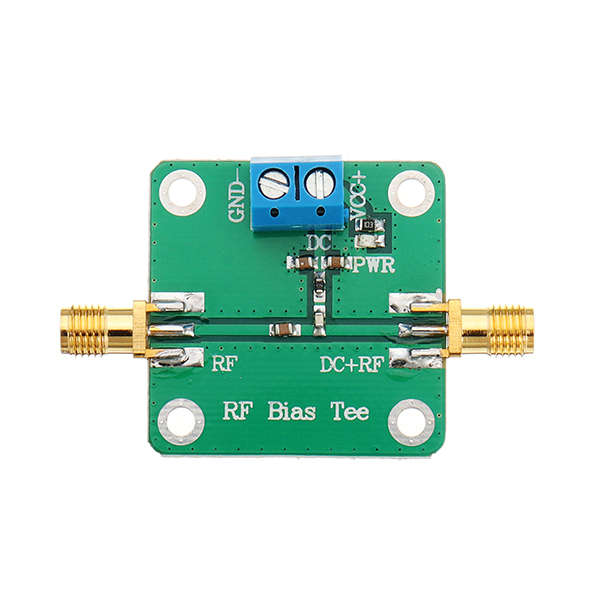

Wiring:

1.DC: external DC power supply
2.RF: RF signal port (this port can only transmit RF signals)
3.RF+DC: RF dc bias (this port can transmit RF and dc bias)
4.GND-: DC powered common ground
5.VCC+: DC power supply

Package included:

1 xRF And Microwave DC Bias DC Feeder Module 10-6000MHz
