RF Demo Kit NanoVNA RF Tester Board Filter Attenuator for NanoVNA-F Vector Network Anaylzer

RF Demo Kit NanoVNA RF Tester Board Filter Attenuator for NanoVNA-F Vector Network Anaylzer

20 available / new
R549.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643386943
Description:
- PCB board in size of 10 x 10cm - Vector network analyzer learner tool - RLC series and parallel circuit 1 - RLC series and parallel circuit 2 - 33 ohm resistance, SWR=1.5 - 75 ohm resistance, SWR=1.5 - BSF ceramic notch filter, center frequency 6.5MHz - BPF ceramic filter, centre frequency 10.7MHz - RC series circuit - LC series circuit - Capacitor - Inductance - Homemade low-pass filter, 3dB bandwidth 400MHz - Homemade high-pass filter, 3dB bandwidth 500MHz - Short-circuit calibration circuit - Open-circuit calibration circuit - 50 ohm load calibration circuit - Straight-through - 10dB attenuation circuit - 3dB attenuation circuit - Each set of functional circuits Applications:

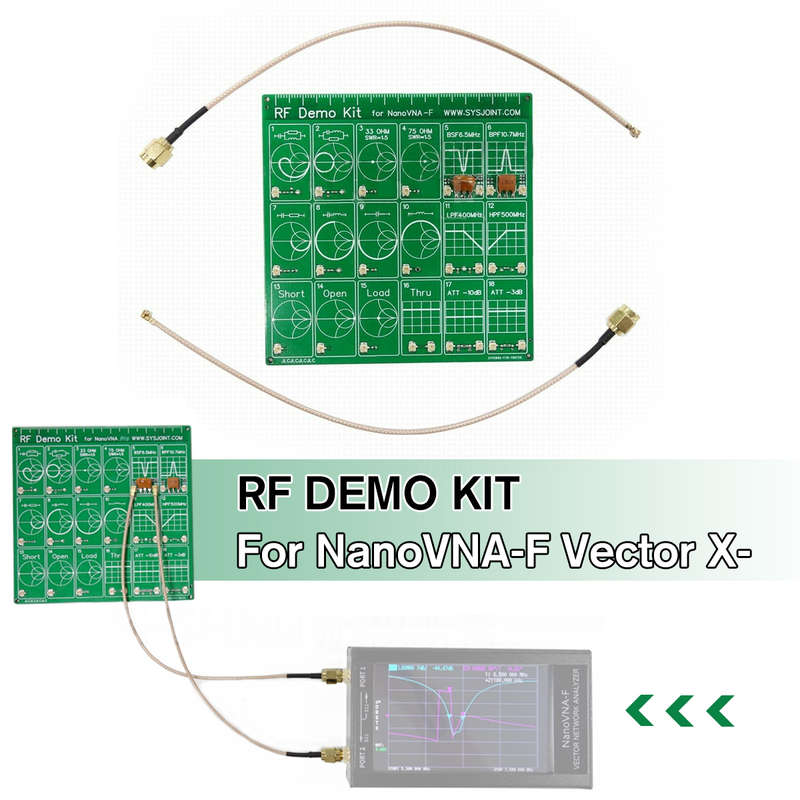

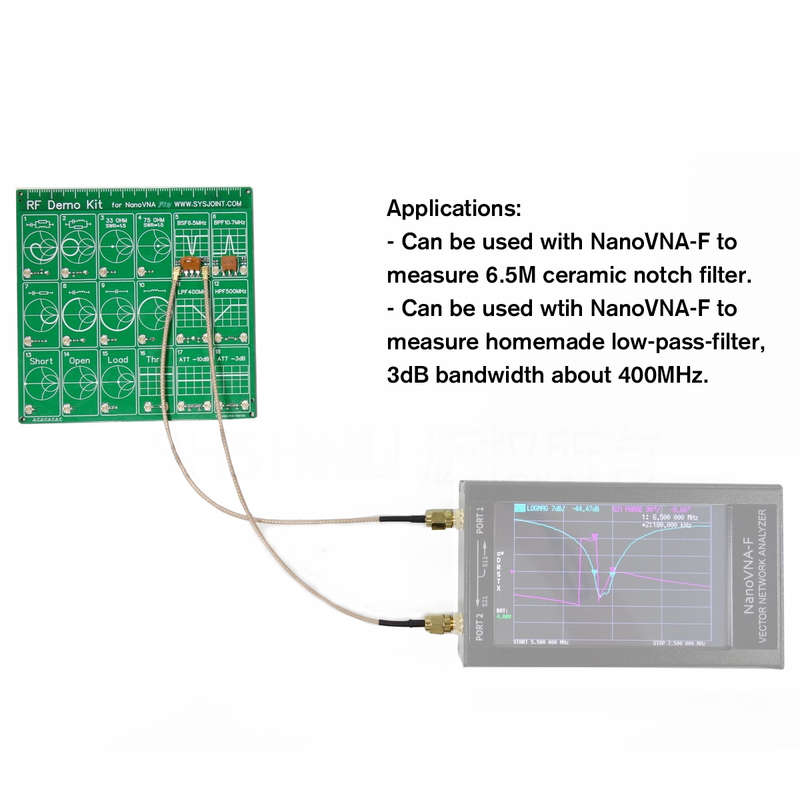

- Can be used with NanoVNA-F to measure 6.5M ceramic notch filter - Can be used wtih NanoVNA-F to measure homemade low-pass-filter, 3dB bandwidth about 400MHz Package Included:

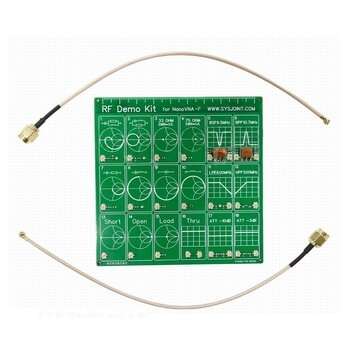

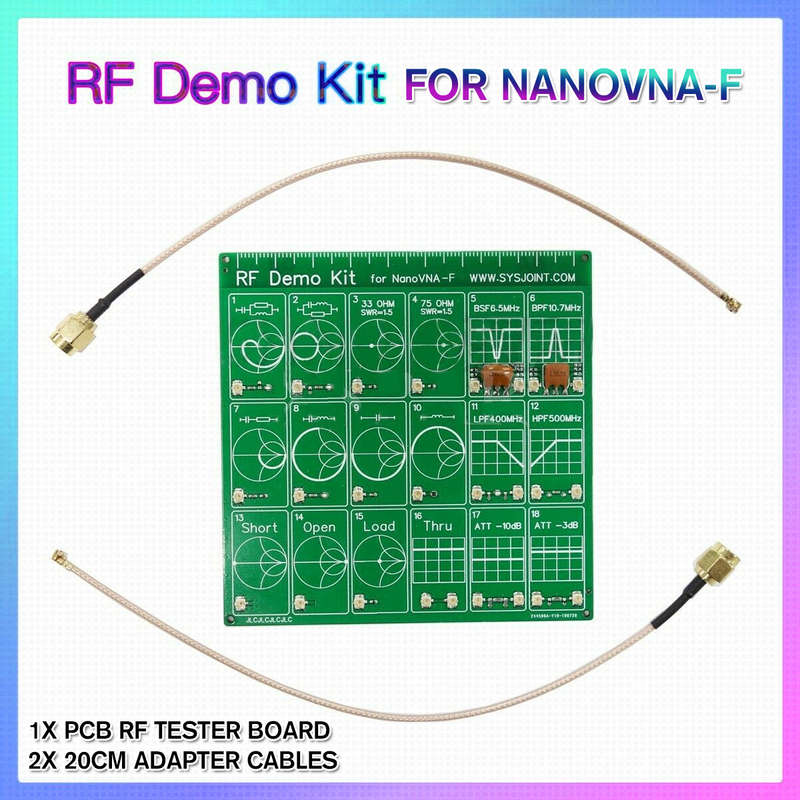

1 x PCB RF Tester Board 2 x 20cm Adapter Cables

Details Pictures:
