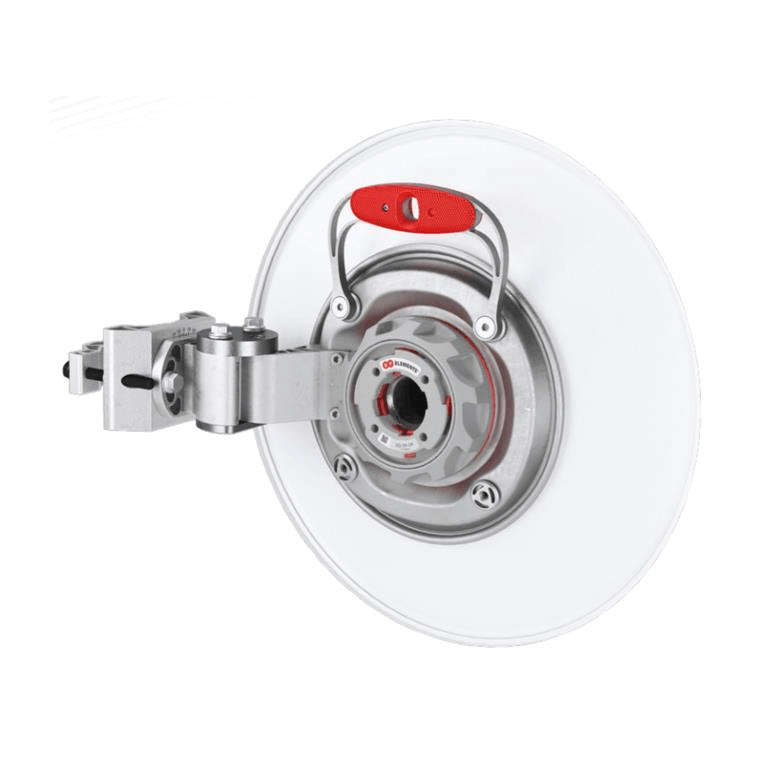

RF Elements 5100 Parabolic MIMO TP 27 UltraDish
PARABOLIC DISH ANTENNA WITH TWISTPORT™ CONNECTOR
UltraDish™ TP 27 is designed for subscriber module applications. Minimized sidelobes, wide frequency bandwidth, and stable gain in both polarizations assure dependable performance. Antenna reflector is made of aluminium to ensure a low weight and uniform shape. Our proprietary TwistPort™ waveguide connector enables intuitive radio connection and replacement.
Massive mount with improved grip and a wide range of applicable pole diameters makes the deployment easy and versatile. Stainless hardware comes with black coating to prevent from seizing at the installation.
SPECIFICATIONS:
Antenna Connection: TwistPort™ - Quick Locking Waveguide Port
Antenna Type: Parabolic Dish
Materials: UV Resistant ABS Plastic, Polycarbonate, Aluminium, Stainless Steel
Enviromental: IP65
Pole Mounting Diameter: 40-80 mm (1.5-3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible
Temperature: -40 °C to +60 °C (-40°F to +140°F)
Wind Survival: 160 km/h (100 mi/h)
Wind Load: 351/30 N - Front/Side at 160 km/h (100 mi/h)
Effective Projected Area: 2878/246 cm2 - Front/Side (446.1/38.1inch2 )
Weight: 3.7 kg (6 lbs) — single unit (one antenna)*
PERFORMANCE
Gain: 27.5 dBi
Frequency Range: 5180 - 6400 MHz
Azimuth Beam Width -6 dB: H 10° / V 9°
Elevation Beam Width -6 dB: H 9° / V 10°
Azimuth Beam Width -3 dB: H 7° / V 6°
Elevation Beam Width -3 dB: H 6° / V 7°
Beam Efficiency**: 61%
Front-to-Back Ratio (Min): 37 dB
COMPATIBLE WIRELESS PLATFORMS
- any TwistPort™ Adaptor
- any SIMPER™ Radio
