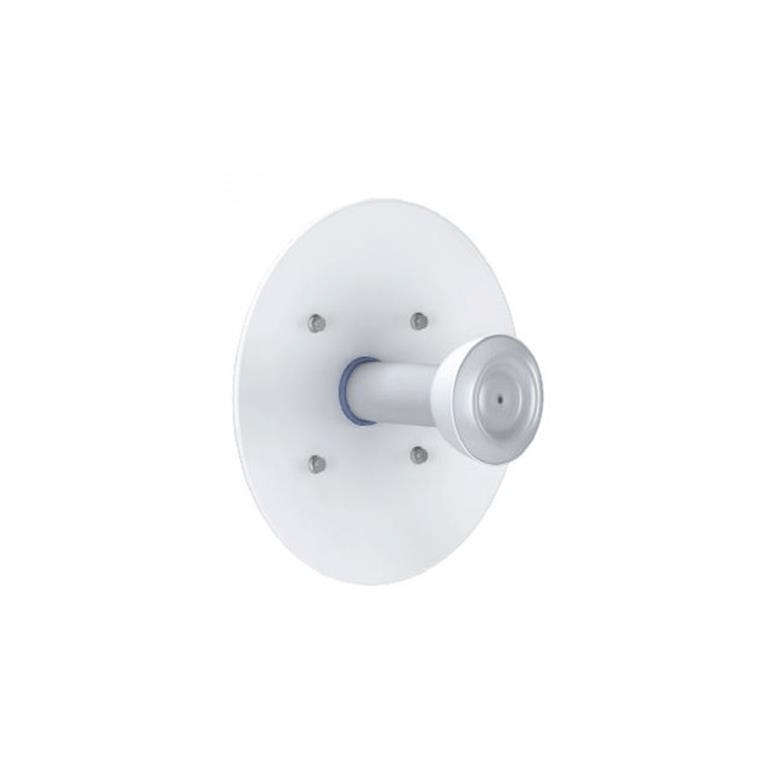

RF Elements 5150 Parabolic MIMO 21 dBi StarterDish

DIRECTIONAL PARABOLIC DISH ANTENNA

StarterDish™ antennas are designed for CPE applications. Antenna is light weight with their reflector made of aluminium. StarterDish™ antennas provide excellent beam performance in cost effective package. Antennas are easy to assemble.

Warning: harsh environment (coastal areas, chimney gases, chemical factories, volcanos) may cause premature oxidation of the StarterDish™ antenna body. For deployments in harsh environment we recommend using UltraDish™ antennas.

Key Features

Parabolic Dish 5150 - 5950 MHz, Gain 21 dBi, Comaptible with StarterAdapter™ SMA, C5X, PrismStation™

SPECIFICATIONS:

Antenna Connection: Waveguide Port

Antenna Type: Parabolic Dish

Materials: UV Resistant ABS Plastic, Aluminium, Steel, Zinc Plated Steel & Stainless Steel Hardware

Enviromental: IP65

Pole Mounting Diameter: 20-55 mm (0.8-2.1 inch); Recommended as close to 55 mm (2.1 inch) as possible

Temperature: -35°C to +55°C (-31°F to +131°F)

Wind Survival: 160 km/h (100 mi/h)

Wind Load: 69/13 N - Front/Side at 160 km/h (100 mi/h)

Effective Projected Area: 563/104 cm2 - Front/Side (87.3/16 in2 )

Mechanical Adjustment: ± 15° Elevation

Weight: 1.2 kg (2.6 lbs) — single unit*

PERFORMANCE

Gain: 21 dBi

Frequency Range: 5150 - 5950 MHz

Azimuth Beam Width: -6 dB H 12° / V 12°

Elevation Beam Width: -6 dB H 12° / V 12°

Azimuth Beam Width: -3 dB H 8° / V 8°

Elevation Beam Width: -3 dB H 8° / V 8°

Beam Efficiency*: 28%

Front-to-Back Ratio (Min): 24 dB
