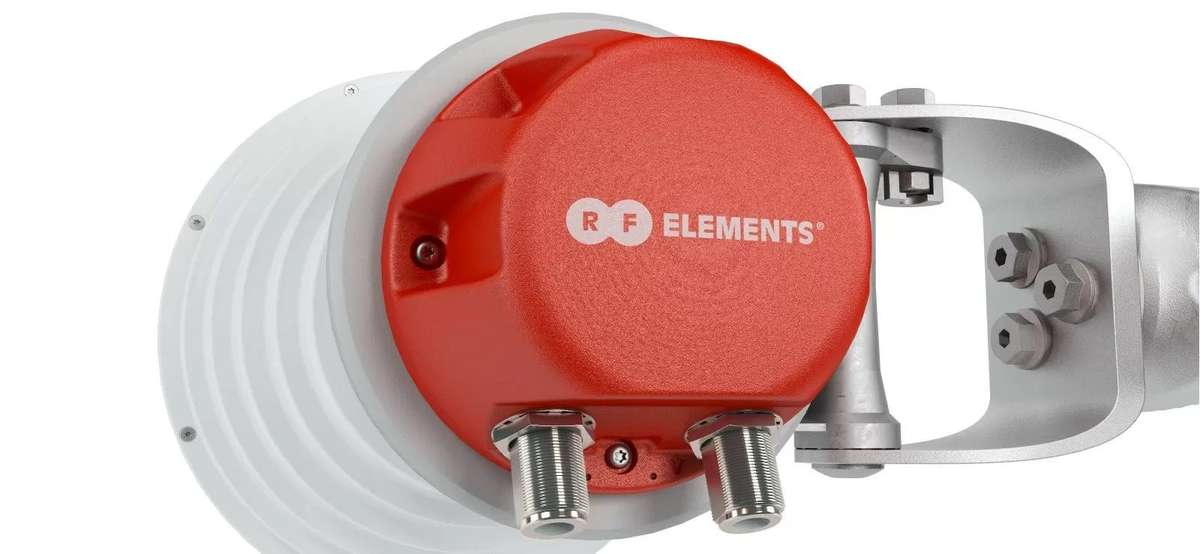

RF Elements SH-CC-5-90 Symmetrical Horn Antenna 5GHz 10dBi – Dual N-Female Connectors –

The RF Elements SH-CC-5-90 is a symmetrical horn sector antenna engineered for noise rejection, reliable coverage, and high performance in the 5 GHz band. Designed with dual N-female connectors and 67° beamwidth, it offers excellent front-to-back ratio, robust weather resistance (IP55), and wide mechanical tilt adjustment. Ideal for use in WISP deployments, high-density point-to-multipoint (PtMP) setups, or urban coverage zones.

This open box unit is unused, fully functional, and includes original mounting components.

Key Features & Benefits
Symmetrical horn design with 67° beamwidth and 90° 6dB width for broad, consistent coverage
10 dBi gain across 51806100 MHz with low VSWR (max 1.8)
Dual-linear H + V polarization for maximum link quality
Built for durability: UV-resistant materials, IP55-rated enclosure, and 160 km/h wind survival
Tool-less mounting bracket supports poles from 1586 mm diameter

Ideal Uses
Point-to-multipoint wireless deployments in urban or high-noise environments
WISP base station coverage with symmetrical pattern for even user distribution
Noise-isolated 5GHz sector applications in mixed terrain
Coverage expansion for community broadband or industrial connectivity

Specifications

Condition: device in open box. Fully functional and unused.

Model: SH-CC-5-90
Brand: RF Elements
Antenna Type: Symmetrical Horn
Frequency Range: 5180 6100 MHz
Gain: 10 dBi
Polarization: Dual Linear (H + V)
Azimuth / Elevation Beamwidth 3 dB: H: 67° / V: 67°
Azimuth / Elevation Beamwidth 6 dB: H: 90° / V: 90°
Front-to-Back Ratio: 28 dB
VSWR Max: 1.8
Impedance: 50 Ohm
Radio Connection: 2 x N-Female Bulkhead Connectors
Mechanical Tilt: ± 25°
Wind Survival: 160 km/h
Wind Load: 26 N @ 160 km/h
IP Rating: IP55 (weather resistant)
Mounting: Pole mount (1586 mm diameter)
Materials: UV Resistant Polycarbonate, Polypropylene, Aluminium, Zinc, Stainless Steel
Weight: 1.7 kg (unit only) / 2.4 kg (with packaging)
Box Dimensions: 31 × 32 × 24 cm
Warranty: 3 Month Carry-in Warranty
What's in the Box: Horn Antenna
