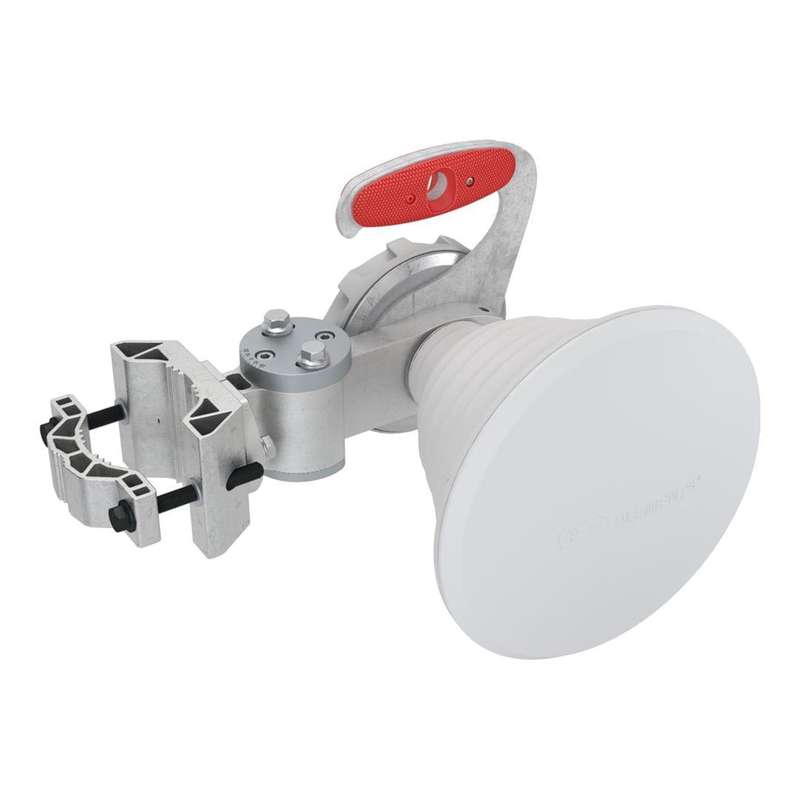

RF Elements SH30WB Wideband 30 Degree Symmetrical Horn Antenna

Discover 22,000+ In-Stock Products!

https://www.bobshop-/store/FirstShop

Brand New & Sealed with Manufacturer Warranty!

Available: Mon—Fri, 08:00—17:00 - Closed on weekends & public holidays

RF Elements SH30WB Wideband 30 Degree Symmetrical Horn Antenna

Easy Installation

Symmetrical Horn WB Antennas come pre-assembled from the factory and ready for immediate deployment. The installation is very easy and requires only a single tool.

Robust and Durable

Symmetrical Horn WB Antennas are built to last and to resist any weather conditions. The major improvement vs previous generations is that we replaced aluminum diecast with pure aluminum to ensure superb durability in outdoor deployments even in the harshest environments. We use sheet metal aluminum that is formed using spinning, stamping and welding in highly innovative proprietary manufacturing process never used before in antenna industry.

Along the aluminum sheets we use extruded aluminum, corrosion resistant zinc alloy, high quality ABS plastic and high density polyethylene. We pioneered the use of stainless steel hardware in WISP industry. We use exclusively stainless steel hardware in all our products, We also pioneered the use of surface coating on stainless hardware to prevent galling - Symmetrical Horns WB are no exception.

New Bracket Features

New improved bracket design brings brand new features that address multiple requirements and make field deployment easy as pie.

Mounting to Different Pole Diameters

The bracket is designed for optimal grip on wide range of pole diameter. We recommend mounting on the largest possible pole diameter that fits the recommended range to achieve the best grip of the bracket. Reverse the bracket clamp to achieve the best possible bracket attachment on thinner tubes.

Easy Right / Left Side Flip

New improved bracket allows for easy flip for left side or right side of the pole installation. The side position of the bracket arm is locked, so the flipping is easy and safe. The process is very intuitive and there is no need to reverse radome.

Easy Mounting on Horizontal Tube

The bracket allows for easy mounting of the antenna on horizontal tube. Release the locking screw and turn the bracket arm to find the position that locks the bracket at 6 o clock, then secure the locking screw.

Switching to ± 45° Dual Slant

Because of Symmetrical Beam shape, switching from H+V to ± 45° Dual Slant can be done by mechanical rotation of the antenna. Simply release the locking screw and reset the antenna to corresponding position. You may have to flip the Right to Left (or vice versa) side of the mount at the same time. Both positions of + and - 45° are safely recognizable when rotating the bracket arm. Then lock the bracket screw and you are all set!

Three Different Radiation Angles

Symmetrical Horn WB offer three different radiation angles covering 30°, 60° and 90° beam width. They offer major preferred angular fractions of the circle helping network designers to create stable sectors using antennas with precise and predictable coverage patterns.

Specifications
