RF Modulator - AV to RF Converter with IR Extender

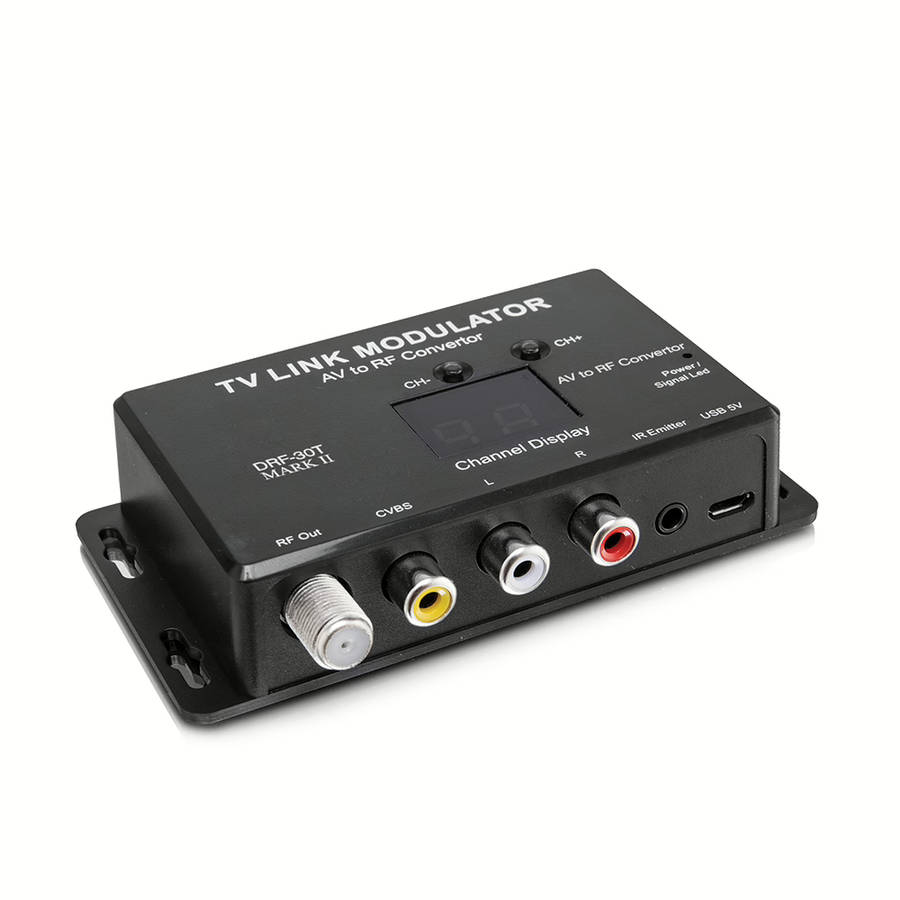

RF Modulator AV to RF Converter

This RF TV Link Modulator is used to enable you to change channels from a remote room. For installation examples please refer to the DSTV Installation Diagrams & User Bands page for more information on installation.

Functions

• Designed for Multichoice DSD 5U/5S Decoders / Explora 3, DSTV Ultra and Newer Models without RF Ports
• Powered from Decoder
• TV link Functionality to control Decoder from Remote Location
• 4 Pre-set RF Channels
• Slim Compact Design
• PAL I/PAL DK/PAL BG
• TV Format: PAL
• Sound Carrier Frequency: 4.5/5.5/60./6.5Mhz
• Remote Distance: 10m
• Transmitter Distance:  20cm
• Remote Control Frequency: 35KHz
• Power: USB 5 Volt

RF Frequency Points

• 471.25MHz (Channel 21)
• 519.25MHz (Channel 27)
• 623.25MHz (Channel 40)
• 783.25MHz (channel 60)

RF Output Impedance

• • 75OHM Unbalanced

Package Contents

• RF Modulator
• Emitter IR Cable (Plugged into RF Modulator and attached to Decoder as per below pictures for various models).
• Micro USB Power Cable Attach to USB port on Decoder or HDTV for Powering the RF Modulator
• The IR Emitter from RF Modulator has different locations to be placed on different decoders see below Yellow Dot Placement Explora 2

This RF TV Link Modulator is used with the DSTv Decoders without RF Ports such as the decoders below to change channels from a remote location

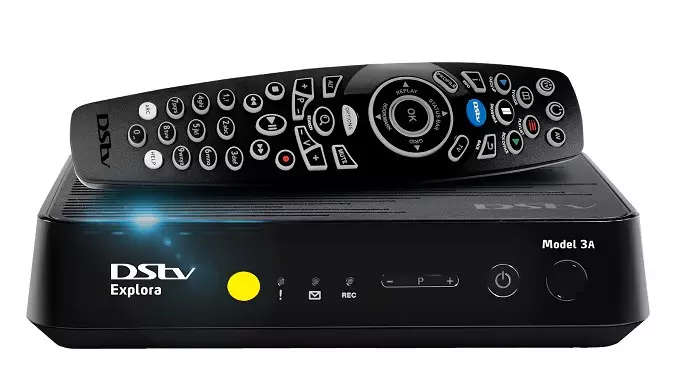

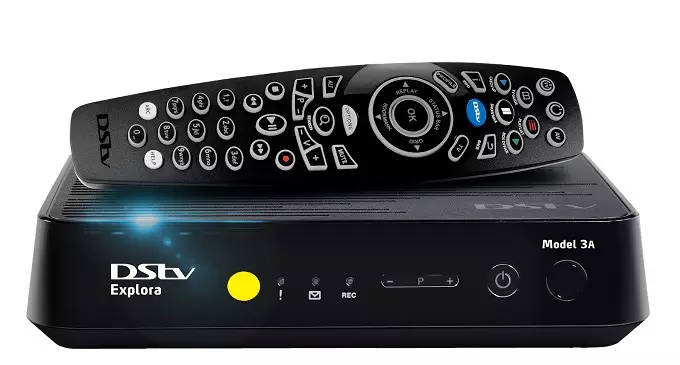

Explora 3A

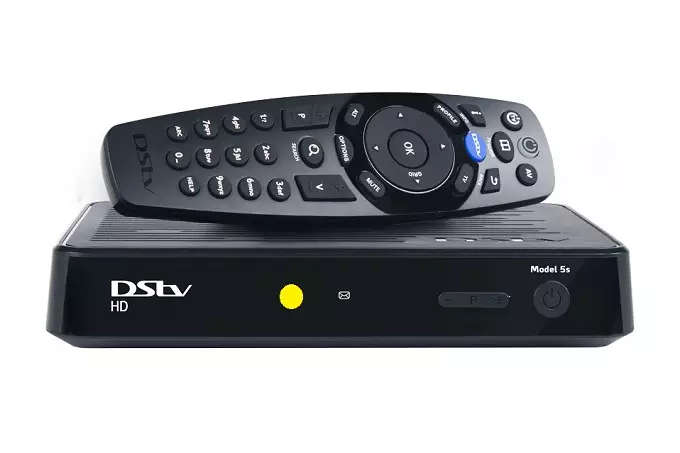

DSTV HD Decoder Model 5s

DSTV HD Decoder Model 6s

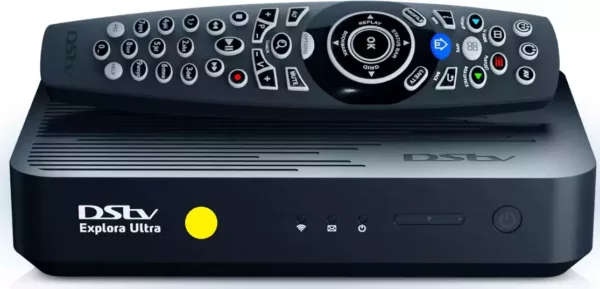

DSTV Explora Decoder Ultra
