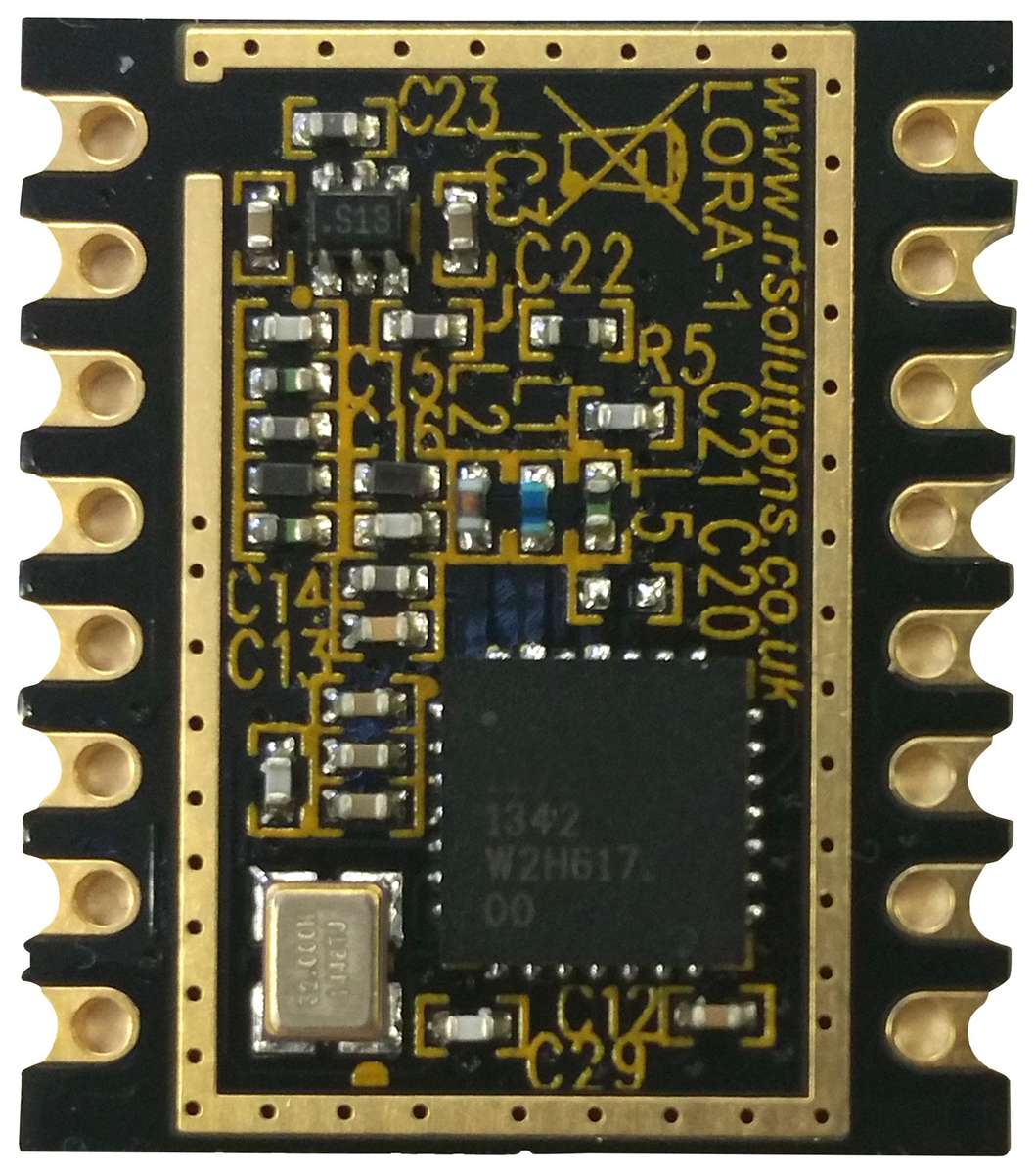

Rf Solutions (RF-LORA-868-SO) Long Range Transceiver, Plug and Play

Long Range Transceiver, Plug and Play Radio Module, Features Semtech SX1272LoRa, 16 Km RangeProduct OverviewThe RF-LoRa module is an extremely high performance, cost effective radio modulefeaturing the Semtech SX1272 LoRa long range transceiver, providing ultra-longrange, spread spectrum communication and high interference immunity withinminimal current consumption. This module including crystal, RF Changeoverswitch, impedance matching network and track layout provide a simple digitalinterface and direct antenna connection. This enables a plug in RF solution withmaximum efficiency. Programming of the module is via SPI interface. Using theRF-LoRa enables a fast and easy to market solution with cost effective licenceexempt hardware. The RF-LoRa Module is CE compliant and pending FCC approval.Providing that certain procedures are followed, this module can be used in afinal application without further FCC approval, or testing.Up to 16km rangeIntegrated LoRa Modem Semtech SX1272Built in RF switchHigh sensitivity: down to -130 dBmBuilt-in bit synchronizer for clock recoveryBuilt-in temperature sensor and low battery indicatorSmall Form Factor: 23mm x 20mmApplicationsCommunications & Networking, RF Communications, Automation & Process Control,WirelessProduct InformationRF Modulation: FSK, GFSK, GMSK, LoRa, MSK, OOKData Rate Max: 300KbpsFrequency Max: 868MHzSensitivity dBm: -130dBmSupply Voltage Min: 1.8VSupply Voltage Max: 3.6VTransmit Power: 20dBmModule Interface: SPISupply Current: 125mARF Transceiver Applications: Alarms, Home Automation, Irrigation Systems, LongRange Telemetry, Meter Reading, Sensor NetworksProduct Range: -
