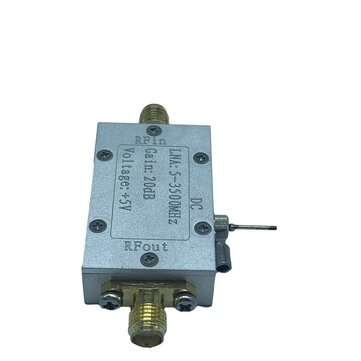

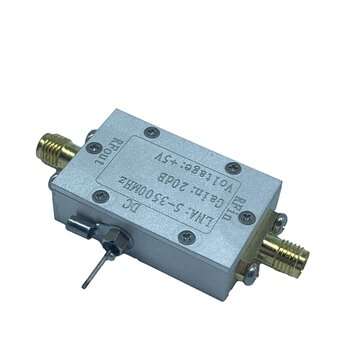

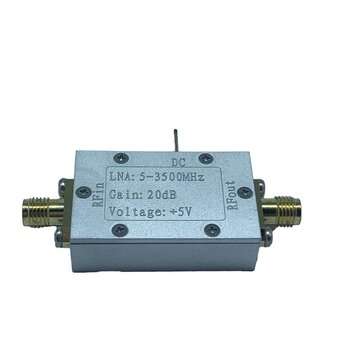

RF Wideband Low Noise Amplifier 5-3500MHz Gain 20dB High Frequency Amplifier Board

20 available / new

R1,029.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3515

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643386949

Application:
This amplifier has the advantages of wide frequency range, stable gain, small noise figure, large dynamic range (+20dBm@1dBP), etc. It is especially suitable for various RF receiving front-end circuits to increase communication distance! Widely used in shortwave, FM broadcasting, remote control receivers, cable TV signal amplifiers, Beidou, GPS satellite navigation, 2.4G Bluetooth, WIFI receiver RF front-end and other places where low noise and small signal RF amplification is required!
Amplifier parameter index:
Working frequency: 5-3500MHz Amplification gain: 20dB (typical value) Noise figure: 1.3 (typical value) Maximum output power: +20dBm (100mW) @1dB compression point Working current: 80mA (5V) Power supply voltage: 3.3-6VDC Product appearance size: length 42mm, width 22mm, height 10mm Product weight: 21.4g System impedance: 50 ohms F= 5MHz, gain=23dB F= 30Mhz gain=23dB F= 100MHz gain=23dB F= 150Mhz gain=23dB F= 420MHz gain=22dB F=1500MHz gain=20dB F=3000MHz gain=18.7dB F=3500MHz gain=17.6dB
Package includes:
1 xAmplifier Board
