Specifications:
Type:RF Power Amplifier
Power Supply: 6V (500mA maximum power output)
Gain: 12DB 2450MHz
Working Frequency: 400-2700MHz
Input and Output Impedance: 50Ω
P1dB=30dB-1W 2450MHz (default delivery)
Features:
1. Wide Frequency Range: Covers a broad spectrum from 400MHz to 2700MHz, suitable for multiple RF applications including bluetooth and ham radio.
2. High Gain Performance: Delivers a gain of 12dB at 2450MHz for robust signal amplification, ensuring enhanced communication capabilities.
3. Efficient Power Output: Designed to operate efficiently with a 6V power supply, supporting a maximum power output of 1W.
4. Stable Impedance: Consistently maintains an input and output impedance of 50Ω, ideal for high-performance RF environments.

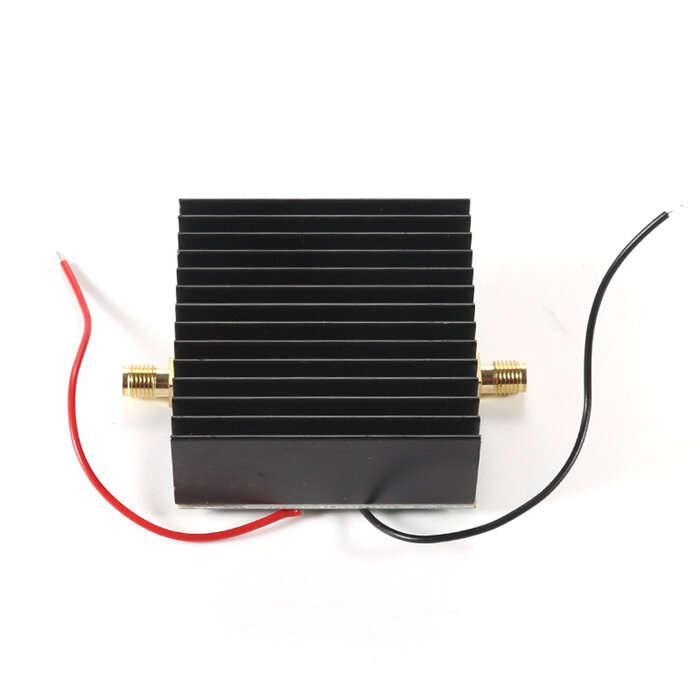

5. Reliable Construction: Equipped with a heat si
