Neotronics SA brings you:

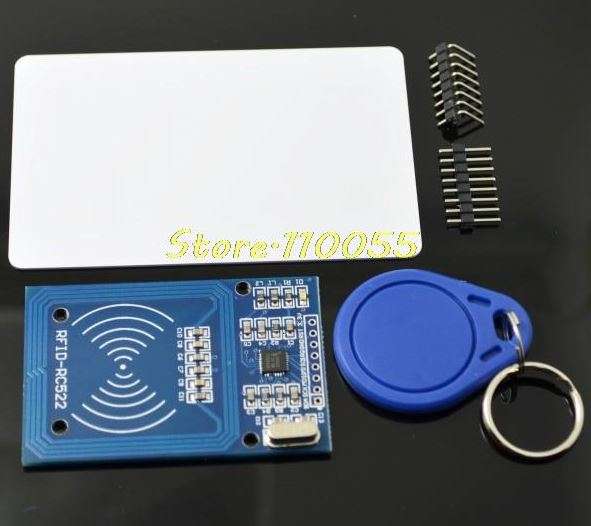

RFID - MFRC522 RF RC card sensor module - 5Set
MF RC522 is applied to the highly integrated read and write 13.56MHz contactless communication card chip, NXP launched by the company for the "table" application of a low-voltage, low-cost, small size of the non-contact card chip to read and write, smart meters and portable handheld devices developed better choice. The MF RC522 use of advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols. 14443A compatible transponder signals. The digital part of to handle the ISO14443A frames and error detection. In addition, support rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products. MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit / s. As new members of the 13.56MHz reader card series of highly integrated chip family, MF RC522 MF RC500 MF RC530.
Operating current :13-26mA / DC 3.3V
idle current :10-13mA / DC 3.3V
Sleep Current: <80uA
peak current: <30mA
Operating frequency: 13.56MHz
Supported card types: the mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro the mifare Desfire
product physical characteristics: size: 40mm × 60mm
Environment Operating Temperature: -20-80 degrees Celsius
Environment Storage Temperature: -40-85 degrees Celsius
ambient relative Humidity: 5% -95% relative humidity.
