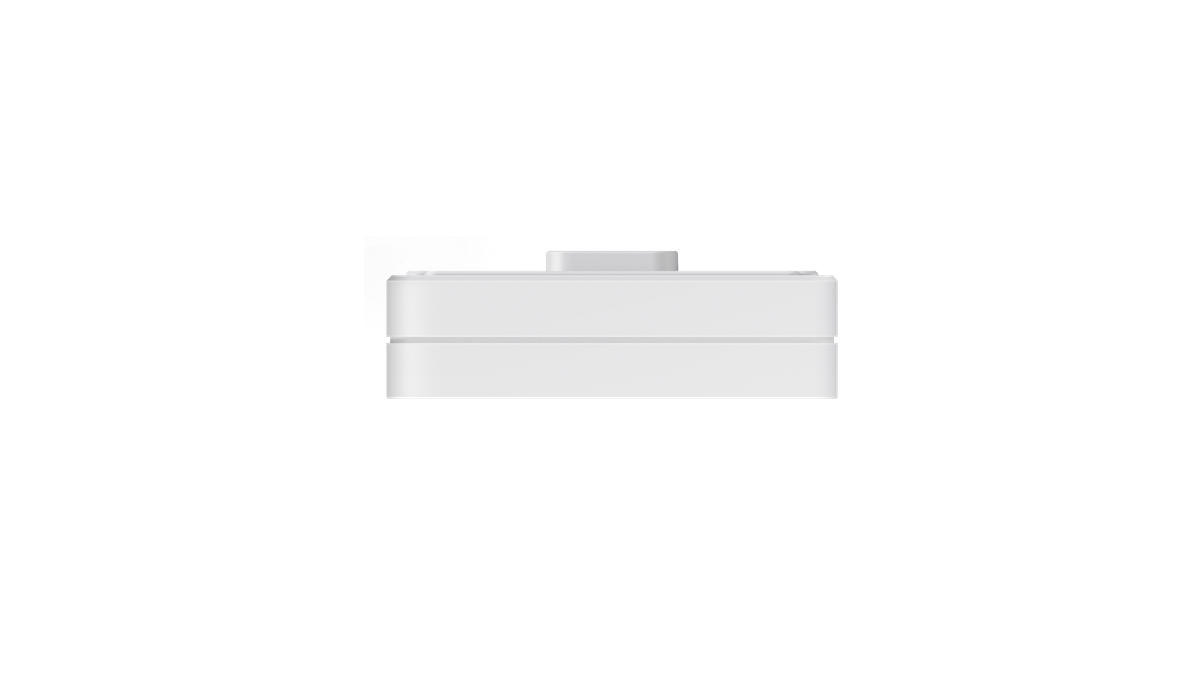

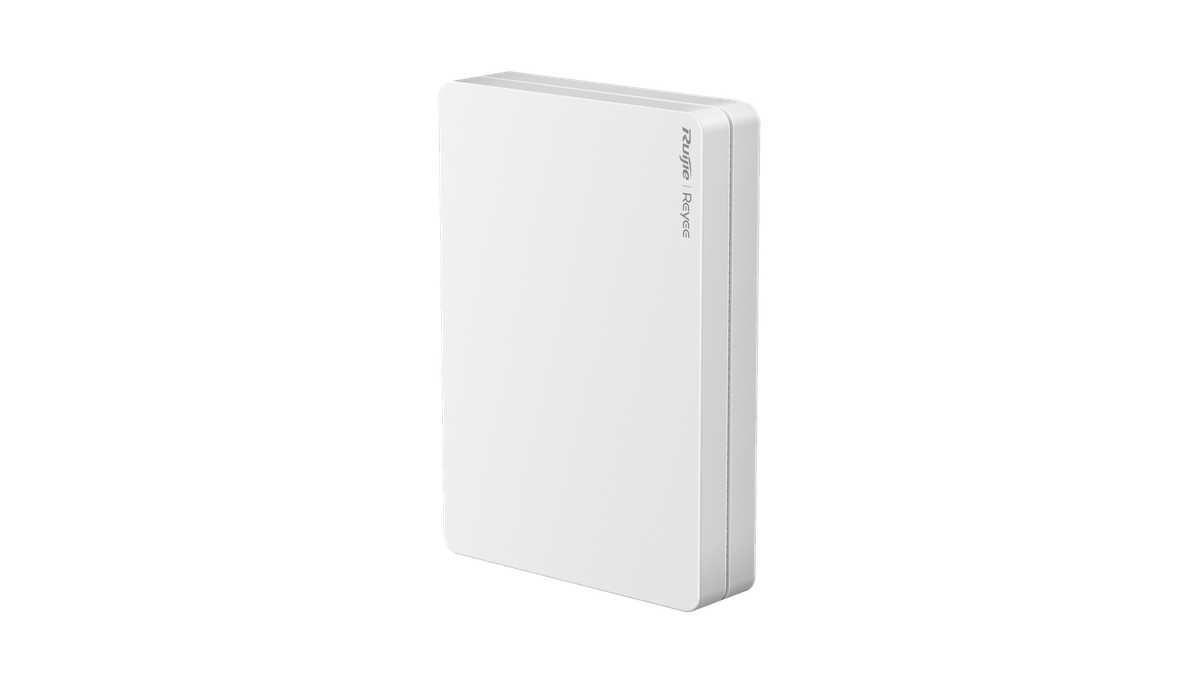

RG-RAP1260, Ruijie/Reyee Wi-Fi 6 AX3000 Dual-Band Wall Plate Access Point

Refer to: https://reyee.ruijie.com/en-global/products/reyee-wireless/reyee-wall-ap/rap1260/

Two of them unlabeled

Product Type: Wall AP

Hardware Specifications

Radio design: Dual-radio

4 spatial streams

2.4 GHz: 2 x 2, MU-MIMO

5 GHz: 2 x 2, MU-MIMO

Maximum wireless data rate: 2974 Mbps

6 GHz wireless data rate: No

5 GHz wireless data rate: 2401 Mbps

2.4 GHz wireless data rate: 573 Mbps

Antenna: 5 GHz: 1 built-in omnidirectional antenna

Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas

Product dimensions (W x D x H): 86 mm x 24 mm x

124 mm (3.39 in. x 0.94 in. x 4.88 in.) (excluding the mounting bracket)

Color: White

Weight: 0.26 kg (0.57 lbs.) (without packaging materials)

Number of 10/100/1000BASE-T ports: 5

Power supply: PoE/PoE+

Local power supply: No

Dimensions of the DC connector: No

PoE budget: No

Maximum power consumption: 12 W

Operating temperature: 0°C to 40°C (32°F to 104°F)

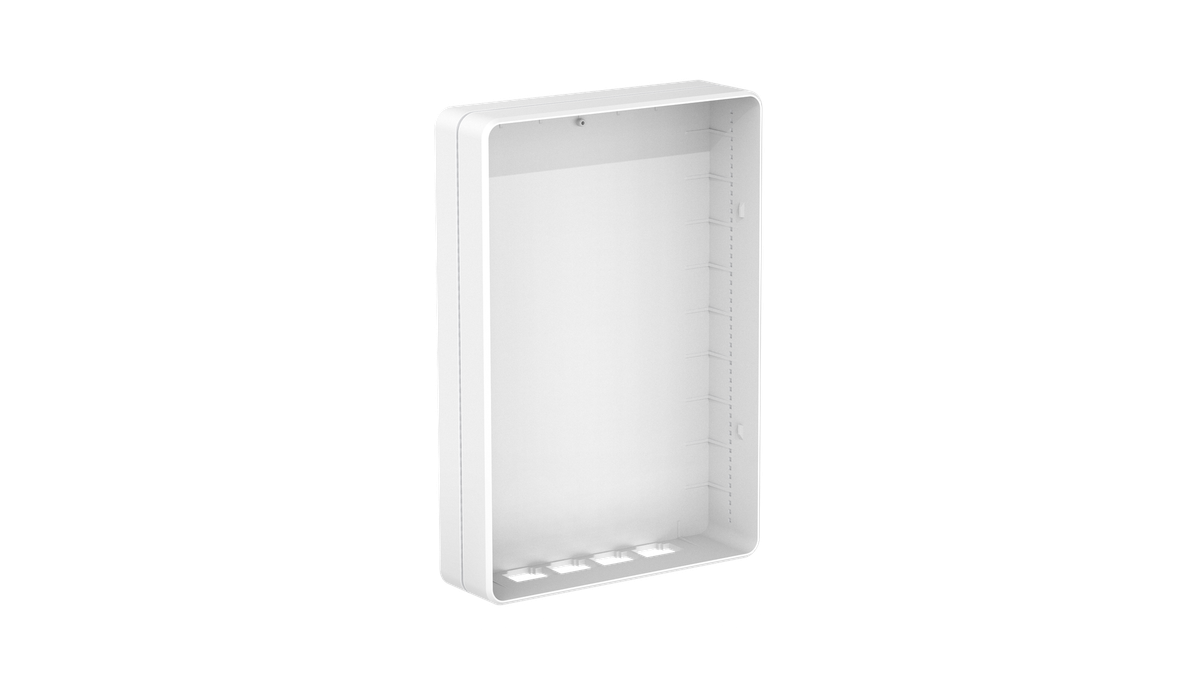

Mounting options: Junction box

IP rating: IP41

Maximum number of associated wireless clients: 64 (2.4 GHz)

256 (5 GHz)

256 (2.4 GHz and 5 GHz enabled)

Maximum number of devices that can be managed: 300

IPv6: Yes

"Product images are from the manufacturer's official website. Actual products may vary slightly from the images shown due to design changes or production batches."
