RGB led module

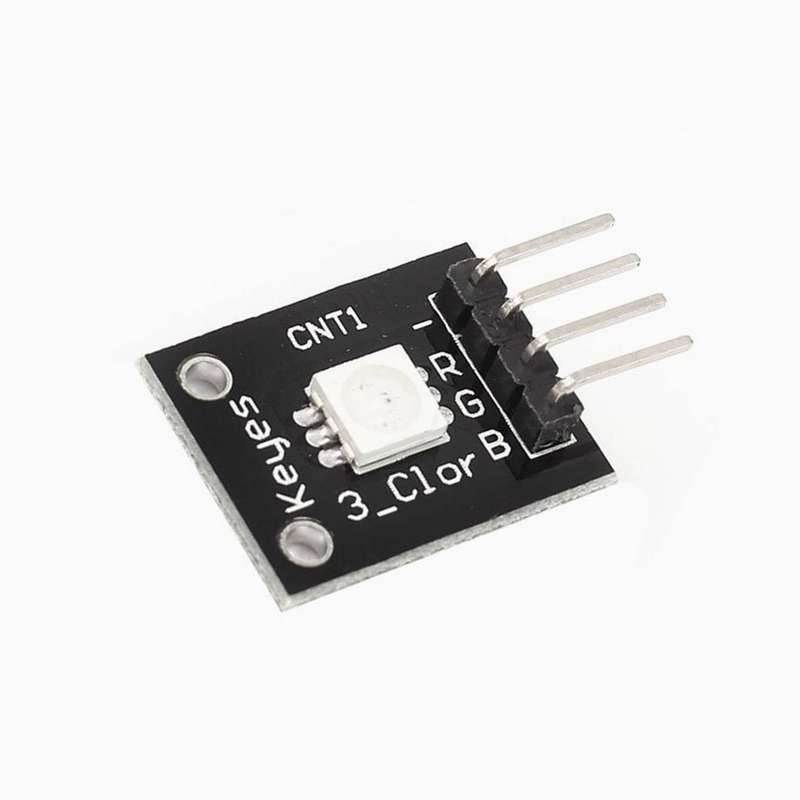

The KY-009 is a small breadboard-friendly RGB LED module mounted on a small PCB making it very versatile. Using the Arduino PWM function almost any color can be created. Limiting resistors are required when connecting to Arduino pins.

SMD RGB LED Module Specs:

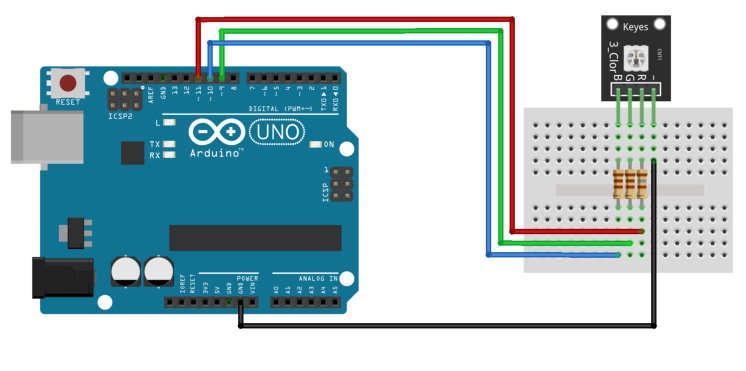

Recommended Current Limiting Resistors and Wiring:

• R - Red: 180 Ohm resistor
• G - Green: 100 Ohm resistor
• B - Blue: 100 Ohm resistor

int redPin = 11; int greenPin = 10; int bluePin = 9;   //uncomment this line if using a Common Anode LED //#define COMMON_ANODE   void setup() {  pinMode(redPin, OUTPUT);  pinMode(greenPin, OUTPUT);  pinMode(bluePin, OUTPUT);  }   void loop() {  setColor(255, 0, 0); // red  delay(1000);  setColor(0, 255, 0); // green  delay(1000);  setColor(0, 0, 255); // blue  delay(1000);  setColor(255, 255, 0); // yellow  delay(1000);   setColor(80, 0, 80); // purple  delay(1000);  setColor(0, 255, 255); // aqua  delay(1000); }   void setColor(int red, int green, int blue) {  #ifdef COMMON_ANODE  red = 255 - red;  green = 255 - green;  blue = 255 - blue;  #endif  analogWrite(redPin, red);  analogWrite(greenPin, green);
