RGB Strip light controller with remote 12Vdc 3 x 2A per channel

 RGB STRIP LIGHT CONTROLLER WITH REMOTE

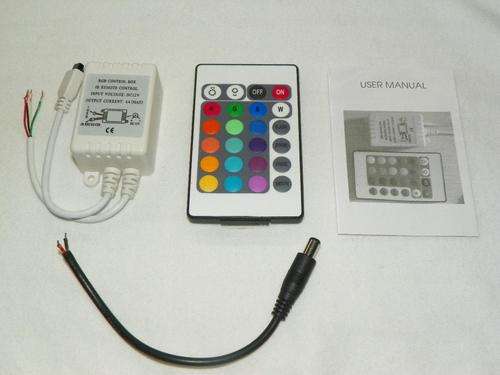

PAKAGE CONTENTS:

1 X RGB control box

1 x Remote (incl battery) with on/off

1 x Power cable

1 x Instructions manual

Specifications:

1.Type:24Key Remote Controller
2. Connection mode: Common Anode(+)
3.Input: 12V
4.Output: 12V
5.Max load current: 2A each color
6.Output: three CMOS drain-open output
7.Working Temperature: -20°C-60°C
8.Mode & Pattern:

16 colors, 5 light pattern: Static/Flash/Strobe/Fade-change/RGB Smooth-change
16-classes Static Mode Dim Control
16-Speeds Control in Flash / Strobe / Fade-change / RGB Smooth-change

9.Control box dimension: 50mm x 34mm x 22mm ± 0.2mm
10.Remote controller dimension: 85mm x 52mm x 6mm ± 0.2mm
11.Remote controller battery: 1 x CR2025 (Included)
12.Control range: 10cm - 500cm RGB LED Strips
13.Support 10 meters SMD 5050 30LEDs/m LED Strips or 5 meters SMD 5050 60LEDs/m LED Strips

BIG SPECIAL

This batch of RGB controllers is still brand new and sealed in its box.

This batch of controller's colors is misplaced on the remote.

The strobe button also fades the lights.

The red, green, blue and white buttons displays the colors correctly all the other colors have moved one down.

So if you press orange it will display lighter orange and if you press the lighter orange it will display the yellow and so on.

All the colors are still there they are just under a different button.

I've discribed the product to the best of my ability if you have any more questions please contact me.
