SELECTED OPTION:
TYPE: B

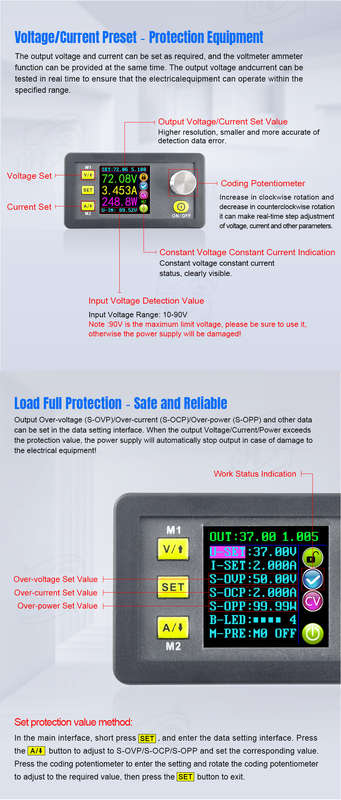

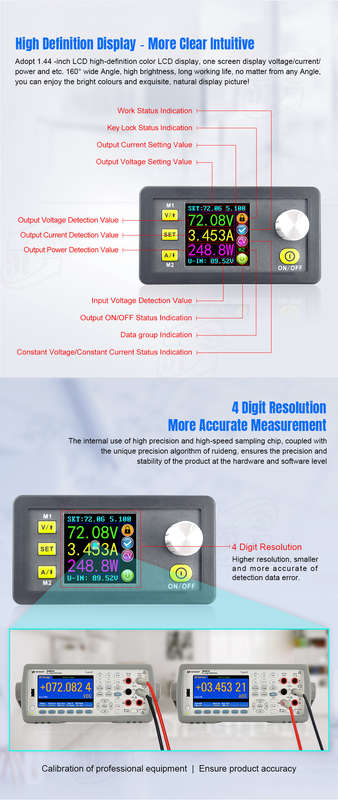

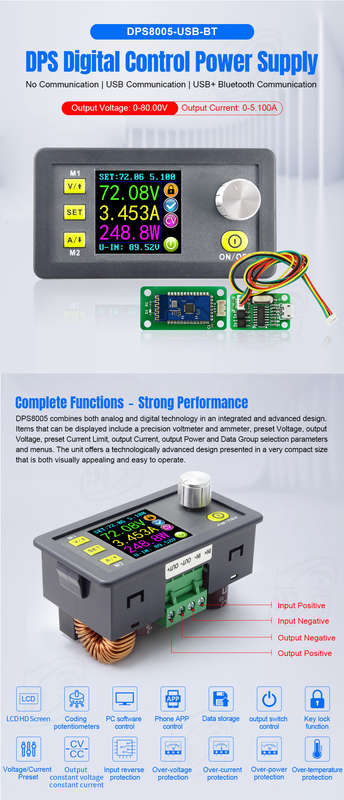

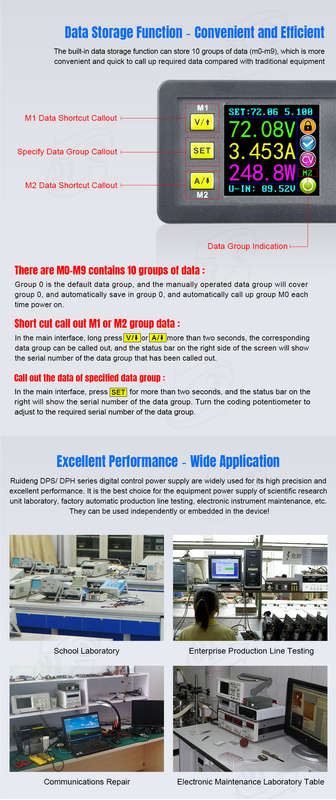

Information: The programmable Power supply offers constant Current and constant Voltage and combines both analog and digital technology in an integrated and advanced design. The fully adjustable output ranges from 0-80.00V in 0.01V (10mV) steps and the fully adjustable Current Limited output ranges from 0-5.100A in 0.001A (1mA) steps. The unit offers non-volatile power off parameter storage and 10 programmable preset memory Data Groups with a quick recall function for groups 1 and 2. The digital control interface offers a comprehensive feature set not available on analog only power supplies. The keypad and rotary control offer simple input and selection of all required settings whilst the full colour LCD offers detailed display of the extensive but easily read information relating to system operation and performance. Items that can be displayed include a precision voltmeter and ammeter, preset Voltage, output Voltage, preset Current Limit, output Current, output Power and Data Group selection parameters and menus. Notification icons and text include indications such as output enabled or disabled, Constant Current or Constant Voltage mode of operation, abnormal condition warning, keypad locked or unlocked state and the Data Group in use. The Data Setting interface allows full adjustment of Over-Current, Over-Voltage and Over-Power protection values, Data Group settings and LCD brightness. The unit offers a technologically advanced design presented in a very compact size that is both visually appealing and easy to operate.

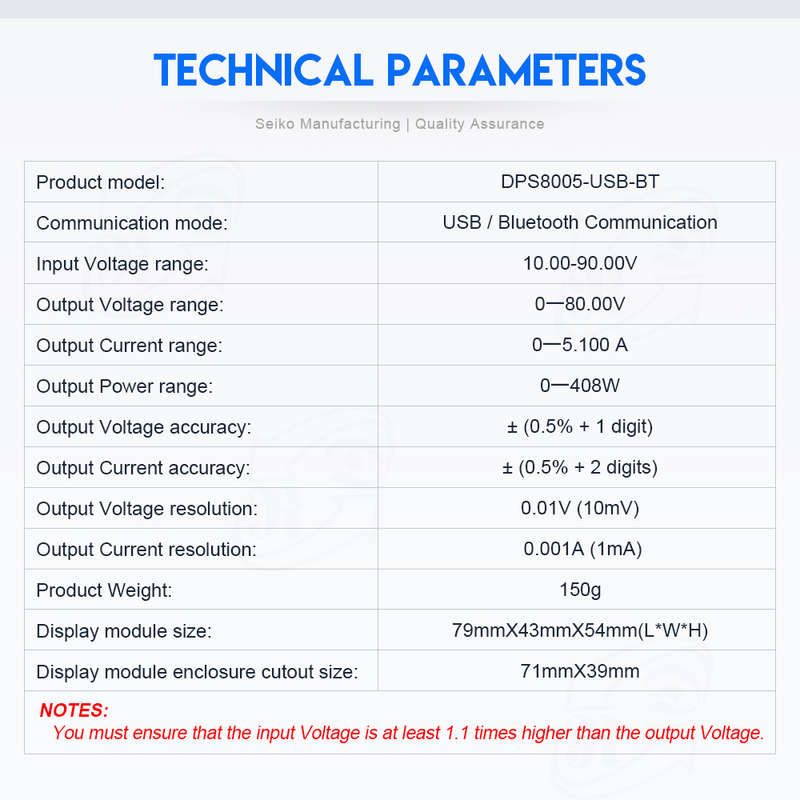

Technical parameters: Input Voltage range: 10.00-90.00V Output Voltage range: 0-80.00V Output Current: 0-5.100A Output Power range: 0-408W Product Weight: 150g Display module size: 79*43*54(mm) (L*W*H) Display module enclosure cutout size: 71mm*39mm Output Voltage resolution: 0.01V (10mV) Output Current resolution: 0.001A (1mA) Output Voltage accuracy: ± (0.5% + 1 digit) Output Current accuracy: ± (0.5% + 2 digits)
Pay attention before you buy it:

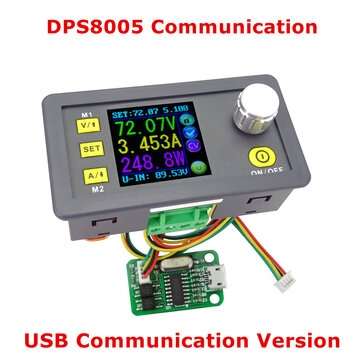

1. There are 3 version,No communication version,communication + USB version,communication + USB+ BT (bluetooth).
2. Forno communication version, there is no commnunication program and hardware to support, not any communication function, can`t be updated.
Note:

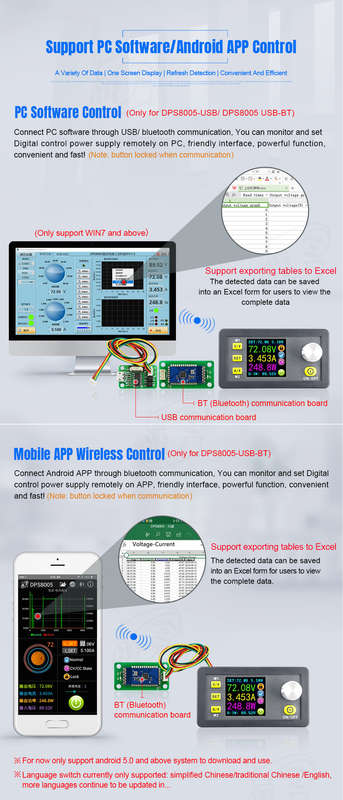

1. You must ensure that the input Voltage is at least 1.1 times higher than the output Voltage. 2. When the unit mounted in an enclosure it is absolutely vital to ensure appropriate ventilation for heat dissipation. 3.This is file for upper computer installation and software, you can download:
Packge included: (optional)
1 x No communication version(optional)
1 x Communication + USB version(optional)
1 x Communication + USB+ BT (bluetooth)(optional)
