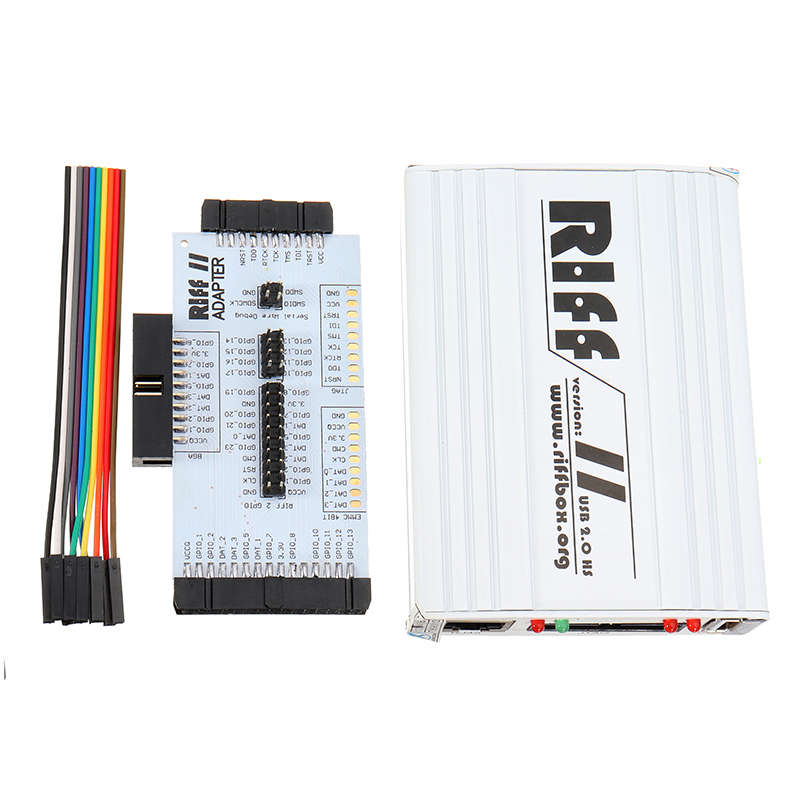

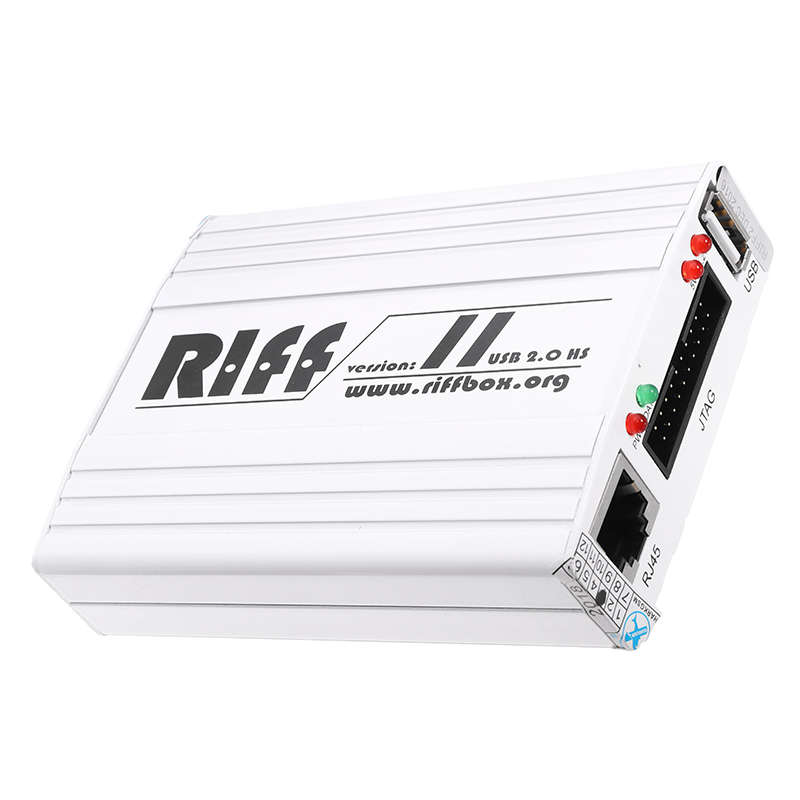

RIFF BOX JTAG For HTC SAM SUNG Huawei Riff Box Unlock And Flash And Repair Tools
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
ARM7/ARM9/ARM11 PXA3xx, PXA270, Cortex-A8, OMAP850, Cortex-A9 Dual cores supported
Multiple devices on JTAG chain supported, TAP number selection available
Any custom voltage level selection within the range of ~1.4V to 3.3V
TCK / Adaptive clocking selection available
Halt core (NRST is not changed)
Reset core (NRST is applied before halt)
Run core
Direct Memory Read (by 8/16/32-bit bytes/half-words/words)
Direct Memory Write (by 8/16/32-bit bytes/half-words/words)
Access to ARM core control registers (coprocessor 15)
Program code breakpoints
Custom scripting and DCC loader supported (compatible with Trace32 scripts)
Custom GDB Server Available
I/O pins detection – Unique feature available with RIFF Box JTAG ONLY!
RIFF JTAG Box Supported Controllers
OneNAND (connected directly to the MCU’s address space)
CFI Compliant NOR with CFI Com mand sets 0×0001, 0×0002, 0×0200 and 0×0003
NAND Controller in MSM6250, MSM6250A
NAND Controller in QSC6055, QSC6085, QSC6240, QSC6270
NAND Controller in MDM6085, MDM6200, MDM6600
NAND Controller in MSM6245, MSM6246, MSM6270, MSM6275, MSM6280, MSM6280A, MSM6281, MSM6290, MSM6800A, MSM6801A
NAND Controller and OneNAND Controller in MSM7225, MSM7227, MSM7625, MSM7627
NAND Controller in MSM7200, MSM7200A, MSM7201A, MSM7500, MSM7500A, MSM7501A, MSM7600
NAND Controller in QSD8250, QSD8650
eMMC Controller #2 in MSM7230, MSM8255, MSM8255T
eMMC Controller #0 in S5PV310
RIFF JTAG Box Supported Chipsets and Cores for JTAG I/O Operations
Generic ARM Cores: ARM7, ARM9 (ARM920, ARM926, ARM946), ARM11, CORTEX-A8,CORTEX-A9
Qualcomm QSC Family: QSC1100, QSC1110, QSC6010, QSC6020, QSC6030, QSC6055, QSC6085, QSC6240, QSC6270
Qualcomm MSM Family: MSM6000, MSM6150, MSM6245, MSM6246, MSM6250, MSM6250A, MSM6260, MSM6275, MSM6280, MSM6280A, MSM6281, MSM6800A, MSM6801A, MSM6290, MSM7225, MSM7227, MSM7625, MSM7627, MSM7230, MSM8255, MSM8255T, MSM8260
Qualcomm QSD Family: QSD8250, QSD8650
Qualcomm ESM Family: ESM7602A
Qualcomm MDM Family: MDM6085 MDM6200, MDM6600
OMAP Family: OMAP1710, OMAP3430, OMAP3630, OMAP4430
NVIDIA Family: TEGRA2
Marvell/XScale Family: PXA270, PXA271, PXA272, PXA310, PXA312, PXA320
Samsung Processors: S5P6422, S5PV310
RIFF JTAG Box Supported GPS Devices
Daewoo DPN3500 Flash, Repair
RIFF JTAG Box Supported Mobile Phones and Communicators
ASUS P526 Flash, Repair
DELL XCD28 Flash, Repair
DELL Streak (DELL Mini 5) Flash, Repair
Lenovo LePhone 3G W100 Flash, Repair
Eten X800 Flash, Repair
HTC Desire Flash, Repair
HTC Diamond Flash, Repair
HTC Dream – Google G1 Flash, Repair
HTC HD2 LEO Flash, Repair
HTC Herald Flash, Repair
HTC Touch P3452 – HTC Elfin Flash, Repair
HTC Magic32A Flash, Repair
HTC Magic32B Flash, Repair
HTC Nexus Flash, Repair
HTC RhodiumW Flash, Repair
HTC Rhodium Touch Pro2 Flash, Repair
HTC Topaz Flash, Repair
HTC Touch HD Flash, Repair
HTC Touch2 Mega Flash, Repair
HTC Imagio/Whitestone Flash, Repair
HTC Snap – Maple 120, Maple 100 Flash, Repair
