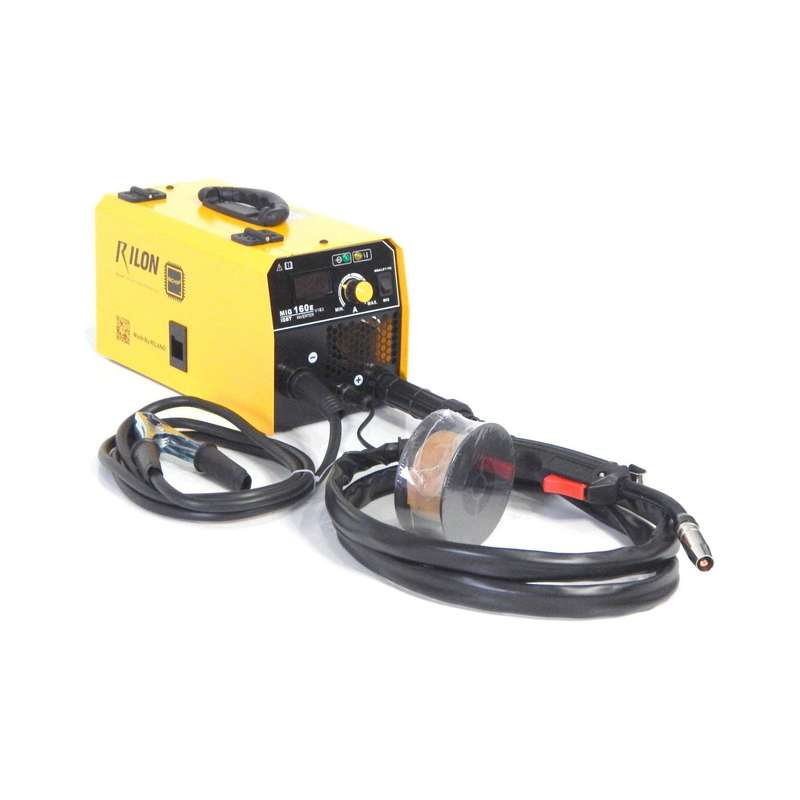

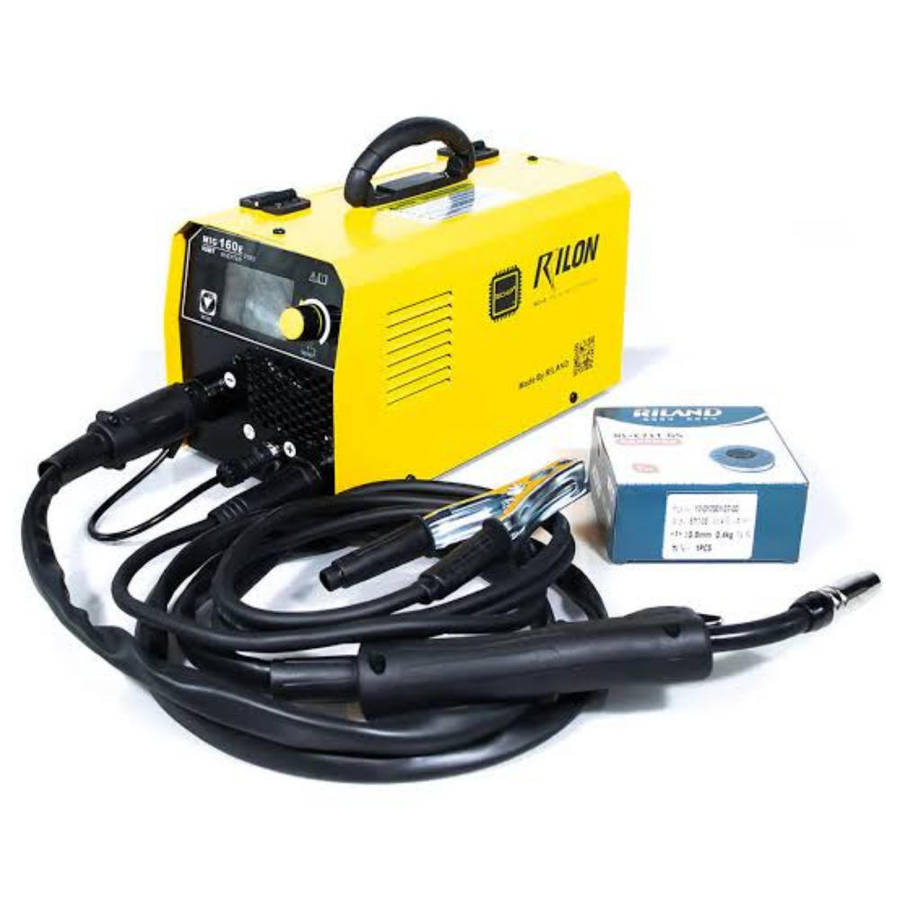

Rilon MIG160E Digital Inverter MIG/TIG/ARC Welder
The Rilon MIG160E is the perfect machine for someone looking for a MIG welder for DIY applications. It's compact size makes it easy to store and as a gasless wire compatible machine it eliminates the need for "old-fashioned" ARC welding. It is built with all modern IGBT technology and design as well as being manufactured by Riland, you can assure that the machine is a good quality unit and perfectly capable in it's intended application. It comes with a removable MIG torch as well as an earth clamp and cable and 1 roll of gasless flux core wire.
Specifications:
- Power Supply: 1 Phase 220V +- 15%
- Frequency: 50/60 Hz
- No-load Voltage: 55V
- Rated Input Current: MIG 13.8
MMA 14.5
- Output Current Range: MIG 30 - 120A
MMA 30 - 80A
- Output Voltage Range: MIG 15.5 - 20V
MMA 21.2 - 23.2 V
- Duty Cycle: MIG 20% @ 120A
MMA 20% @ 80A
- Power Factor: 0.62
- Efficiency: 82%
- Wire Feeder Type: Internal
- Welding Wire Diameter: 0.8 - 1.0mm
- Insulation Grade: F
- Protection Grade: IP21
- Weight: 3.1Kg
- Dimensions: 280x156x180 mm
What's in the Box:
1 x Rilon MIG/MMA Welder
1 x MIG Torch MB15
1 x Roll Flux Core Wire 0.8mm
1 x Earth Clamp & Cable
