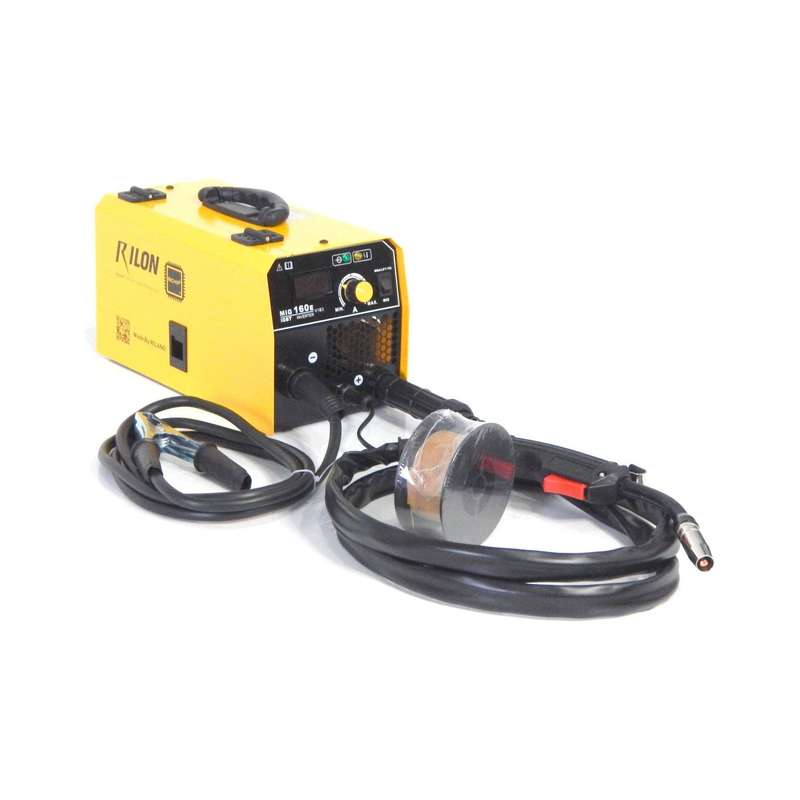

Rilon MIG 160E Digital MIG/TIG/MMA Welder

Rilon MIG160E Digital Inverter MIG/TIG/ARC Welder

The Rilon MIG160E is the perfect machine for someone looking for a MIG welder for DIY applications. It's compact size makes it easy to store and as a gasless wire compatible machine it eliminates the need for "old-fashioned" ARC welding. It is built with all modern IGBT technology and design as well as being manufactured by Riland, you can assure that the machine is a good quality unit and perfectly capable in it's intended application. It comes with a removable MIG torch as well as an earth clamp and cable and 1 roll of gasless flux core wire.

Specifications:

- Power Supply: 1 Phase 220V +- 15%

- Frequency: 50/60 Hz

- No-load Voltage: 55V

- Rated Input Current: MIG 13.8

                                    MMA 14.5

- Output Current Range: MIG 30 - 120A

                                        MMA 30 - 80A

- Output Voltage Range: MIG 15.5 - 20V

                                        MMA 21.2 - 23.2 V

- Duty Cycle: MIG 20% @ 120A

                      MMA 20% @ 80A

- Power Factor: 0.62

- Efficiency: 82%

- Wire Feeder Type: Internal

- Welding Wire Diameter: 0.8 - 1.0mm

- Insulation Grade: F

- Protection Grade: IP21

- Weight: 3.1Kg

- Dimensions: 280x156x180 mm

What's in the Box:

1 x Rilon MIG/MMA Welder

1 x MIG Torch MB15

1 x Roll Flux Core Wire 0.8mm

1 x Earth Clamp & Cable
