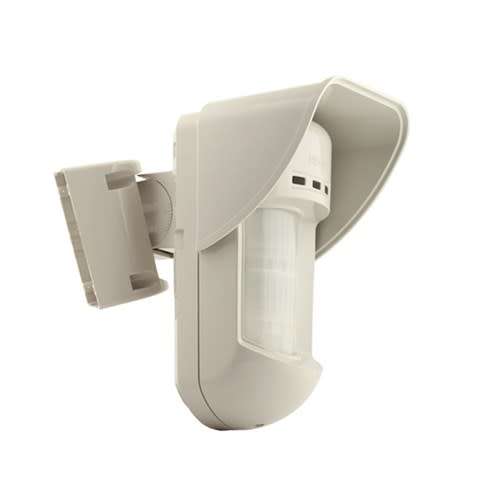

RISCO (RK315DT) WatchOUT 15m Extreme DT Detector G3 With Swivel Bracket

Description

2 MW channels + 2 PIR channels with Anti-mask technology

Wide angle coverage: 15m x 90°

Long-range coverage: 23m x 5°

Barrier coverage: 15m x 5°

Pet immunity: Animals up to 70cm

Sway Recognition technology

Digital Correlation technology

Active IR Anti-mask

Anti-Sabotage: Directional proximity alert

Microwave Anti-collision allows back-to-back or face-to-face installs

Dirty lens alert

Protective hood and IP65 environment ratingRISCO (RK315DT) WatchOUT 15m Extreme DT Detector G3 with Swivel Bracket

Providing reliable intruder detection in outdoor environments is a huge challenge that has been met above all expectations by the award winning WatchOUT detector series. Based on market demand, the improved WatchOUT eXtreme provides better 24-hour protection against vandalism, with both Active IR Anti-mask and Proximity alerts.These benefits, together with RISCO Group's unique outdoor detection technologies - Sway Recognition and Digital Correlatio- take WatchOUts performance to the extreme.

Key Features:

Coverage: Wide angle: 15m (50) 90°, Long-range: 23m (75) 5°, Barrier: 15m (50) 5°

Pet friendly up to 70cm (24)

Two microwave and two PIR channels

Microwave anti-collision allows back-to-back and face-to-face installations

Flexible mounting height 1m to 2.7m (3 to 8) and wide range of professional swivel brackets protective hood and IP65 environment rating

RISCO Bus dramatically reduces cabling, installation equipment and labor costs, while providing benefits of remote services

Opto relays for defeating large magnets

Active IR anti-mask and Proximity alerts.

Technical Specifications:

Wide angle coverage: 15m (50ft) 90°

Long-range coverage: 23m (75ft) 5°

Barrier coverage: 15m (50ft) 5°

RISCO Bus or relay installation

Detection Channels: Two microwave and two PIR channels

2 PIR channel detection method: Digital Correlation Technology

2 Microwave channels detection method: Sway Recognition Technology

Active IR Anti-mask: Detects beyond hood

Anti-Sabotage: Directional proximity alert using 2 microwave channels

Mounting height: 1m to 2.7m (33 to 810), 2.2m (72) for barrier, and Long Range lenses

Pet immunity: Animals up to 70cm (24) head height with no weight limitation

Dirty lens alert

Operating voltage : 9-16 VDC

Alarm contact: NC, 100mA, 24 VDC

Tamper contact: NC. 100mA, 24 VDC

Mask/ Fault contact: NC , 100mA, 24 VDC

Dirty lens output: 70mA open collector

Environment rating: IP 65

Operating temperature -30°C to 60°C (-22°F to 140°F)

Dimensions: 230 x 121 x 123mm (9 x 4.76 x 4.85)
